| Brand: | MITSUBISHI | Modenl Number: | AJ65SBTB32-8DT |
|---|---|---|---|
| Country Of Origin: | Japan | Program Capacity: | 8 K Steps |
| Basic Operation Processing Speed (LD Instruction): | 0.12 μs | Input: | 100 To 240 V AC |
| Output: | 5 V DC/3 A | Type: | Redundant Power Supply Module |
| Highlight: | plc power supply module,diode redundancy module |
||

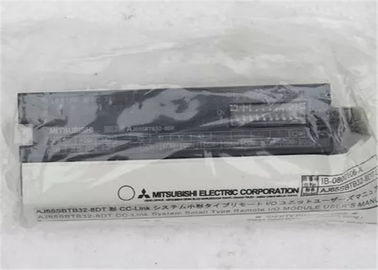

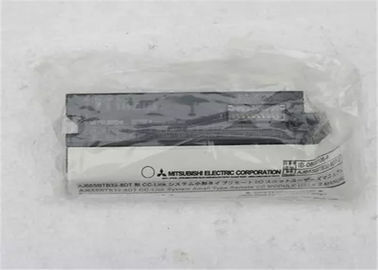

AJ65SBTB32-8DT Mitsubishi Universal model Redundant Power Supply Module
The Mitsubishi AJ65SBTB32-8DT is a terminal block type remote I/O module integral to the CC-Link network system. It features 4 DC input points and 4 transistor output points, occupying 1 station on the CC-Link network with 32 points allocated (though it uses 8 points)
. This module is designed for reliable data acquisition and control output in industrial automation environments, enabling distributed control and reducing wiring costs through network integration.
Compact and Integrated Design: Combines both DC inputs and transistor outputs in a single, compact module, saving space on the DIN rail
.
CC-Link Network Compatibility: Seamlessly integrates into the CC-Link fieldbus, allowing for decentralized control and communication with the master station
.
High-Speed Response: The input points have a response time of 1.5ms or less, and the output points have a response time of OFF->ON: 0.5ms or less and ON->OFF: 1.5ms or less (resistive load), enabling quick reaction to state changes
.
Reliable Isolation: Input and output circuits are optically isolated, enhancing noise immunity and protecting the control system from electrical disturbances on the field side
.
Easy Wiring and Maintenance: Features a spring clamp terminal block for convenient wiring
. The terminal block is designed with finger protection, preventing accidental contact with live parts, allowing for direct installation on machinery.
Built-in Protection: The output circuit includes protection functions against overload, overvoltage, and overheating, enhancing the durability and safety of the module
.
Material/Construction: The module is housed in a robust casing designed for industrial environments, typically made from durable plastics and metals. The internal circuitry utilizes printed circuit boards (PCBs) with optocouplers for isolation and transistor-based output drivers
.
Primary Uses: This module is widely used in factory automation for connecting various digital field devices to a CC-Link network. Common applications include reading signals from proximity sensors, push buttons, and limit switches (inputs), and controlling solenoids, small relays, indicator lamps, and other DC-operated devices (outputs)
. It is suitable for applications in machinery manufacturing, packaging lines, and material handling systems where distributed I/O is beneficial.
Key specifications for the Mitsubishi AJ65SBTB32-8DT module are summarized in the table below.
| Parameter Category | Specification Details |
| :--- | :--- | :--- |
| General | Model: AJ65SBTB32-8DT
|
| | Module Type: CC-Link Remote I/O Module (Terminal Block Type)
|
| | Network: CC-Link
|
| | Occupied Stations: 1 station
|
| Input Specifications | Input Points: 4 points
|
| | Input Type: DC, Sink (Positive Common)
|
| | Rated Input Voltage: DC 24V
|
| | Rated Input Current: Approx. 7mA
|
| | Operating Voltage Range: DC 19.2 ~ 26.4V (Ripple ratio within 5%)
|
| | ON Voltage/Current: 14V or more / 3.5mA or more
|
| | OFF Voltage/Current: 6V or less / 1.7mA or less
|
| | Response Time: 1.5ms or less
|
| | Isolation: Photocoupler isolation
|
| Output Specifications | Output Points: 4 points
|
| | Output Type: Transistor, Sink (NPN)
|
| | Rated Load Voltage: DC 24V
|
| | Max. Load Current: 0.5A/point, 1.2A/common
|
| | Max. Inrush Current: 1.0A for 10ms or less
|
| | ON Voltage Drop: 0.3V max. (TYP) at 0.5A
|
| | Response Time: OFF to ON: 0.5ms or less; ON to OFF: 1.5ms or less (Resistive load)
|
| | Isolation: Photocoupler isolation
|
| | Protection: Overload, Overvoltage, Overheat protection
|
| Electrical | I/O Module Supply Voltage: DC 20.4 ~ 26.4V (Ripple ratio within 5%)
|
| | I/O Module Supply Current: 45mA or less (at DC24V, all points ON)
|
| Mechanical | External Connection: Terminal block (Spring clamp type)
|
| | Weight: 0.18 kg
|
|
Attribute |
Value |
|---|---|
|
For Use With |
MELSEC Q Series |
|
Number of I/O |
2048 |
|
Manufacturer Series |
MELSEC Q |
|
Input Type |
Analogue, Digital |
|
Voltage Category |
5 V dc |
|
Output Type |
Analogue, Digital |
|
Communication Port Type |
RS232C |
|
Program Capacity |
32 kB |
|
Programming Interface |
Computer, Operating Panel |
|
Length |
89.3mm |
|
Maximum Inputs/Outputs |
8192 |
|
Number of Communication Ports |
1 |
|
Width |
27.4mm |
|
Maximum Operating Temperature |
+55°C |
|
Dimensions |
89.3 x 27.4 x 98 mm |
|
Depth |
98mm |
|
Battery Backup |
Yes |
|
Minimum Operating Temperature |
0°C |
|
Mounting Type |
DIN Rail |
|
Memory |
94 kB |
Model: QJ71FL71-B2-F01
Ver.2.00.
10BASE2
Mitsubishi QJ71FL71-B2-F01
Model: QJ71FL71-B5-F01
Ver.2.00.
10BASE5
Model: MITSUBISHI QJ71FL71-B2-F01 QJ71FL71-B5
Ver.1.00.
10BAASE5
Model: QJ71FL71-B2-F01 QJ71FL71-B2
Ver.1.00.
10BASE2
