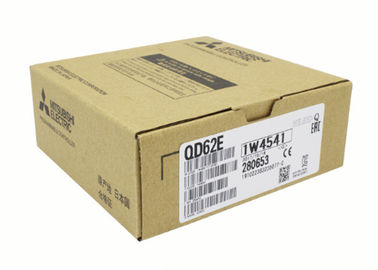

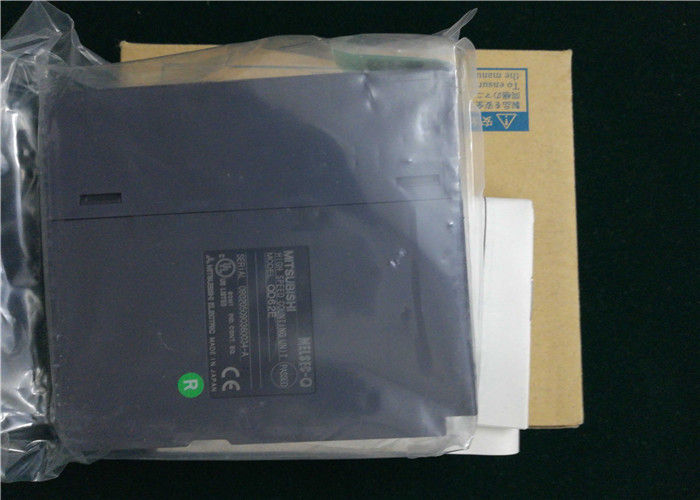

QD62E Mitsubishi Universal Model Redundant Power Supply Module 100 To 240 V AC
Product Details:
| Place of Origin: | Japan |
| Brand Name: | MITSUBISHI |
| Certification: | CE |
| Model Number: | QD62E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact |
| Packaging Details: | new and original |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 100 |
|
Detail Information |
|||
| Brand: | MITSUBISHI | Modenl Number: | QD62E |
|---|---|---|---|
| Country Of Origin: | Japan | Program Capacity: | 8 K Steps |
| Basic Operation Processing Speed (LD Instruction): | 0.12 μs | Input: | 100 To 240 V AC |
| Output: | 5 V DC/3 A | Type: | Redundant Power Supply Module |
| Highlight: | analog interface module,diode redundancy module |
||
Product Description
QD62E Mitsubishi Universal model Redundant Power Supply Module
QD62E Description
QD62E Features
- •
Dual-Channel High-Speed Counting:The module features two independent counter channels, allowing it to handle inputs from two different signal sources simultaneously (e.g., two encoders). - •
High Counting Speed:Capable of counting up to 200 kHz (200,000 pulses per second) for differential phase inputs and 500 kHz for ring/pulse-direction inputs, making it suitable for high-speed machinery. - •
Multiple Counting Modes:Supports various counting modes to suit different applications: - •
Linear Counter:Can count up to a 32-bit signed value (+/- 2,147,483,647). - •
Ring Counter:Counts within a user-defined range (from 0 to a set upper limit), ideal for applications like rotary tables.
- •
- •
Flexible Input Modes:Accepts several types of input signals, including: - •
Differential Phase (A/B Phase) Input (200 kHz):For determining direction and position with quadrature encoders. - •
Pulse/Direction Input (500 kHz):For simple forward/reverse counting. - •
Up/Down Pulse Input (500 kHz):An alternative method for bidirectional counting.
- •
- •
Hardware Comparison Output:Each channel has a hardware-based coincidence output (Y0, Y1) that activates with minimal delay when the count value matches a preset value, enabling extremely precise and high-speed control actions like outputting a mark or stopping a axis. - •
Easy Integration with GX Works2:Configuration, such as setting counting modes and preset values, is performed intuitively within the standard MELSEC programming software, simplifying setup and maintenance.
QD62E Material & Applications
- •
Materials:The module is constructed with a robust steel frame and uses a flame-retardant plastic (ABS/PC) for the casing. The electronic components are mounted on a high-quality PCB, and the terminal block is typically made of heat-resistant, durable plastic with metal contacts. - •
Primary Applications: - •
Precision Positioning Control:Controlling the position of servo or stepper motor-driven axes. - •
Length Measurement:Measuring the length of materials in wire, cable, or textile production. - •
Speed Monitoring:Monitoring the rotational speed of shafts, rollers, or turbines. - •
Automated Assembly Lines:For part presence counting, conveyor belt positioning, and robotic arm coordination.
- •
QD62E Important Parameters
性能仕様
