Product Details:
Payment & Shipping Terms:
|
| Brand: | MITSUBISHI | Modenl Number: | QJ71FL71-T-F01 |
|---|---|---|---|
| Country Of Origin: | Japan | Program Capacity: | 8 K Steps |
| Basic Operation Processing Speed (LD Instruction): | 0.12 μs | Input: | 100 To 240 V AC |
| Output: | 5 V DC/3 A | Type: | Redundant Power Supply Module |
| Highlight: | analog interface module,plc power supply module |
||

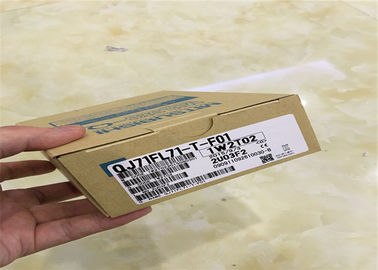

QJ71FL71-T-F01 Mitsubishi Universal model Redundant Power Supply Module
The Mitsubishi QJ71FL71-T-F01 is an interface module designed for the Q series PLC, functioning as an FL-net (OPCN-2) Ver. 2.00 interface module. It facilitates high-speed data communication via Ethernet (10BASE5/10BASE-T), enabling real-time transmission of control data synchronized with sequence scans to user programs on a PC. This supports real-time data analysis for enhancing production efficiency and equipment value
.
The QJ71FL71-T-F01 is a key component in Mitsubishi's network solutions, primarily extending the functional range of the CC-Link IE Field Basic protocol. It supports both single-mode and multi-mode fiber optic connections, which significantly extends signal transmission distance and reduces the impact of electromagnetic interference. This module is integral to building large-scale, flexible network systems within the MELSECNET/ family, which includes both PLC-to-PLC networks for communication between control and regular stations, and remote I/O networks for communication between remote master and remote I/O station
.
High-Speed Communication: Supports 100Mbps (full duplex/half duplex) for 100BASE-TX and 10Mbps (half duplex) for 10BASE-T, ensuring efficient data transfer
.
Ease of Connection: Programming tools (GX Works2, GX Developer) can connect directly to the CPU (1-to-1) via Ethernet without requiring IP address settings. Both straight-through and crossover cables can be used, simplifying setup for operators unfamiliar with network configuration
.
Real-time Data Transfer: Enables real-time transmission of control data synchronized with sequence scans to user programs on a PC, facilitating immediate data analysis to improve生产效率 (production efficiency) and equipment value
.
Large System Capacity: Supports a maximum of 254 modules per system and 254 modules across all internal address blocks. It handles substantial data volumes, with a maximum cyclic data capacity of (8k bits + 8k words) per system and per station, and a maximum message data capacity of 1024 bytes
.
Robust Network Topology: Compatible with various cable types, including fiber optic (offering long distance, noise immunity), coaxial (lower cost), and twisted-pair (lowest build cost) systems, providing flexibility in network design
.
Data Backup: Features automatic backup of critical data (programs, parameters) to battery-free flash ROM to prevent loss due to forgotten battery replacements. Important device data can also be backed up to standard ROM to prevent loss during planned stoppages
.
Material/Construction: The module is designed for industrial use, typically constructed with durable materials for reliability in harsh environments. Its electronic interface complies with IEEE802.3 standards (CSMA/CD standard)
.
Primary Uses: This module is widely used in industrial automation for applications requiring detailed control data transmission previously unachievable with conventional communication methods. It is suitable for various machinery and systems across industries like electronics equipment, pharmaceutical machinery, tobacco machinery, printing machinery, packaging machinery, textile machinery, food machinery, automotive component production lines, precision spraying, and welding
. It is particularly valued for process control stability in applications like extrusion molding machines requiring anti-overheating and anti-overcooling function.
Key specifications for the Mitsubishi QJ71FL71-T-F01 module are summarized in the table below.
|
Parameter Category |
Specification Details |
Value / Rating |
|---|---|---|
| General | Model | QJ71FL71-T-F01 |
| Brand | Mitsubishi Electric | |
| Module Type | FL-net (OPCN-2) Interface Module | |
| Protocol | UDP/IP, FA Link Protocol | |
| Communication | Transmission Standard | IEEE 802.3 (CSMA/CD) |
| Data Transfer Speed | 100BASE-TX: 100 Mbps (Full/Half Duplex) 10BASE-T: 10 Mbps (Half Duplex) |
|
| Transmission Method | Baseband | |
| Max. Segment Length | 100 m | |
| Min. Station Spacing | 2.5 m | |
| System Capacity | Max. Stations per System | 254 |
| Max. Stations (all addresses) | 254 modules | |
| Cyclic Data Capacity | Max. (8k bits + 8k words)/System Max. (8k bits + 8k words)/Station |
|
| Message Data Capacity | Max. 1024 bytes | |
| Physical | I/O Points | 32 points (I/O Allocation: Intelligent) |
| 5VDC Internal Current Consumption | 0.50 A | |
| Dimensions (H x W x D) | 98 mm x 27.4 mm x 90 mm | |
| Weight | 0.11 kg | |
| Environmental | Noise Immunity, Voltage Resistance, Insulation Resistance |
Conforms to power specifications of the installed FL-net station
|
| Software | Compatible Programming Tools |
| Attribute | Value |
|---|---|
| For Use With | MELSEC Q Series |
| Number of I/O | 2048 |
| Manufacturer Series | MELSEC Q |
| Input Type | Analogue, Digital |
| Voltage Category | 5 V dc |
| Output Type | Analogue, Digital |
| Communication Port Type | RS232C |
| Program Capacity | 32 kB |
| Programming Interface | Computer, Operating Panel |
| Length | 89.3mm |
| Maximum Inputs/Outputs | 8192 |
| Number of Communication Ports | 1 |
| Width | 27.4mm |
| Maximum Operating Temperature | +55°C |
| Dimensions | 89.3 x 27.4 x 98 mm |
| Depth | 98mm |
| Battery Backup | Yes |
| Minimum Operating Temperature | 0°C |
| Mounting Type | DIN Rail |
| Memory | 94 kB |
| Q01CPU | Q02(H)CPU | Q06HCPU |
| Q12HCPU | Q25HCPU | Q02PHCPU |
| Q06PHCPU | Q12PHCPU | Q25PHCPU |
| Q00UCPU | Q01UCPU | Q02UCPU |
| Q03UDVCPU | Q03UD(E)CPU | Q04UDVCPU |
| Q04UD(E)HCPU | Q06UDVCPU | Q06UD(E)HCPU |
| Q10UD(E)HCPU | Q13UDVCPU | Q13UD(E)HCPU |
| Q20UD(E)HCPU | Q26UDVCPU | Q26UD(E)HCPU |
| Q50UDEHCPU | Q50UDEHCPU | Q50UDEHCPU |
| Q01UCPU | Q02CPU | Q02CPU-A |
