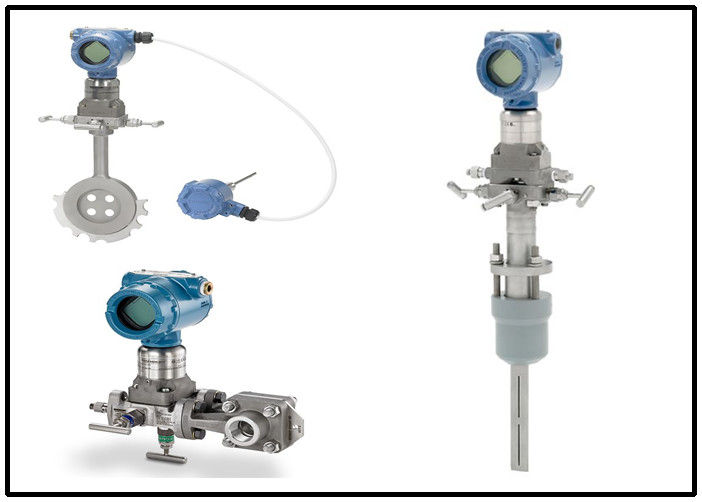

Singapore Rosemount 3051 Transmitter 3051SFA / 3051SFC / 3051SFP Flow Meter
All of Rosemount items will be ordered according to your requirments.
Introduction:
1.Rosemount™ 3051SFA Annubar™ Flow Meter
The Rosemount 3051SFA Annubar Flow Meter is a no-equal solution with a patented, averaging pitot tube that delivers superior measurement accuracy over a wide flow range. This flow meter can measure multiple variables and is engineered with an integrated thermowell for temperature measurement. Its patented T-shaped sensor is capable of obtaining measurements via a single pipe penetration while maintaining a small profile in the pipe to reduce permanent pressure loss and increase energy savings.
2.Rosemount™ 3051SFC Compact Conditioning Orifice Plate Flow Meter
The Rosemount 3051SFC Compact Conditioning Orifice Plate Flow Meter is a no-equal solution for multivariable measurement, obtaining direct variable measurements in combinations of differential pressure, static pressure and process temperature. This flow meter comes with a patented, 4-hole conditioning orifice plate for accurate measurement in turbulent flow conditions. This orifice plate also reduces pipe straight run, requiring only two pipe diameters (2D) upstream and downstream of the plate.

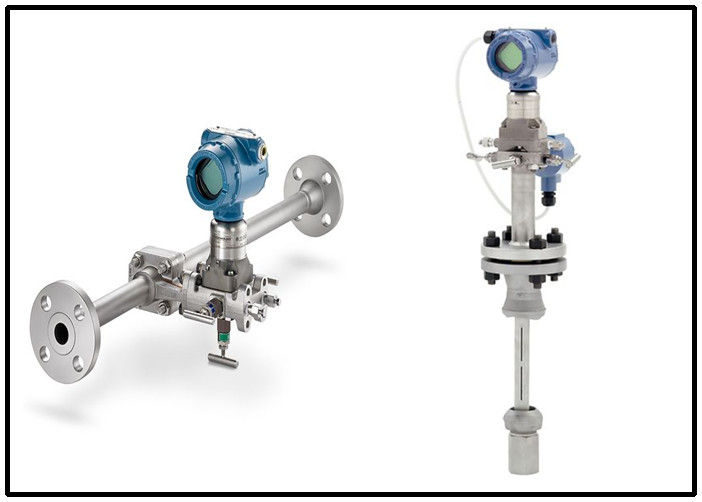

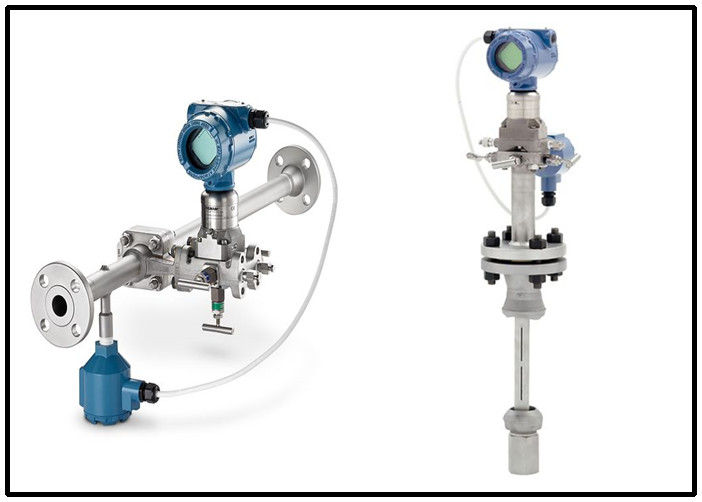

3.Rosemount™ 3051SFP Integral Orifice Flow Meter
The Rosemount 3051SFP Integral Orifice Flow Meter is a no-equal multivariable device customized with an integral orifice primary element. This meter run assembly provides easy installation and is engineered to facilitate highly accurate flow measurement in small line sizes (0.5 - 1.5 in. or 15 - 40 mm). This device is also engineered with built-in flow calculations for fully compensated mass flow measurements.
Specifications:
| Rangedown | Up to 200:1 (14:1 flow turndown) |
|
Communication Protocol |
4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus |
| Measurement Range | Up to 1000 inH2O (2,48 bar) differential, Up to 3626 psia (250,00 bar) absolute, Up to 3626 psig (250,00 bar) gage |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST |
| Line Size | 2 to 96 in. (50 to 2440 mm) |
| Output | Differential pressure, static pressure, process temperature, scaled variable, mass flow, volumetric flow, energy flow |
| Process Wetted Material | 316 SST, Alloy C-276 |
| Diagnostics | Basic Diagnostics, Power Advisory Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications |
Ordering Type of 3051 Series:
1. Rosemount 3051SFA Annubar Flow Meter
2. Rosemount 3051SFC Compact Conditioning Orifice Plate Flow Meter
3. Rosemount 3051SFP Integral Orifice Flow Meter
3051 product visual identification
How can I identify a new Revision 8 3051?
Housing, electronics board, display and cover changes
A. New electronics
B. New electronics label
C. New LCD display connector location
D. New 2-line 8 character display
E. Standard dept cover
F. Full wrap-around tag
3051S Drawings:
If you need the complete drawings or datasheet,pls contact us.
Certifications:
1.Certificate of Origin
2.Calibration Certificate
3.Material Traceability Certification
