170INT11000 TSX Modicon Momentum PLC Interbus Communication Adaptor 500 Kbit/S

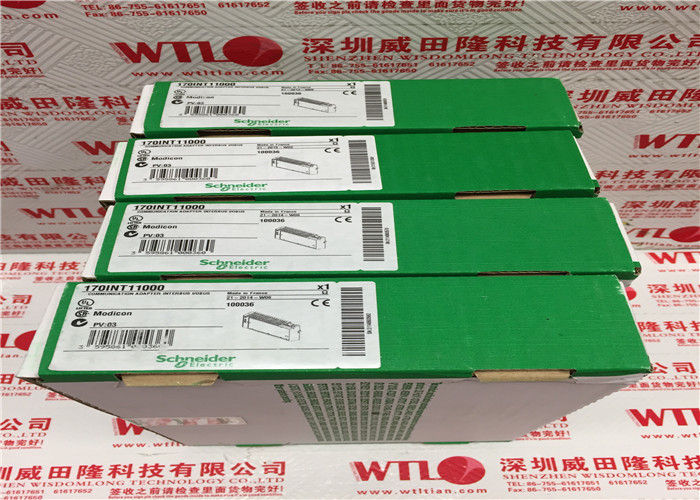

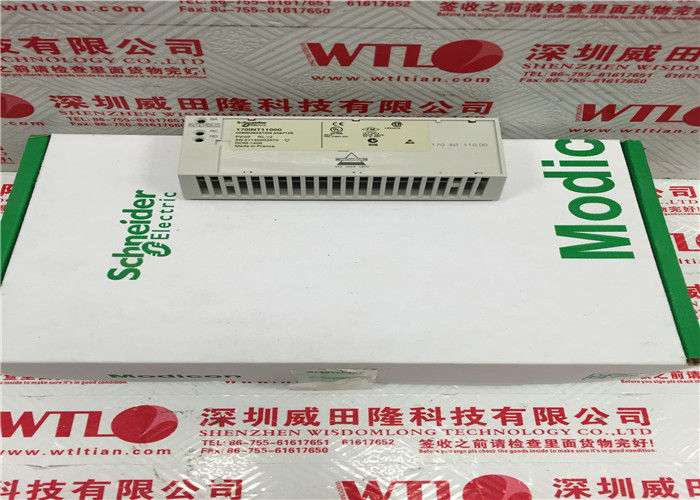

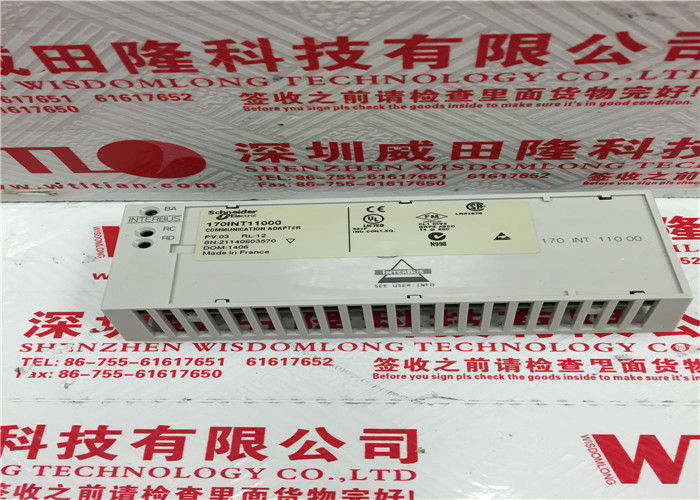

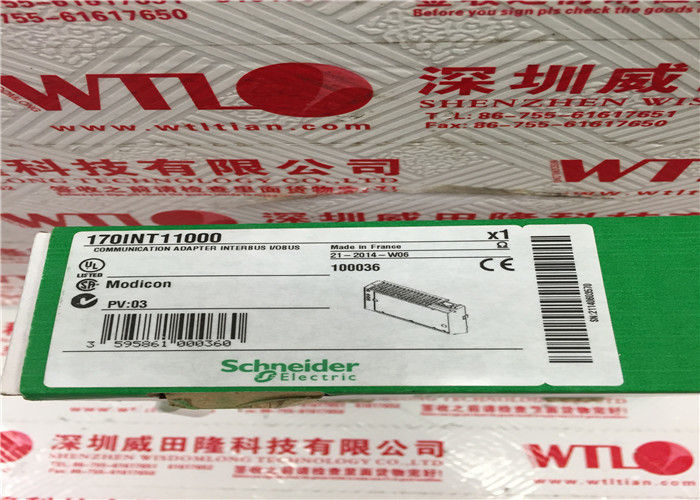

Large Image :  170INT11000 TSX Modicon Momentum PLC Interbus Communication Adaptor 500 Kbit/S

Product Details:

Place of Origin: France
Brand Name: Schneider
Certification: CE
Model Number: 170INT11000

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: 1-1000USD/pc
Packaging Details: new original package
Delivery Time: 2-3 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10 pcs/month
Detailed Product Description
Range Of Product: Modicon Quantum Automation Platform Product Or Component Type: Interbus Communication Adaptor
Communication Port Protocol: Interbus Generation SUPI 2 Transmission Rate: 500 Kbit/s
Transmission Support Medium: Twisted Pair Model: 170INT11000

Modicon 170INT11000 TSX Momentum Communication Adapter Interbus I/O Bus NEW









Quick details:



  • SCHNEIDER ELECTRIC
  • 170-INT-110-00
  • 170INT11000
  • ADAPTER
  • COMMUNICATION INTERBUS DEVICE NET
  • AVAILABLE
  • New one with one year warranty and used one with six months warranty
  • Weight: 0.43 lbs





Alternate Part Number:



  • SCHNEIDER ELECTRIC 170INT11000
  • SCHNEIDER ELECTRIC 30804





More Info on the 170INT11000:





Modicon Momentum - Interbus Communication Adaptor - Twisted Pair

See Modicon Momentum 170 INT PDF below for product info.

Repair for Schneider Automation Modicon PLCs and Momentum modules including the 170INT11000 is available. MRO is committed to customer satisfaction!









Complementary:



topology
Ring

number of devices per segment
0...254

cable distance between devices
12800 m
400 m between two modules

fail state
Fail safe

control parameter
CRC-16

supply
From I/O base

marking
CE

local signalling
1 LED green bus enable (BA)
1 LED green remote bus check (RC)
1 LED green remote bus disabled (RD)

electrical connection
2 connectors SUB-D 9 for connecting Interbus

module format
Standard





Technical FAQs:





  • What does the Red RD LED mean on my TSX Momentum 170INT11000 I/O BUS module?
  •


    Before the CPU starts the remote bus it will compare the I/O map to what is physically connected. If there is a difference the I/O will be disabled and the Red RD LED illuminated on all of the I/O-bus modules. This will also occur if any of the cables are broken, disconnected, or if a base fails.





  • Is the TSX Momentum 171CCC76010 CPU compatible with the 170INT11000 Interbus Communication Adapters?
  •


    Yes. the TSX Momentum 171CCC76010 CPU is compatible with the 170INT11000 Interbus Communication Adapter.





  • What is the replacement for the 170BAM09600 TIO module?
  •


    You need the 170AMM09000 Comm. Adapter Part Number 170INT11000 this will give you the 4 inputs and 2 outputs.





  • What is required to assemble two LC1D80 int a reversing pair?
  •


    Reversing Power Conductors, line and load side - LA9D8069. For DC controlled devices: Mechanical Interlock with Electrical Interlocks - LA9D8002 or Mechanical Interlock without Electrical Interlocks - LA9D80978.
