140CPU65160 NEW Modicon Quantum CPU Processor With 4 An RJ45 Connector

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

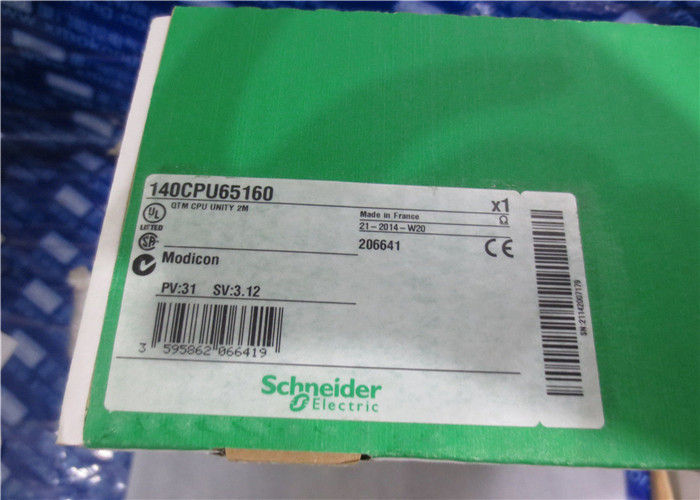

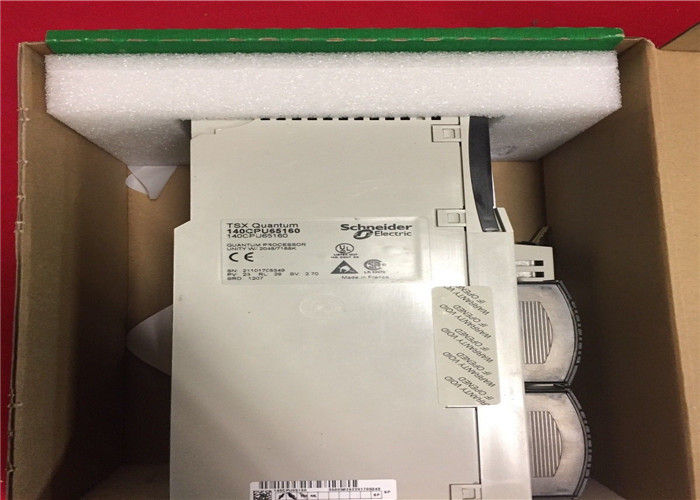

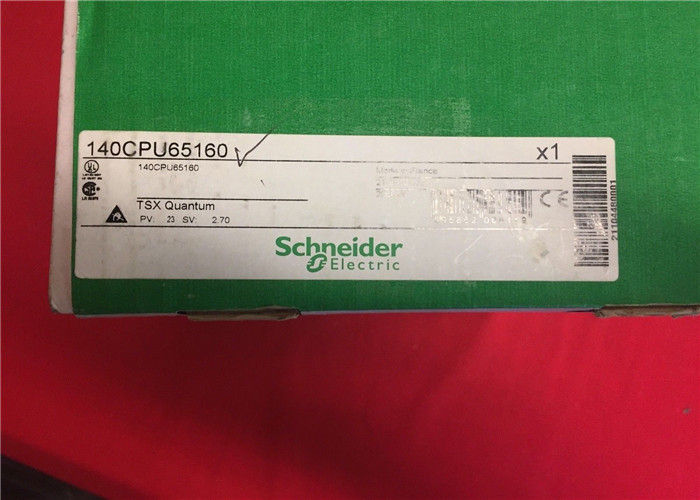

140CPU65160 NEW Modicon Quantum CPU Processor With 4 An RJ45 Connector

Large Image :  140CPU65160 NEW Modicon Quantum CPU Processor With 4 An RJ45 Connector

Product Details:

Place of Origin: France
Brand Name: Schneider
Certification: CE
Model Number: 140CPU65160

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: 1-1000USD/pc
Packaging Details: new original package
Delivery Time: 2-3 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10 pcs/month
Detailed Product Description
Range Of Product: Modicon Quantum Automation Platform Country Of Origin: France
PN: 140CPU65160 Contidion: Brand New
Brand: Schneider Weight: 2.00lbs
High Light:

modicon quantum processor

,

modicon quantum cpu

Schneider 140CPU65160 NEW Modicon Quantum CPU 140-CPU-651-60









Quick details:





  • SCHNEIDER ELECTRIC
  • MODICON
  • 140CPU65160
  • PROCESSOR MODULE QUANTUM OBSOLETE 12-01-18
  • AVAILABLE
  • New one with one year warranty and used one with six months warranty
  • Weight: 2.00lbs









More Info on the 140CPU65160:





Unity Processor Modicon Quantum - 1024 Kb - 266Mhz

Quantum | 140CPU65160 | Modicon | 140 CPU 651 60 | Processor UNITY W/ 2048/7168K Ethernet

The 140 CPU 651 50 , 140 CPU 651 60 and 140 CPU 652 60 processors have the following on the front panel: 4 An RJ45 connector for the connection to the Modbus bus. 5 A type B female USB connector for connecting the programming PC 6 A 9-way female SUB-D connector for the connection to the Modbus Plus network 7 Two slots for PCMCIA memory extension cards 8 Two LEDs marked COM and ERR 9 An RJ45 connector for the connection to the Ethernet network.













Specifications:







Manufacturer: Modicon Quantum
Series: Quantum CPUs
Weight: 3 lb
Product or component: Unity processor
Clock frequency: 266 MHz
Number of slots: 10
  16
  2
  4
  6
Number of racks: 2 - local rack(s)
Number of distributed I/O station: 63 station(s) - 1 rack(s) - 3 distributed network(s)
Number of remote I/O station: 31 - 2 remote rack(s)
Discrete I/O number: 8000 inputs, 8000 outputs - distributed - per network
  31744 inputs, 31744 outputs - remote
  Unlimited (26 slots max) - local
Analogue I/O number: Unlimited (26 slots max) - local
  500 inputs, 500 outputs - distributed - per network
  1984 inputs,1984 outputs - remote
Application specific I/O: Accurate time stamping
  Counter
  High-speed interrupt inputs
  Serial link
Number of optional modules: 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections: Unlimited (AS-Interface) - local
  6 (Profibus DP) - local
  6 (Modbus Plus) - local
  6 (Ethernet TCP/IP) - local
  4 (AS-Interface) - remote
  2 (AS-Interface) - distributed
  1 (USB)
  1 (Modbus) - RS232/485 Modbus/ASCII
Integrated connection type: 1 Ethernet TCP/IP
  1 Modbus
  1 Modbus Plus
  1 USB
Checks: Process control
Memory description: Internal RAM 1024 kB
  Expandable 8 MB - file storage with PCMCIA card
  Expandable 7168 kB - program with PCMCIA card
Switch function: Key switch memory port on/off
Application structure: 4 auxiliary tasks
  32 timer interrupt tasks
  128 interrupt tasks
  128 I/O interrupt tasks
  1 periodic fast task
  1 cyclic/periodic master task
Execution time per instruction: 0.4...0.5 µs floating points
  0.0525...0.075 µs Boolean
  0.045...0.06 µs on word
  0.045...0.06 µs on fixed-point arithmetic
Execution time for 1 K instruction: 10.28 100 % Boolean
  10.07 65 % Boolean and 35 % numerical
System overhead: 1 ms - master task
  0.2 ms - fast task
Bus current requirement: 2760 mA
Local signalling: 1 LED red for Ethernet collision
  1 LED green for Ethernet activity (COM)
Electrical connection: 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network
  1 connector, connector type: RJ45 for connecting Modbus bus
  1 connector, connector type: RJ45 for connecting Ethernet network
  1 connector, connector type: MT-RJ (fiber optic) for interconnecting primary and secondary PLCs (hot standby architecture)











ConneXium™ managed switches (continued) Predefined configuration files (continued) Example topology with predefined configuration files C5, C1 and C3 (1) A common use of this preconfiguration is for interfacing a copper link with a fiber optic link on the primary ring or interfacing a fiber optic link with a copper link. This type of architecture makes it possible to have Ethernet DIO or Ethernet RIO drops some distance away from the PLC. The switch preconfiguration also enables Ethernet RIO and/or several Ethernet DIO device clouds to be connected to a secondary ring.









1  Primary ring, copper/fiber optic medium

2  Ethernet DIO secondary ring, copper medium only

3  Ethernet head adaptor 140CRP31200 installed in the Quantum™ rack.

4  ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)

5  ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)

6  ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)

7  Modicon™ STB Ethernet DIO (3) (4)

8  Connection to Ethernet DIO device cloud, copper medium only

9  Ethernet DIO device cloud (3)

10  Ethernet communication module 140NOE771

11  Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
