High Performance Control Circuit Board 51304156-100 REV A Compact Design MEASUREX

Contorl Circuit Board HONEYWELL 51304156-100 REV A 51304156100 MEASUREX

Course Topics

• Identify LCN and UCN hardware and their functions.

• Navigate and manipulate operational and system displays including the Group, Detail, Alarm Summary,

• Console, System and UCN Status displays.

• Manipulate LCN formatted files on the History Module through the Command Processor.

• Create a Network Configuration File (NCF) to establish fundamental system definitions.

• Initialize a History Module (HM) to establish it as the system file server and historical data collector.

• Configure a UCN consisting of a NIM and an HPM.

• Operate and build HPM regulatory control and regulatory process variable type points, including cascade control loops.

• Create a configurable US keyboard button file.

• Define parameters for history collection on the History Module.

• Create a simple US graphic.

• Define the Area Database to customize the operations environment including assigning units for operational control, building group displays, defining graphic invocation search paths and creating logs, journals and reports.

• Optionally utilize system support and administration tools including Command Files, Exception Build files, the Documentation Tool, and Virtual Printers.



QUICK DETAILS

1. Brand :Honwell
2. Model : 51304156-100
3. Place of Origin : USA


DESCRIPTION

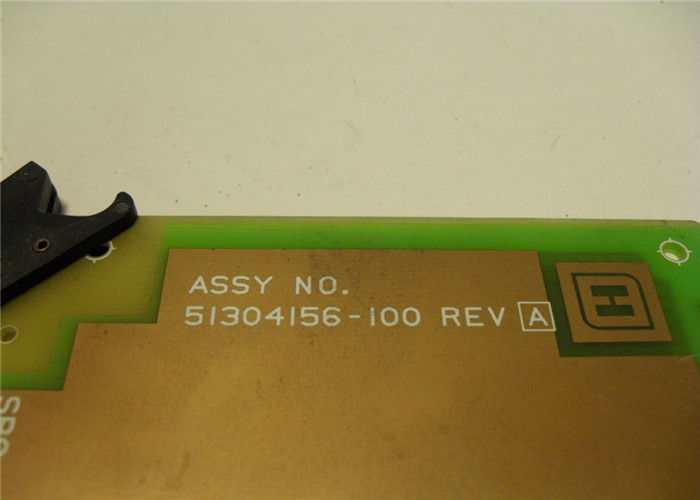

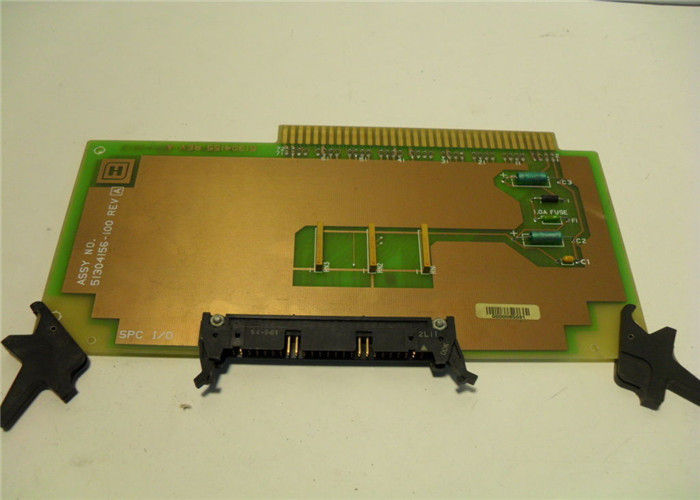

• Contorl Circuit  Board
• PC BOARD
• MEASUREX

Additional Training

To increase your knowledge and skills, there are additional courses available from Automation College.

Control Functions

The Advanced Process Manager Module (APMM) provides a variety of control tools that can be customized to address a wide range of process automation needs.

Functions, from I/O scanning through regulatory and logic control to more advanced control, can be easily implemented through the APM. Included are a sophisticated regulatory control package, fully integrated interlock logic functions, and an advanced process engineer-oriented Control Language (CL/APM).

CL/APM is an enhanced version of the Control Language implemented by Honeywell in the Process Manager. This language facility includes the sequence structures needed to handle batch or hybrid applications as well as the computational capability needed for some continuous control tasks.
Key to the power of this control capability is the sharing of the data within the APM, and sharing of data from other devices on theUniversal Control Network
