Product Details:
Payment & Shipping Terms:
|
| Product Name: | Redundant Processor Units | Order No.: | 3BSE050199R6 / 3BSE081637R1 |
|---|---|---|---|
| Model: | PM866K02 / PM866AK02 | Category: | S800 I/O |
| Weight: | 2.855 Kg | CPU Clock Frequency: | 133 MHz |
| Memory Size: | 64 MB | Country Of Origin: | China (CN) |
| High Light: | plc i o modules,digital input output module |
||
ABB Redundant Processor Units 3BSE050199R6 PM866K02 S800 I/O Module
General Information I
Product ID:
3BSE050199R6 / 3BSE081637R1
ABB Type Designation:
PM866K02 / PM866AK02
Catalog Description:
PM866K02 / PM866AK02 Redundant Processor Units
General Information II
| Article number | 3BSE081637R1 (PM866AK02) |
| Redundancy | Yes |
| High Integrity | No |
| Clock Frequency | 133 MHz |
| Performance, 1000 boolean operations | 0,09 ms |
| Performance | 0,09 ms |
| Memory | 64 MB |
| RAM available for application | 51.389 MB |
| Flash memory for storage | Yes |
Introduction
The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.
The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O Module).
Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.

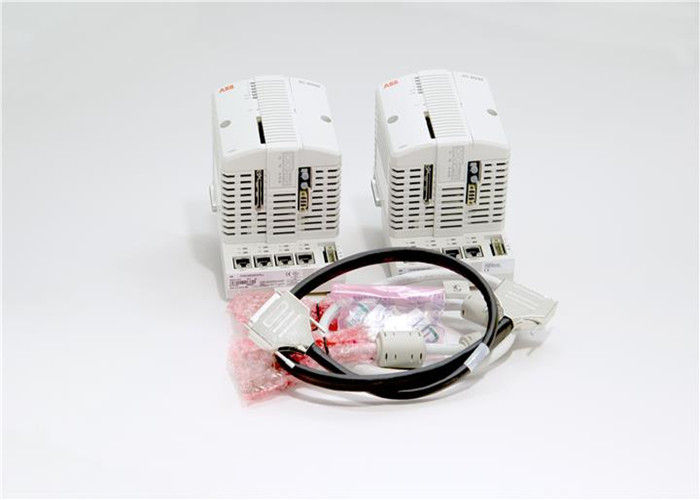

Digital input output Module PM866AK02 / PM866K02 Package including:
2 pcs PM866A, CPU
2 pcs TP830, Baseplate, width =115mm
2 pcs TB807, ModuleBus terminator
1 pcs TK850, CEX-bus expansion cable
1 pcs TB851, RCU-Link cable
2 pcs Battery for memory backup (4943013-6) 1 for each CPU
Features and benefits
Some models of S800 I/O Module:
1. Cards 16 inputs, digital
DI801
DI810/TU812
DI811/TU812
DI814/TU812
DI830/TU812
DI831/TU812
DI840/TU812
DI880/TU812
2. Cards 16 outputs, digital
DO801
DO810/TU812
DO814/TU812
DO840/TU812
DO880/TU812
3. Cards 8 inputs, digital
DI802
DI803
DI820
DI821
DI885/TU812
4. Cards 8 outputs, digital
DO802
DO815
DO820
DO821
5. Cards 8 inputs, analog
AI801
AI810/TU812
AI830/TU812
AI835/TU812
AI845/TU812
6. Cards 8 outputs, analog
AO801
AO810/TU812
AO845/TU812
7. Cards 4 inputs, analog
AI820/TU812
8. Cards 4 outputs, analog
AO820/TU812
9. Counter cards
DP820/TU812
DP840/TU812

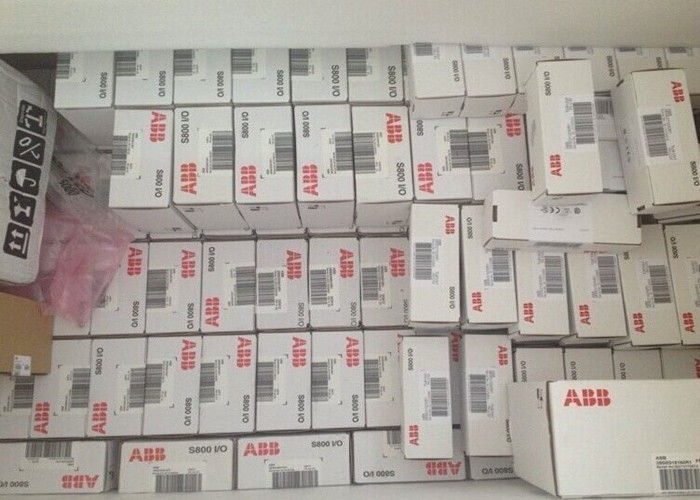

Some ABB items sold by WTL:
