100-240V HMI Touch Screen Panel AB Panelview Plus 600 2711P-B6M20A8

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

100-240V HMI Touch Screen Panel AB Panelview Plus 600 2711P-B6M20A8

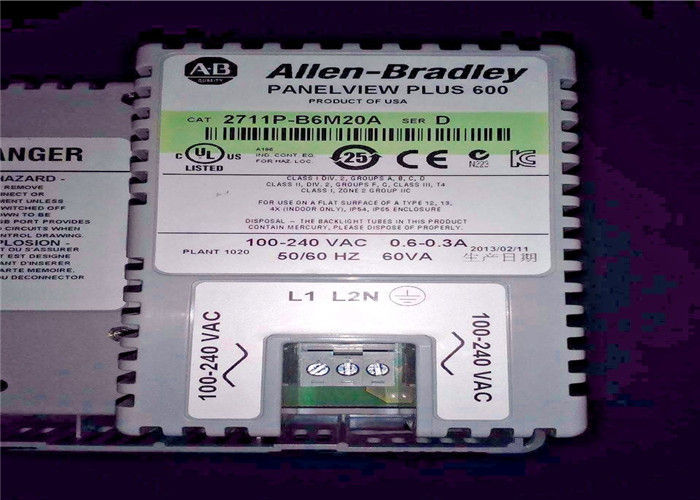

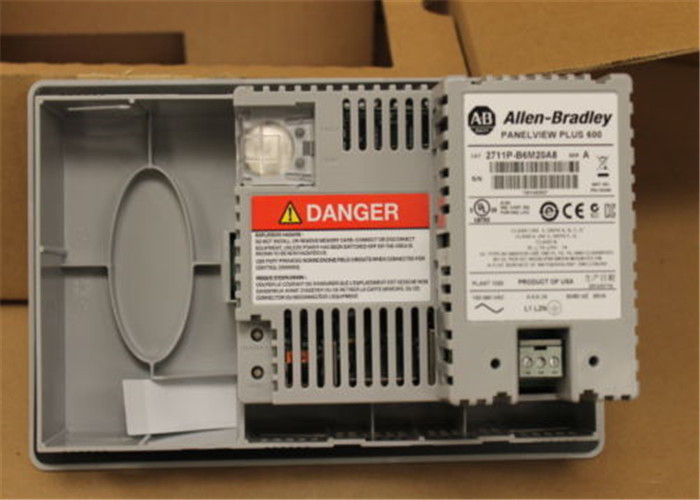

Large Image :  100-240V HMI Touch Screen Panel AB Panelview Plus 600 2711P-B6M20A8

Product Details:

Place of Origin: USA
Brand Name: Allen Bradley (AB)
Model Number: 2711P-B6M20A8

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 2-3 work days
Payment Terms: TT West Union
Supply Ability: 100
Detailed Product Description
Brand: Honeywell Model: 2711P-B6M20A8
Product Name: Panelview Series: 2711
SER: A PLUS: 600
Weight: 6lb Input: 100-240V
High Light:

hmi touch panel

,

industrial hmi panels

HMI Touch Screen AB Allen Bradley 2711P-B6M20A8 PanelView PLUS 600 SER A




2711P-B6M20A8 PARAMETER

The current Allen Bradley Panelview 6 Plus 2711P-B6M20A8 is an HMI that can allows the user to interact with their machine. The Panelview interface has a 5.7 in. Monochrome Display.This unit is powered using 100-240 VAC power and has internal memory of 256 MB-RAM. Weight and dimensions are 6 lbs. and 14 x 11 x 8 in. The most common Series are Series A and Series B. This device is an open industrial network that supports real time I/O messaging, as well as message exchange. This port can work with application transfers and printing as well. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required.
The Panelview Plus 6 Graphic Terminals makes it possible to allows users to monitor, manage, and display application status informationThese terminals offer the open-platform flexibility of the Windows CE operating system and the compatibility of the FactoryTalk View Studio Machine Edition software. The PanelView Plus 6 terminals use modular modules that allows for flexible configuration, installation, and upgrades. The processor speed increased from 350 MHz to 1 GHz. The screen transition rate approximately 70% faster. The system memory increased from 64MB RAM to 256MB RAM and flash storage space increased from 64MB to 512MB. The illumination of backlight displays has increased. Also, there is greater connectivity to a variety of external hardware such as printers, mice, and keyboards.
The terminals can be set up to run an open or closed desktop environment, open systems can launch Windows Explorer desk top on start up. A closed system launches a factory talk edition on start up.
It should be noted to plan for proper spacing around the terminal, inside enclose, for ventitolation anc connections. Temperature around the terminal should be 32 degrees fahreheit to 131 degrees fahrenheit.



QUICK DETAILS

  1. Brand :Allen Bradley (AB)
  2. Model :2711P-B6M20A8
  3. Place of Origin : USA


DESCRIPTION

  • Touch Display  Screen
  • MONITOR
  • OPERATOR INTERFACE PANEL



SPECIFITIONS

PART NUMBER: 2711P-B6M20A8
PRODUCT LINE: Panelview 6 Plus
DISPLAY SIZE: 5.7 in.
DISPLAY COLOR: Monochrome
INPUT TYPE: Keypad/Touchscreen
COMMUNICATION: Ethernet and RS-232
INPUT POWER: 100-240 VAC
SOFTWARE: FactoryTalk View Machine Edition
MEMORY: 256 MB RAM
BACKLIGHT: Non-replaceable
COMMUNICATION CABLE: 2711-NC14
SHIPPING WEIGHT: 6 lbs.
SHIPPING DIMENSIONS: 14 x 11 x 8 in
SERIES: Series A and Series B
FIRMWARE: 7.00-8.10






PanelView Plus 6 terminals are shipped with support for a large selection of Canon, Epson, Hewlett-Packard, and Brother Printers.
