| Place Of Origin: | USA | Brand: | Honeywell |
|---|---|---|---|

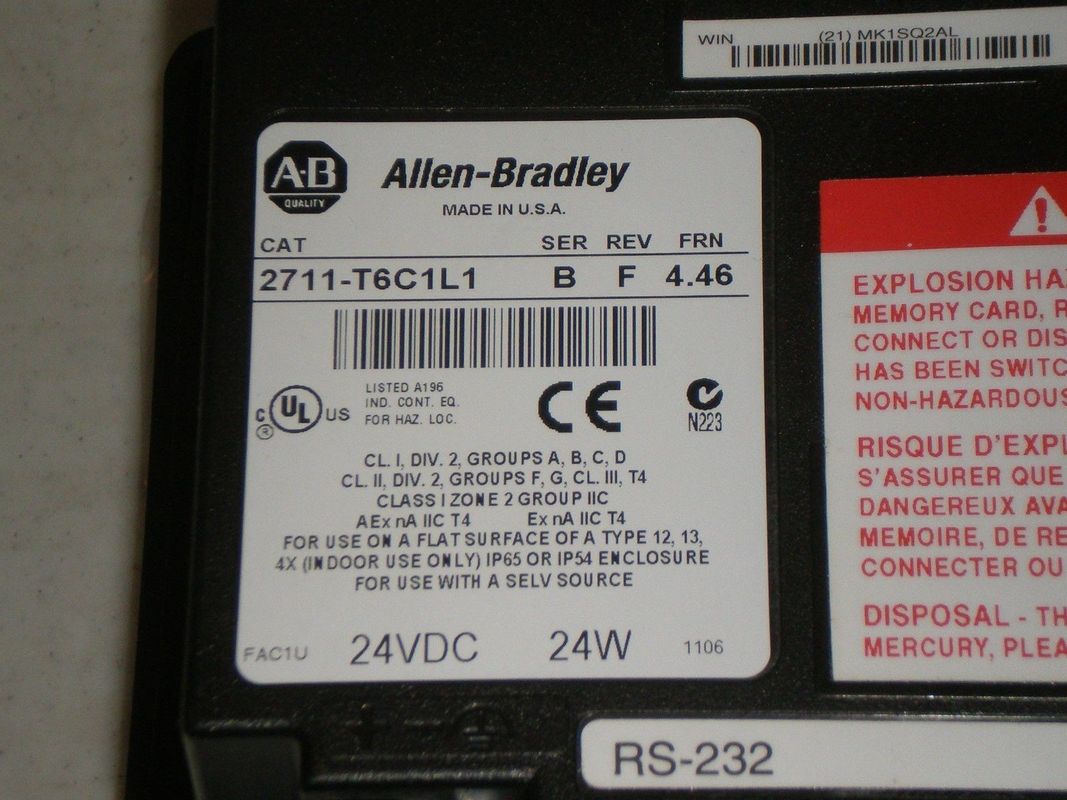

| Model: | 2711-T6C1L1 | Product Name: | Panelview |
| Series: | 2711 | SER: | B |
| PLUS: | 600 | Touch Cells: | 128 |
| High Light: | hmi display touch screen,hmi touch panel |
||

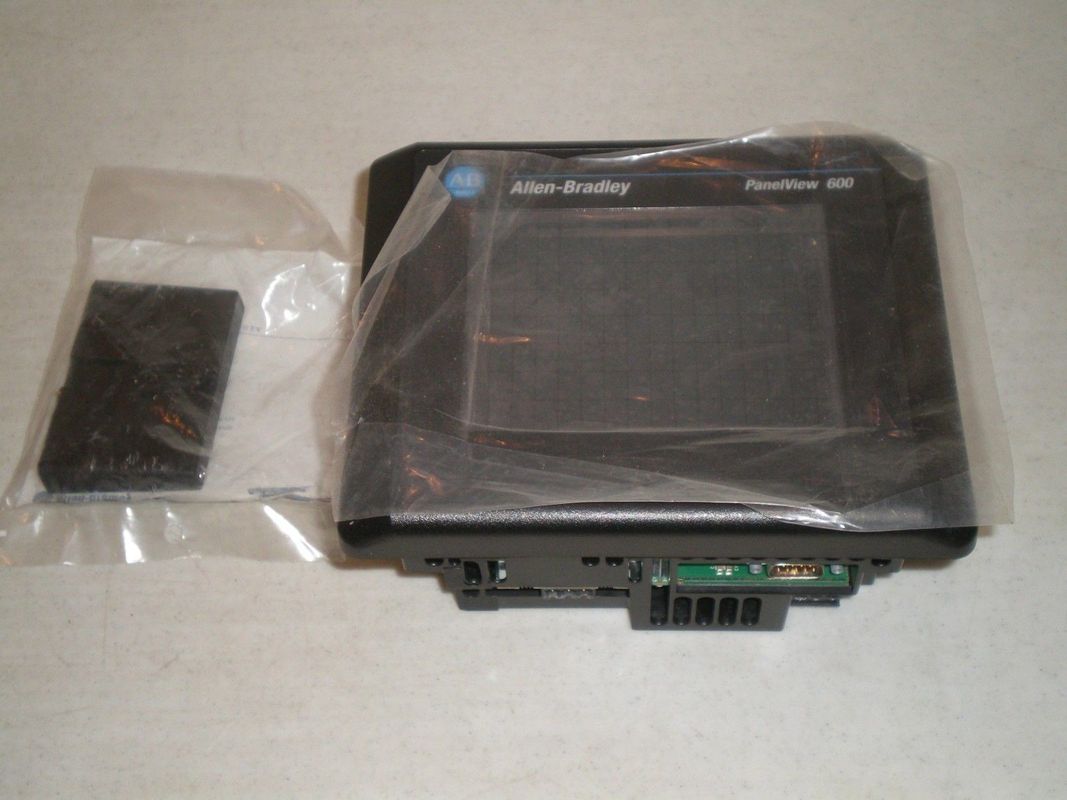

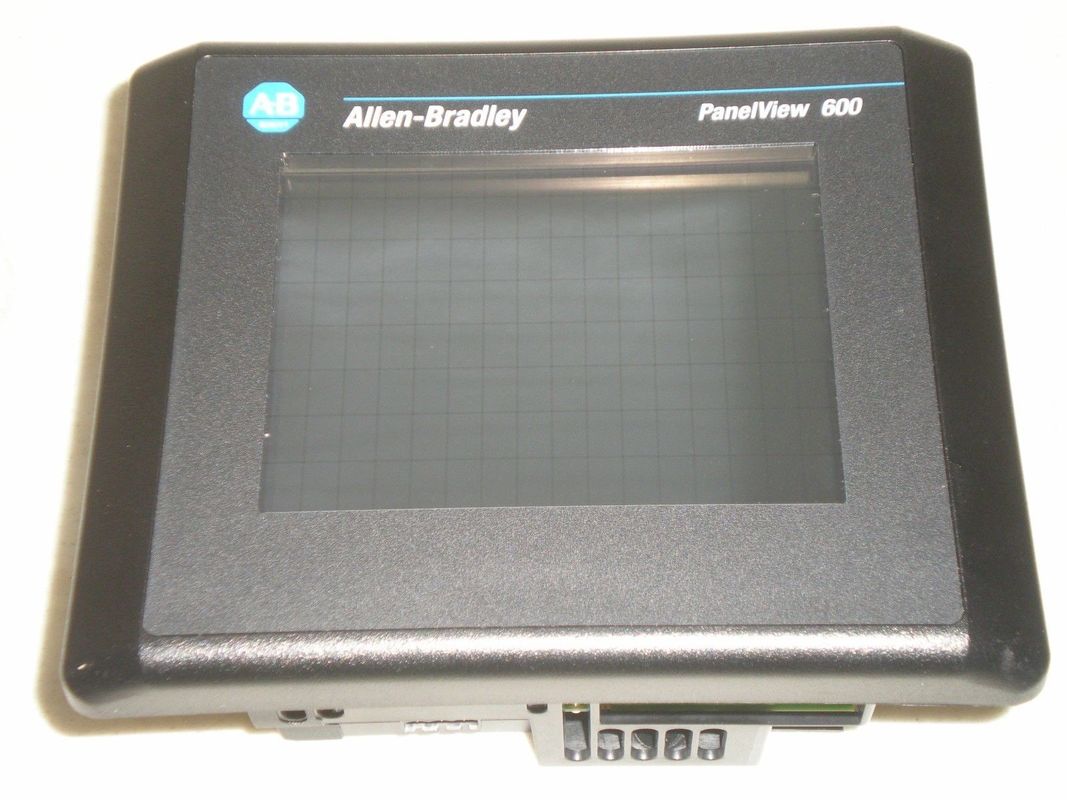

HMI Touch Screen AB Allen Bradley 2711-T6C1L1 Touchscreen Display Module Panelview 600 Ser B
Numeric Entry Keys
0…9 - Enters numeric values
. . Enters a decimal point. - Enters a negative value
. ←Clears entered digits or cancels the scratchpad.
+ Stores an entered value
Keypad Terminal Display
On keypad terminals, initiate the function of a displayed object, such as an ON or OFF push button, by pressing a function key (F1...F10).
Touch Screen Terminal Display
On keypad and touch screen terminals, initiate the function of a displayed object, such as an ON or OFF push button, by touching the screen object. Each interactive screen object occupies one or more of 128 cells.
On touch screen and keypad terminals, you can initiate functions, by using the function keys and/or touch screen objects.
Touch Cells (Touch Screen terminal)
The 128 touch cells (16 columns x 8 rows) let you initiate functions by touching the screen. Interactive screen objects are aligned with touch cells when the application is created.
QUICK DETAILS
DESCRIPTION
SPECIFITIONS
Terminal Type:Color
Interface Type:Touchscreen
Display Type: TFT
Display Size:320 X 240 Pixels (4.54 X 3.4 Inch)
Backlight:Field Replaceable
Touch Cells:128
Application Memory:240K Flash

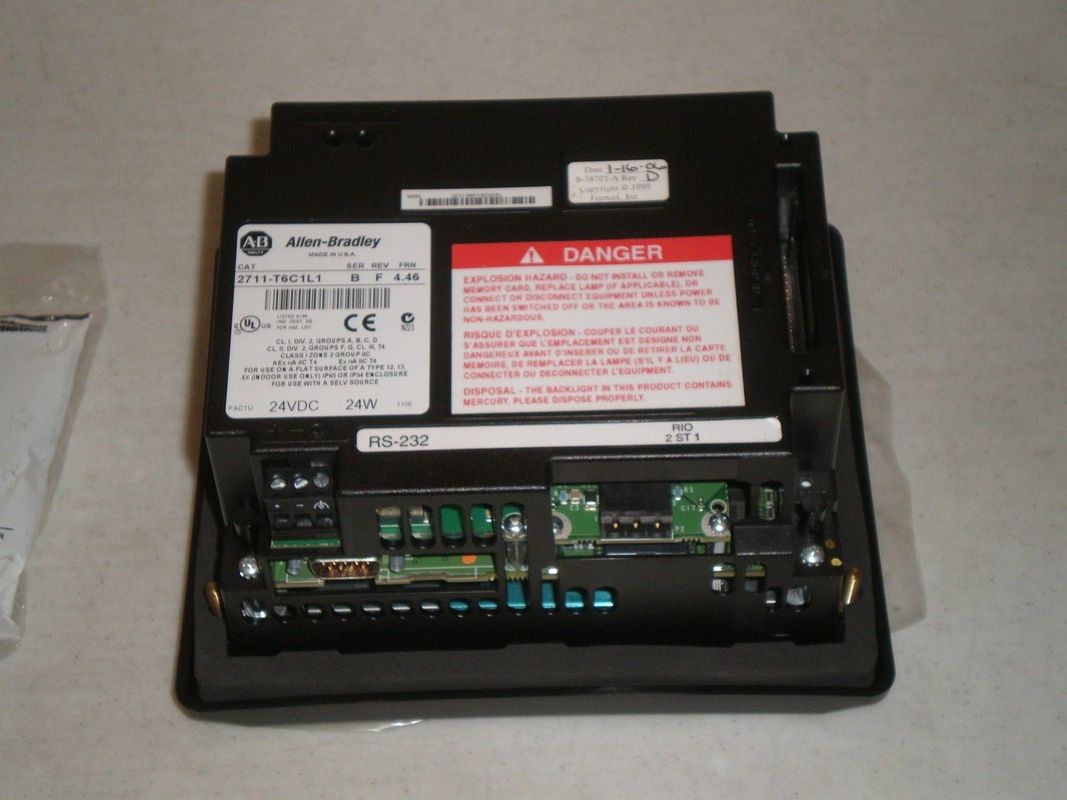

Communication Ports:Remote I/O, RS-232(printer)
Power Requirement:24 VDC
Manufacturer Series: PanelView 600
Function Keys (F1…F10)
Use the function keys on keypad terminals to initiate functions on the terminal display. These keys may have custom legends.
On the keypad & touch screen terminals, you can initiate functions by using the function keys and/or touch screen objects.
Cursor Keys
Use the cursor keys to move the cursor in displayed lists, to select a numeric entry object, or to enter configuration mode.
PanelView 600 Color Terminals
PanelView 600 Terminal Features
This section defines features of the PanelView 600 terminals
PanelView 600 Terminal Features (front)
| 2711P-T6C3 | 2711P-T6C5A | 2711P-T6C5D |
| 2711P-T6C8A | 2711P-T6C8D | 2711P-T6M1A |
| 2711P-T6M1D | 2711P-T6M20A | 2711P-T6M20D |
| 2711P-T6M3A | 2711P-T6M3D | 2711P-T6M5A |
| 2711P-T6M5D | 2711P-T6M8A | 2711P-T6M8D |
| 2711P-B7C15A1 | 2711P-B7C15A2 | 2711P-B7C15B1 |
| 2711P-B7C15B2 | 2711P-B7C15D1 | 2711P-B7C15D2 |
| 2711P-B7C4A1 | 2711P-B7C4A2 | 2711P-B7C4B1 |
| 2711P-B7C4B2 | 2711P-B7C4D1 | 2711P-B7C4D2 |
| 2711P-B7C6A1 | 2711P-B7C6A2 | 2711P-B7C6B1 |
