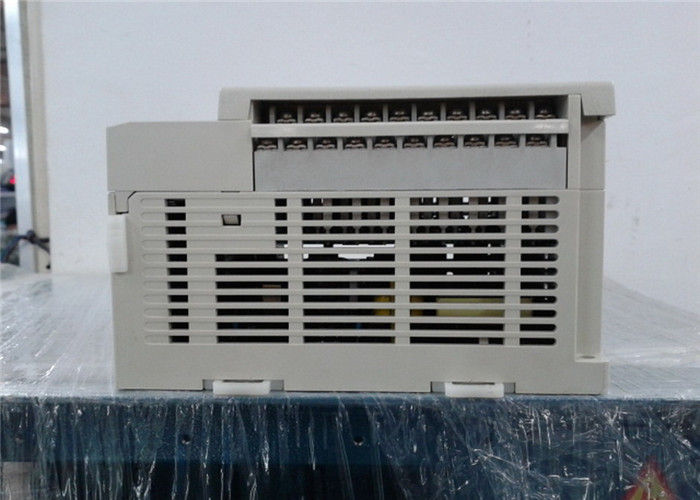

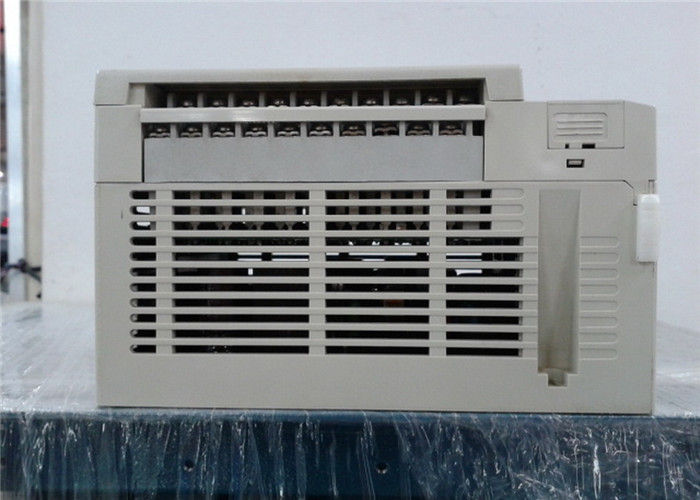

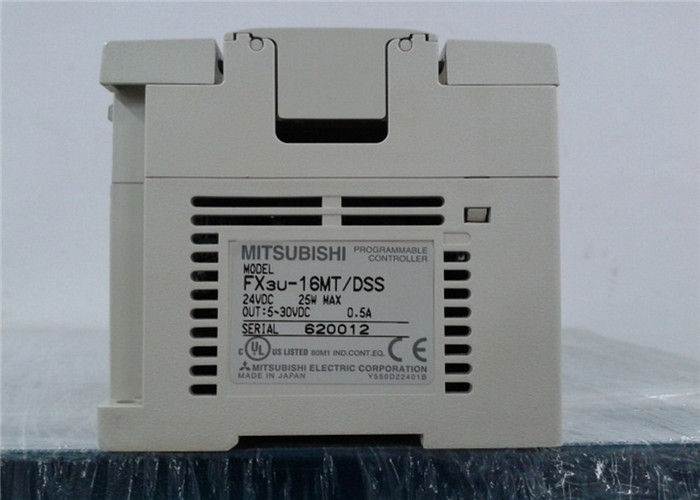

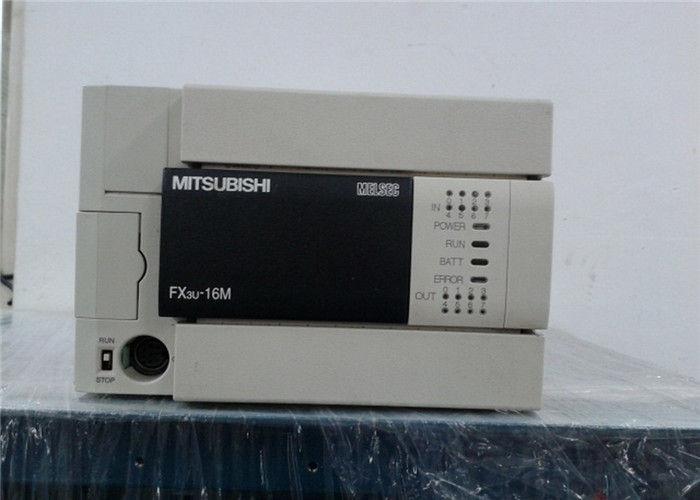

16 - 384 Points Mitsubishi Melsec Programmable Logic Controls FX3U-16MT/DSS

Large Image :  16 - 384 Points Mitsubishi Melsec Programmable Logic Controls FX3U-16MT/DSS

Product Details:

Place of Origin: Japan
Brand Name: Mitsubishi
Certification: CE
Model Number: FX3U-16MT/DSS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 180 USD
Packaging Details: New Original Box
Delivery Time: In Stock
Payment Terms: T/T / Paypal
Supply Ability: 50
Contact Now
Detailed Product Description
Product Name: PLC Programmable Logic Controller Model: FX3U-16MT/DSS
Voltage: 24VDC Output: 5-30 VDC
Power: 25W Max Current: 0.5A
High Light:

industrial programmable controller

,

ethernet plc controllers

Mitsubishi Melsec FX3UC PLC Programmable Logic Controller FX3UC-16MT/D



Quick Detail





PLC FX3U - Top of the Line




Controllable I/O: 16 - 384 points with CC-Link or AS-i remote I/O


Main Unit I/O: 16/32/48/64/80/128 points







FX3U Main Units with 16 I/O





Model

Number

 FX3U-16MR/DS FX3U-16MR/ES FX3U-16MT/DSS FX3U-16MT/DS FX3U-16MT/ESS FX3U-16MT/ES

Stocked

Item

 S S S S S S
Certification UL • cUL • CE (EMC)

Integrated

Inputs/

Outputs

 16 16 16 16 16 16
Power Supply 24VDC 100-240VAC 24VDC 24VDC 100-240VAC 100-240VAC

Integrated

Inputs

 8 8 8 8 8 8

Integrated

Outputs

 8 8 8 8 8 8
Output Type Relay Relay Transistor (Source) Transistor (Sink) Transistor (Source) Transistor (Sink)

Power Consumption

(W)

 25 30 25 25 30 30
Weight (kg) 0.60 0.60 0.60 0.60 0.60 0.60

Dimensions
(W x H x D)

mm

 130 x 90 x 86 130 x 90 x 86 130 x 90 x 86 130 x 90 x 86 130 x 90 x 86 130 x 90 x 86







FX3U Main Units with 32 I/O





Model Number FX3U-32MR/DS FX3U-32MR/ES FX3U-32MT/DSS FX3U-32MT/DS FX3U-32MT/ESS FX3U-32MT/ES FX3U-32MR/UA1 FX3U-32MS/ES

Stocked

Item

 S S S S S S S S
Certification UL • cUL • CE (EMC)

Integrated Inputs/

Outputs

 32 32 32 32 32 32 32 32

Power

Supply

 24VDC 100-240VAC 24VDC 24VDC 100-240VAC 100-240VAC 100-240VAC 100-240VAC

Integrated

Inputs

 16 16 16 16 16 16 16 16
Integrated Outputs 16 16 16 16 16 16 16 16

Output

Type

 Relay Relay Transistor (Source) Transistor (Sink) Transistor (Source) Transistor (Sink) Relay Triac
Power Consumption (W) 30 35 30 30 35 35 35 35
Weight (kg) 0.65 0.65 0.65 0.65 0.65 0.65 0.65 0.65

Dimensions

(W x H x D)

mm

 150 x 90 x 86 150 x 90 x 86 150 x 90 x 86 150 x 90 x 86 150 x 90 x 86 150 x 90 x 86 182 x 90 x 86 150 x 90 x 86







FX3U Main Units with 48 I/O





Model

Number

 FX3U-48MR/DS FX3U-48MR/ES FX3U-48MT/DSS FX3U-48MT/DS FX3U-48MT/ESS FX3U-48MT/ES

Stocked

Item

 S S S S S S
Certification UL • cUL • CE (EMC)

Integrated

Inputs/

Outputs

 48 48 48 48 48 48
Power Supply 24VDC 100-240VAC 24VDC 24VDC 100-240VAC 100-240VAC

Integrated

Inputs

 24 24 24 24 24 24

Integrated

Outputs

 24 24 24 24 24 24
Output Type Relay Relay Transistor (Source) Transistor (Sink) Transistor (Source) Transistor (Sink)

Power Consumption

(W)

 35 40 35 35 40 40
Weight (kg) 0.85 0.85 0.85 0.85 0.85 0.85

Dimensions
(W x H x D)

mm

 182 x 90 x 86 182 x 90 x 86 182 x 90 x 86 182 x 90 x 86 182 x 90 x 86 182 x 90 x 86






FX3U Main Units with 64 I/O





Model

Number

 FX3U-64MR/DS FX3U-64MR/ES FX3U-64MT/DSS FX3U-64MT/DS FX3U-64MT/ESS FX3U-64MT/ES FX3U-64MR/UA1 FX3U-64MS/ES

Stocked

Item

 S S S S S S S S
Certification UL • cUL • CE (EMC)

Integrated Inputs/

Outputs

 64 64 64 64 64 64 64 64
Power Supply 24VDC 100-240VAC 24VDC 24VDC 100-240VAC 100-240VAC 100-240VAC 100-240VAC

Integrated

Inputs

 32 32 32 32 32 32 32 32
Integrated Outputs 32 32 32 32 32 32 32 32
Output Type Relay Relay Transistor (Source) Transistor (Sink) Transistor (Source) Transistor (Sink) Relay Triac
Power Consumption (W) 40 45 40 40 45 45 45 45
Weight (kg) 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0

Dimensions

(W x H x D)

mm

 220 x 90 x 86 220 x 90 x 86 220 x 90 x 86 220 x 90 x 86 220 x 90 x 86 220 x 90 x 86 285 x 90 x 86 220 x 90 x 86







FX3U Main Units with 80 I/O





Model Number FX3U-80MR/DS FX3U-80MR/ES FX3U-80MT/DSS FX3U-80MT/DS FX3U-80MT/ESS FX3U-80MT/ES

Stocked

Item

 - S - S S S
Certification UL • cUL • CE (EMC)

Integrated

Inputs/

Outputs

 80 80 80 80 80 80

Power

Supply

 24VDC 100-240VAC 24VDC 24VDC 100-240VAC 100-240VAC

Integrated

Inputs

 40 40 40 40 40 40

Integrated

Outputs

 40 40 40 40 40 40

Output

Type

 Relay Relay Transistor (Source) Transistor (Sink) Transistor (Source) Transistor (Sink)

Power Consumption

(W)

 45 50 45 45 50 50

Weight

(kg)

 1.2 1.2 1.2 1.2 1.2 1.2

Dimensions
(W x H x D)

mm

 285 x 90 x 86 285 x 90 x 86 285 x 90 x 86 285 x 90 x 86 285 x 90 x 86 285 x 90 x 86







FX3U Main Units with 128 I/O





Model Number FX3U-128MR/ES FX3U-128MT/ESS FX3U-128MT/ES
Stocked Item S - -
Certification UL • cUL • CE (EMC)
Integrated Inputs/Outputs 128 128 128
Power Supply 100-240VAC 100-240VAC 100-240VAC
Integrated Inputs 64 64 64
Integrated Outputs 64 64 64
Output Type Relay Transistor (Source) Transistor (Sink)
Power Consumption (W) 65 65 65
Weight (kg) 1.8 1.8 1.8
Dimensions (W x H x D) mm 350 x 90 x 86 350 x 90 x 86 350 x 90 x 86







FX3UC Main Units with 16 - 96 I/O





Model



 FX3UC-16MT/D FX3UC-16MT/DSS FX3UC-16MR/DS-T FX3UC-32MT/D FX3UC-32MT/DSS FX3UC-64MT/D FX3UC-64MT/DSS FX3UC-96MT/D FX3UC-96MT/DSS

Input

Type

 Sink Sink / Source Sink / Source Sink Sink / Source Sink Sink / Source Sink Sink / Source

Weight

(kg)

 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.35 0.35







Melsec FX3U Communication Board　




FX3U-232-BD RS-232C SERIAL PORT (1 CH)




FX3U-422-BD RS-422 SERIAL PORT (1 CH




FX3U-485-BD RS-485 SERIAL PORT (1 CH)




FX3U-CNV-BD FX3U MODULE TRANSFORM UNIT




FX3U-USB-BD USB COMMUNICATION PORT(FOR ALL FX SERIES PLC)USB






Melsec FX3U Modules




FX3U-2HSY-ADP 2 CHANNELS PULSE TRAIN OUTPUT




FX3U-4AD-ADP




FX3U-4AD-PT-ADP




FX3U-4AD-TC-ADP




FX3U-4DA-ADP




FX3U-4HSX-ADP 4 CHANNELS HIGH SPEED COUNTER




FX3U-232ADP RS232 COMMUNICATION MODULE




FX3U-485ADP RS485 COMMUNICATION MODULE





Melsec FX3U Modules




FX3U-4AD




FX3U-4DA




FX3U-7DM DISPLAY PANEL




FX3U-7DM-HLD DISPLAY PANEL HOLDER




FX3U-20SSC-H 2 CHL SSC-NET MODULE




FX3U-32BL BACKUP BATTERY FOR FX3UC CPU





SIM Card




FX3U-FLROM-16 16K FLASH ROM MEMORY CASSETTE 16K




FX3U-FLROM-64 64K FLASH ROM MEMORY CASSETTE 64K




FX3U-FLROM-64L 64K PLC PROGRAM TRANSFER UNIT
