Yaskawa Servo Motor Encoder RD WBG13 Sigma II UTSIH B13DC Internal Encoder

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

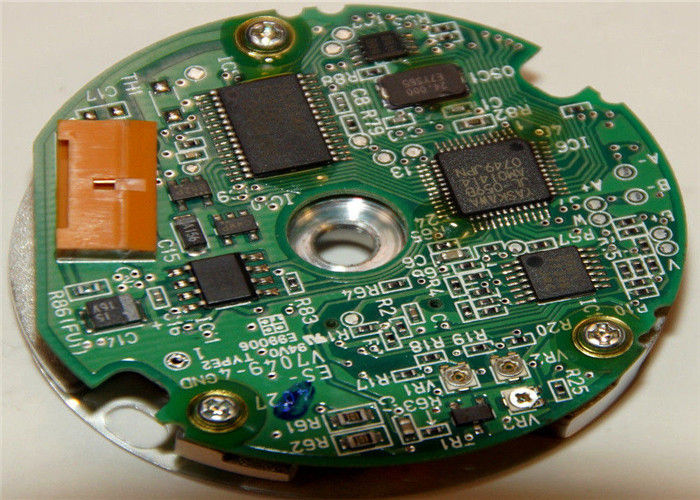

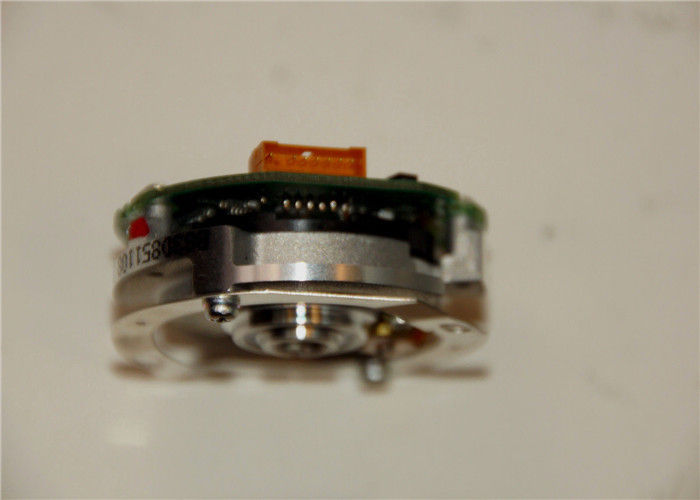

Yaskawa Servo Motor Encoder RD WBG13 Sigma II UTSIH B13DC Internal Encoder

Large Image :  Yaskawa Servo Motor Encoder RD WBG13 Sigma II UTSIH B13DC Internal Encoder

Product Details:

Place of Origin: Japan
Brand Name: Yaskawa
Model Number: UTSAH-B17BB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 2-3 work days
Payment Terms: TT West Union
Supply Ability: 100
Detailed Product Description
Brand: Yaskawa Model: UTSAH-B17BB
Place Of Origin: Japan Product Name: Encoder
Resolution: 13 Bit Name Of Series: DC

Servo Motor Encoder Yaskawa RD-WBG13 Sigma II UTSIH-B13DC Internal encoders







QUICK DETAILS

  1. Brand :Yaskawa
  2. Model :UTSAH-B17BB
  3. Place of Origin :Japan




DESCRIPTION

  • Servo Motor Encoder
  • Yaskawa Electric
  • Incremental Encoder





SPECIFITIONS
Manufacturer: Yaskawa
Product number: UTSIH-B13DC
Vendor number: UPG000150
Description: UTSIH-B13DC is an Internal encoders manufactured by Yaskawa
Series: UT series Encoders for AC Servo and Spindle motors
Type: Incremental Encoder
Construction of encoder: Coupled with plate spring for motor (complete)
Resolution: 13 bit
Name of series: DC







FEATURES

  • Small body with 38 mm diameter and 30 mm depth
  • Dust proof (IP40 rating)
  • 6 mm solid shaft or 8 mm hollow shaft
  • Resolution available from 100 pulses per revolution to 2500 pulses per revolution
  • Open collector or line driver output
  • Up to 200 kHz response frequency
  • Two-meter cable, tinned ends





How to read the timing charts



Open Collector Models​

Out A and Out B are 90 degrees out of phase. Like any quadrature encoder, four unique logic states are created internally to the encoder. This is based on the rising edge to rising edge (one cycle) on channel A or B that indicates one set of bars on the internal encoder disk has passed by the optical sensor. OUT Z is the absolute reference added to an incremental encoder and is also known as home position. It signifies a full rotation of the encoder shaft.





Line Driver Models

Channel A (OUT A and A-not) and Channel B (OUT B and B-not) are also 90 degrees out of phase on line driver encoders. OUT Z is the same as on open collector models, and is the absolute reference (home position). It signifies one full rotation of the encoder shaft.















SIMILAR PRODUCTS
UTSAE-B17BBFE UTSAH-B16EC-E UTSAH-B17AB
UTSAH-B17BB UTSIH-B13DC UTSJB-B19BCCBC
UTSIH-B13EC UTSIH-B17CC UTSAE-B17CLE
UTSAH-B17AA80 UTSIH-B17CA UTSIE-B17CM








OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
Fanuc motor A0- Yokogawa transmitter EJA-
