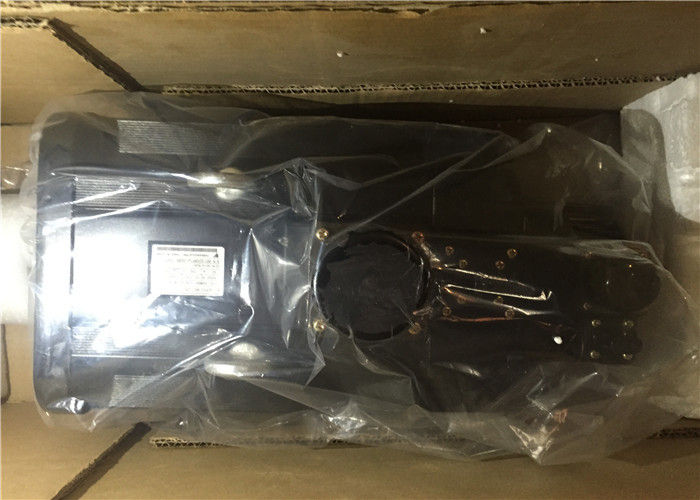

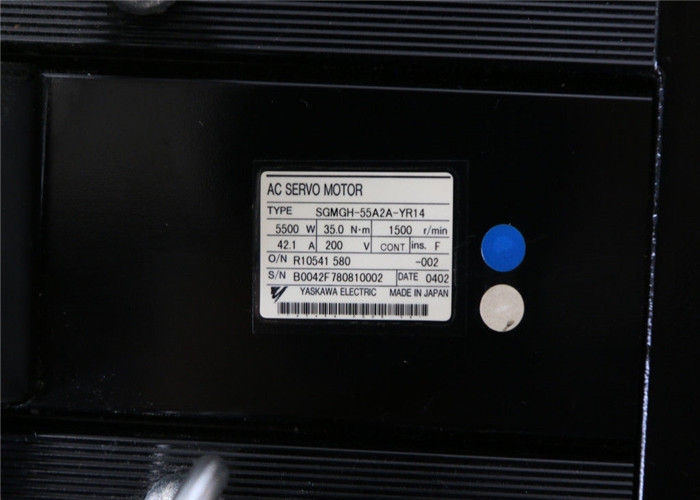

Industrial Servo Motor Yaskawa servo motor SGMGH-55A2A-YR14 5.5KW 200V Ins F
Quick Details
Brand Name:Yaskawa
Model Number:SGMGH-55A2A-YR14
Power : 5500W
Voltage: 200V
Current: 42.1A
N.m: 30.0
r/min : 1500
Ins : F
Place of Origin:Japan
Efficiency:IE 1
Similar Products
| SGMGH-05A2ASC61 |
| SGMGH-05ACA61 +SGDM-05ADA |
| SGMGH-05ACA6C |
| SGMGH-05ACC21 |
| SGMGH-09A2A21 |
| SGMGH-09ACA21 |
| SGMGH-09ACA2B |
| SGMGH-09ACA2C |
| SGMGH-09ACA61 |
| SGMGH-09ACA6B |
| SGMGH-09ACA6C |
| SGMGH-09ACB61 |
| SGMGH-09ACB6B |
| SGMGH-09PCA-AM14 |
| SGMGH-12A2B2 |
| SGMGH-12A2B21 |
| SGMGH-13A2A-YR13 |
| SGMGH-13A2A-YR23 |
| SGMGH-13A2A-YR23A |
| SGMGH-13A2A-YR24 |
| SGMGH-13ACA |
| SGMGH-13ACA21 |
| SGMGH-13ACA61 |
| SGMGH-13ACA6C |
| SGMGH-13DCA61 |
| SGMGH-1AACA61 |
| SGMGH-1EACA61 |
| SGMGH-20A2B2C |
| SGMGH-20ABA6C |
| SGMGH-20ACA61 |
| SGMGH-20ACA6B |
| SGMGH-20ACA6C |
| SGMGH-20ACB2C |
| SGMGH-20ACB61 |
| SGMGH-20D2A21 |
| SGMGH-30A2A-YR35 |
| SGMGH-30A2A-YRA1 |
| SGMGH-30A2B2C |
| SGMGH-30A2B6C |
| SGMGH-30ACA61 |
| SGMGH-30ACB21 |
| SGMGH-30ACB2C |
| SGMGH-30ACB61 |
| SGMGH-30ACB6C |
Construction: 0,35mm² 0,25mm²
Conductor : bare copper-wire 0,35 mm², flexible bare copper-wire 0,25 mm², flexible
Insulation : Polyesterelastomer 12Y Polyesterelastomer 12Y
Colour : white + brown green/yellow, grey/pink
Twisting : two pairs
Cabeling : 2 cores + 2 pairs
Wrapping : insulationtape
Shield : braided tinned copper screen
Wrapping : Seperatingtape
Jacket : Polyurethan TMPU
Colour : black –dullPrinting
(wt) : ERNST + ENGRING VDE-REG-NR. 6589 2 x 0,35 + 2 x 2 x 0,25 90°C 300V
#### -HALOGENFREE- (####: coded manufacture date)
Overall diameter : (6,0 ± 0,3) mm
Electrical datas (at 20°C) (0,25 mm²) (0,35 mm²)
Conductor resistance : £ 82,0 W/km : £ 41,0 W/km
Insulation resistance : > 200 MWxkm
Screen attenuation up to 30MHz : 45 dB (approxiamate value)
up to 1 GHZ : 30 dB (approxiamate value)
(Test methode acc. IEC 96-1 Amend. 2 (1993) A.5.6 „Line injection method“)
Test voltage (C/C) : 2,0 kVeff
(C/S) : 1,0 kVeff
Operating voltage : 300V
Operating current (single cable) at ambient temperature
0,35mm² 0,25mm²
20°C : £ 4,5 A ; : £ 4,5 A
30°C : £ 4,5 A ; : £ 4,5 A
40°C : £ 4,5 A ; : £ 4,5 A
50°C : £ 4,5 A ; : £ 4,5 A
60°C : £ 4,5 A ; : £ 4,5 A
70°C : £ 4,5 A ; : £ 4,5 A
Temperature range (Transport & storage) : -70°C bis + 90°C
(Installation & handling) : -40°C bis + 90°C
(Operating) : -20°C bis + 80°C
Bending radius (Operating) : ³ 3 x cable-Æ
(several times) : ³ 7,5 x cable-Æ
(several times optimum): ³ 10 x cable-Æ
Bending strength (r= 10 x cable-Æ at 20°C) : ³ 5.000.000 cycles
reduced working life at higher operating temperatures.
Oil resistance : acc. VDE 0282 part 10
Hydrolyse resistance : acc. VDE 0282 part 10
Flame resistance : acc. VDE 0472 part 804 condition B
Approbation : VDE-expert evidence (VDE-REG-Nr.6589)
The jacket surface has low adhesion, this prevents a stickness by contact.
All materials are halogenfree.
Applicable for use in flexible chain cable holder systems.
Not for use outdoor or in earth
When used as control cable the relevant installation and/or applicance standards have to be regarded
