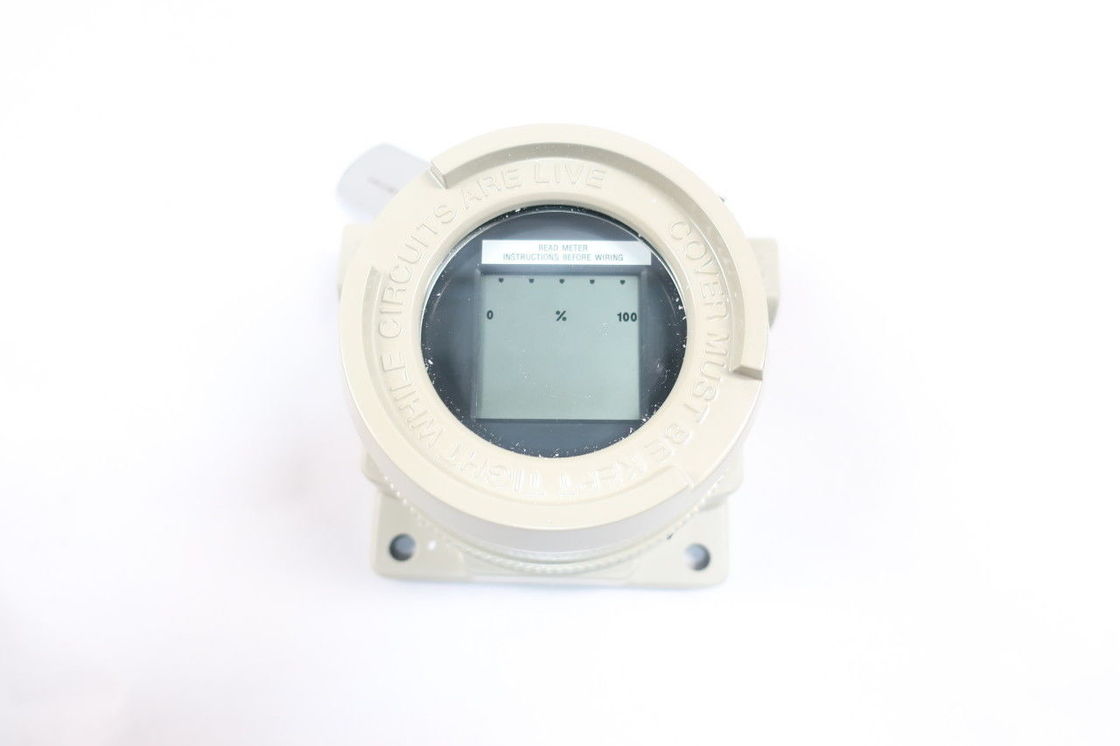

Honeywell Outside Pressure Transmitter For High Temperature Application STT250 STT 3000

Large Image :  Honeywell Outside Pressure Transmitter For High Temperature Application STT250 STT 3000

Product Details:

Place of Origin: America
Brand Name: Honeywell
Model Number: Series STT250

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100
Detailed Product Description
Brand: Honeywell Model: Series STT250
Origin: America Type: Transmitter
High Light:

high temperature differential pressure transmitter

,

absolute pressure transmitter

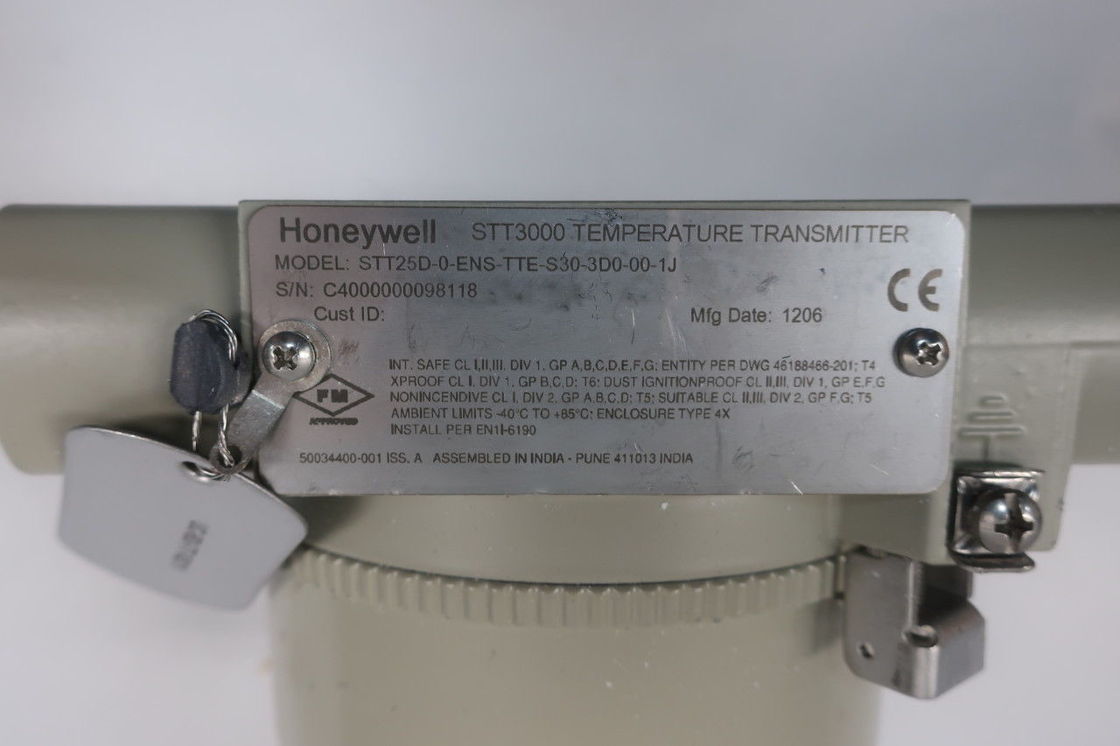

Pressure Temperature Transmitter Honeywell Series STT250 STT 3000 Temperature Transmitter



Instructions

● Choose availability column based on mounting configuration.

● A dot (●) denotes unrestricted availability. A letter denotes restricted availability.

● Blank denotes unavailable - choose alternate mounting. Restrictions follow Table VII.

● Select the desired Key Number based on the desired communications protocol.

● Select options and approvals from Tables.



Key Number

Description Selection Availability

Smart Temperature Transmitter Module

     4-20mA Output, SFC/SCT Configurable

     HART 5, Protocol, 4-20mA Output

     HART 6, Protocol, 4-20mA Output

     Digital DE/ 4-20mA Output, for Digital Integration

     Dual input, HART Protocol, 4-20mA output



STT25M

STT25H

STT25S

STT25D

STT25T







All modules carry the following approvals:

         CE Mark for compliance to EN 50081-2 and 50082-2

         Russian Certificate of Pattern Approval No. 2064 of Jan. 1998

         Choose additional safety approvals required in Table VII







TABLE I - Sensor, Probe and Thermowell Accessories

No Integral Sensor Probe or Thermowell Supplied 0



TABLE II - Transmitter Housing and Integral Meters (Reference EN0I-6032 for details)

Housing

No Housing Supplied

Field          Explosion-Proof Aluminum with Beige Epoxy Coating

Mount (2)   Explosion-Proof 316 Stainless Steel

Head Mt     Type 4X housing - Beige

0 _ _

E _ _

T _ _

C _ _













Cable/ Conduit Entry

Not Applicable - No Housing Supplied

1/2" NPT Cable/ Conduit Entry

M20 x 1.5 Cable/ Conduit Entry

_ 0 _

_ N _

_ M _







Integral Meter

No Integral Meter Supplied

Analog Meter for Field Mount Housing

E.U. Meter for Field Mount Housing

Smart Meter for Field Mount Housing (3)

_ _ 0

_ _ M

_ _ E

_ _ S

h

i















(2) With a Field Mount Housing, 20 characters max. of customer information is available on the nameplate  at no charge.

     (See 13:STT-OE pages for ordering instructions.)

(3) For the STT25D and STT25M transmitters



TABLE III - Configuration, Tagging and Manual

Configuration

None - Factory Default Configuration Supplied

Transmitter Configuration (See 13:STT-OE pages for choices)

0 _ _

T _ _

Customer Tagging (4)

No Tagging Required

316 SS Wired-on Customer I.D. Tag (4 lines, 28 chars.  per line, customer specified information)

316 SS Wired-on Customer I.D. Tag (blank)

_ 0 _

_ T _



_ B_











Operator's Manual (5)

None

English Language Version

French Language Version

Spanish Language Version

Chinese Language Version

_ _ 0

_ _ E

_ _ F

_ _ S

_ _ C

b

b

b

b

b

b



TABLE IV - Optional Equipment

Mounting Arrangement

No Mounting Arrangment Supplied

Carbon Steel Mounting Bracket for 2" Pipe

Stainless Steel Mounting Bracket for 2" Pipe

Spring Loading Mounting set

DIN Rail Mounting via Clip (to Top Hat or "G" Rail)

0 _ _

M _ _

S _ _

L _ _

D _ _















316 SS Conduit Adaptor for Wiring Entry

No Adaptor(s) Supplied

1/2" NPT to M20 x 1.5      1 Adaptor

(EEx d IIC approved)        2 Adaptors

1/2" NPT to 3/4" NPT        1 Adaptor

_ 0 _

_ 1 _

_ 2 _

_ 3 _









Lightning Protection

No Lightning Protection Supplied

Externally Mountable to Field Mount Housing

Internal Surge/ Lightning Protection

_ _ 0

_ _ L
_ _ S

e











TABLE V - Optional Extended Warranty Coverage & Certificates

Optional Extended Warranty

Standard Warranty

Additional Warranty - 1 year

Additional Warranty - 2 years

Additional Warranty - 3 years

0 _ _

1 _ _

2 _ _

3 _ _

Optional Certificate (5)

No Transmitter Configuration/ Calibration Certificate

Transmitter Configuration/ Calibration Certificate

_ 0 _

_ D _

No Certificate of Conformance/ Origin

Certificate of Conformance/ Origin

_ _ 0

_ _ C



TABLE VI - Additional Features

SIL2 No SIL2 - TUV Certified Transmitter 00
SIL2 - TUV Certified Transmitter (requires HART 6) S2 d d d



(4) Full model number does not appear on module or head mount housing. If model number is to appear on unit, order wired on tag.

(5) Chosen Operator's Manuals and chosen Certificates are automatically shipped with unit. See 13:STT-OE pages for additional manuals and alternate shipping.
