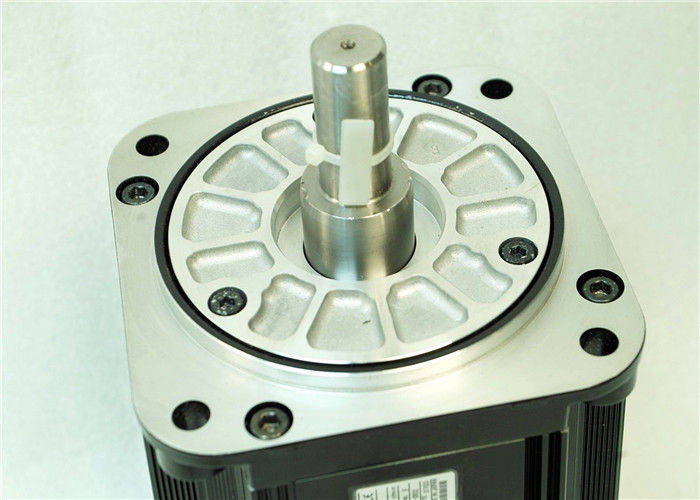

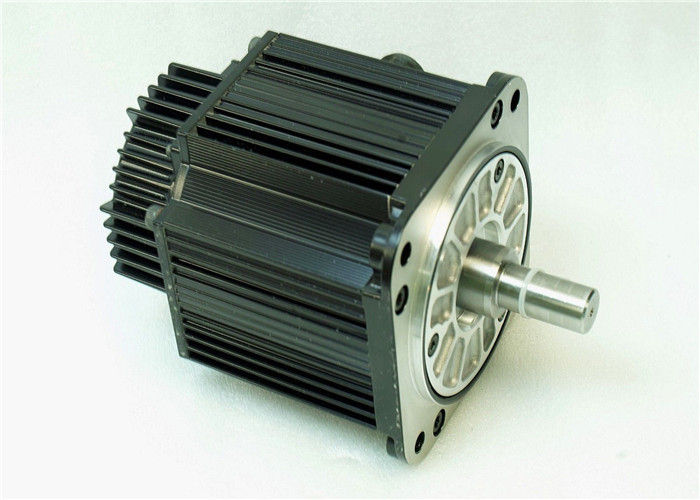

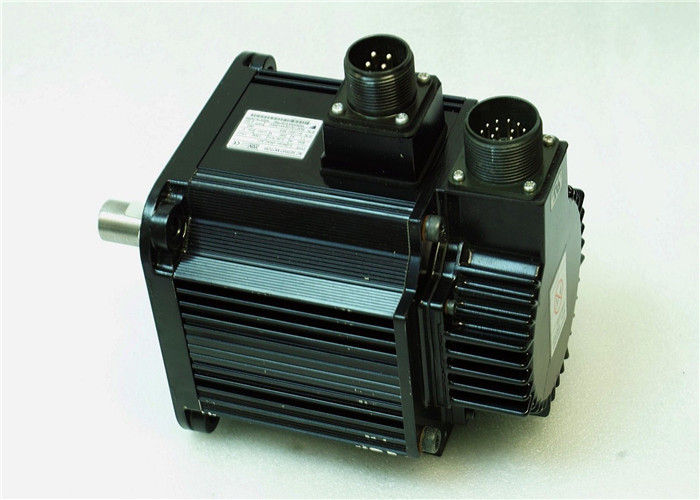

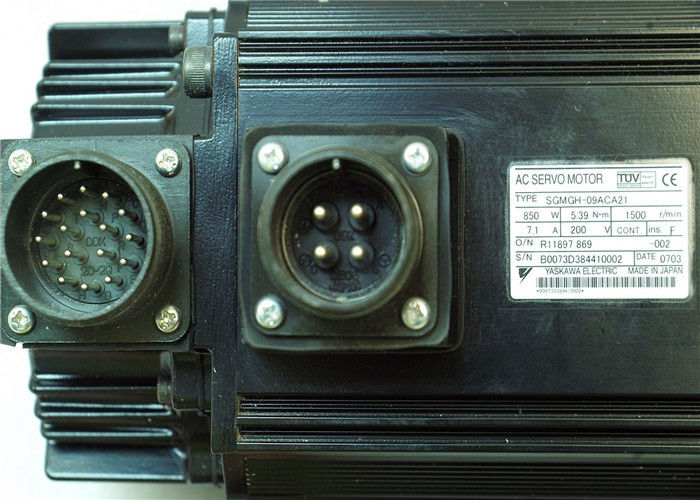

Industrial Servo Motor Yaskawa SGMGH-09ACA21 AC Servo Motor 5.39N.m 850W
Specification
| Brand/Manufacturer | Yaskawa Electric |
| Model | SGMGH-09ACA21 |
| Product Type | AC Servo Motor |
| Rated Output | 850w |
| Rated Torque | 5.39Nm |
| Rated Speed | 3000RPM |
| Power Supply Voltage | 200vAC |
| Rated Current | 7.1Amps |
