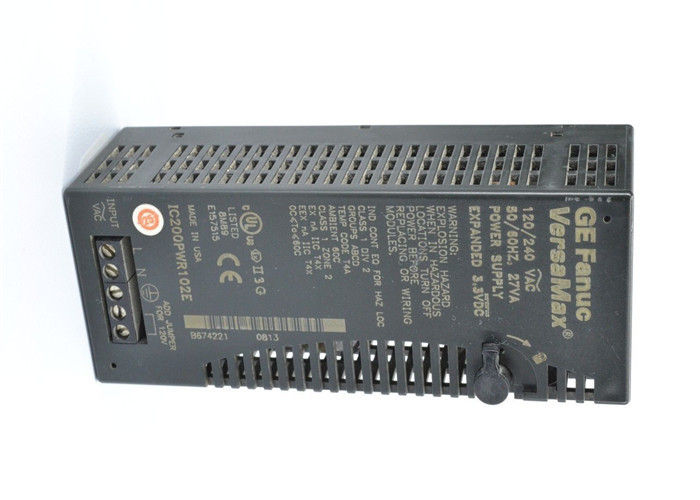

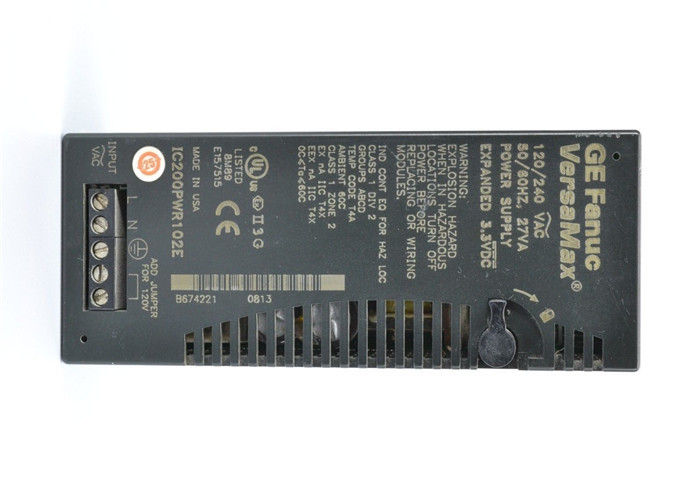

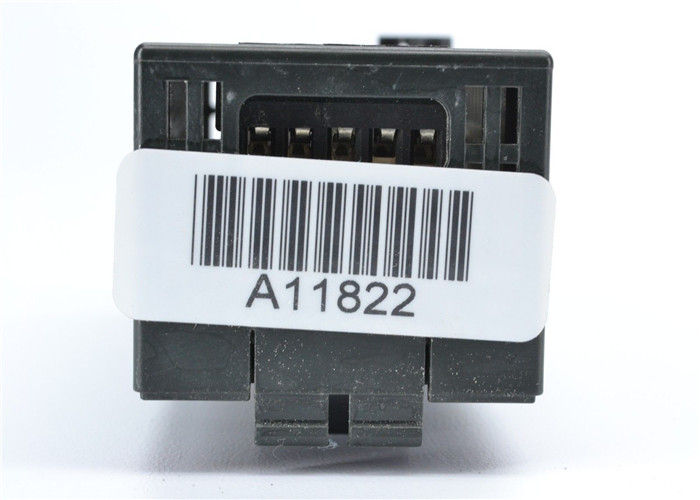

Redundant Power Supply Module GE Fanuc IC200PWR102 VERSAMAX POWER SUPPLY











120/240VAC Expanded 3.3 Power Supply IC200PWR102 provides backplane power for CPU, NIU, and I/O modules. It supplies up to 1.5 Amps output current via 3.3 Volt and 5 Volt outputs, with up to 1.0 Amp on the 3.3V output. Module backplane current
consumption is summarized in appendix C.



An AC or DC Power Supply provides +5V and +3.3V power to the modules in the rack. Additional power supplies can be installed on special booster carriers if needed for systems where the number of modules creates the need for a booster. The AC or DC Power Supply on the CPU or NIU and the Power Supply that resides on the Booster Carrier must share the same external power source.









Specifications



Input Voltage 85 to 132 VAC with jumper installed, 120VAC nominal
                        176 to 264 VAC w/o jumper installed, 240VAC nominal
Input Power 27VA
Frequency 47 to 63Hz
Holdup Time 20ms
Output Voltage 5VDC, 3.3 VDC
Protection Short circuit, overload
Output CurrentTotal
3.3VDC Output
5VDC Output
1.5A maximumz
1.0A maximum
(1.5A - I3.3V ) maximum










Similar Products
IC3600AAIA1 CIRCUIT BOARD
IC3600AAIB1 ANALOG INTERFACE IC3600AAIB
IC3600AAID1 GE SPEEDTRONIC
IC3600AAMA1 CARDS
IC3600ABAA1 CIRCUIT BOARD
IC3600ACLS1 CURR LIMIT BD IC3600ACLS
IC3600ADAA1 D/A CONVERTER
IC3600ADAC1 D/A CONVERTER
IC3600ADAD1 DIODE D/A CONVERTER IC3600ADAD
IC3600ADAE1 GE SPEEDTRONIC
IC3600ADAF1 D/A CONVERTER
IC3600ADNA1 DISCRIMINATOR
IC3600AEXA1 EXPANDER CARD IC3600AEXA
IC3600AFGA1 FUNC GEN BOARD IC3600AFGA
IC3600AFGB1 FUNC GEN BOARD
IC3600AFGD1 FUNC GEN BOARD
IC3600AFGH1 TIMED ACCEL BD
IC3600AFMA1 FAULT MON BOARD IC3600AFMA
IC3600AFRA1 FIELD-TAPER-CONTROL
IC3600AFRB1 FIELD-TAPER-AUX
IC3600AIAA1 CURRENT-SENSOR
IC3600AIAC1 AMPLIFIER BOARD IC3600AIAC
IC3600AIAD1 TRANS ISOL BD IC3600AIAD
IC3600AIAE1 CURRENT-SENSOR
IC3600AJBA1 JUMPER BOARD IC3600AJBA
IC3600ALTC1 GE SPEEDTRONIC
IC3600ALTD1 LINEAR TAPE
IC3600AMIA1 ANALOG MUX BD
IC3600AMIB1 CARD SINGLE END MULT
IC3600AMIP1 SINGLE END MULTIPLEX IC3600AMIP
IC3600AMLB1 IC3600AMLB
IC3600AMLG1 ANALOG MUX BD IC3600AMLG
IC3600AOAA1 3-STAGE-OPER-AMPL
IC3600AOAA2 OP AMP BOARD IC3600AOAA
IC3600AOAB1 5-STAGE-OPER-AMPL







Made by General Electric Automation and Controls, the IC200PWR102 is a VersaMax expanded power supply unit with extended functionality. This power supply unit is used to give power to several types of devices which are connected to the backplane—input and output modules, processing units, and network interface units, for example. The IC200PWR102 differs from many other VersaMax power units in that it operates primarily with alternating current (AC) rather than direct current (DC). While this device is capable of being a main power supply, it is also adept at functioning as a supplementary power source when attached to a power supply booster carrier.



The IC200PWR102 has different options in regards to input voltage. When a jumper is installed, the input voltage can range anywhere from 85 volts to 132 volts of alternating current, but 120 volts is nominal. When a jumper is not installed, the input voltage range is from 176 volts to 264 volts alternating current, with a nominal voltage of 240 volts. Vital note: A jumper should not be used in conjunction with 240 volts of input voltage. Doing so will cause damage to the power module and may result in dangerous conditions. The IC200PWR102 can safely operate at 120 volts AC without a jumper.



The input power for this product is 27 volt-amperes, and the frequency can range from 47Hz to 63Hz. The hold-up time is rated at 20 milliseconds; however, if this device is operating with 120 volts of input voltage without a jumper installed, this hold up time will not be accurate. Output voltages are 3.3 volts and 5 volts, totaling in a maximum of 1.5 amperes. Limited protection measures are supported for this device, including short circuit and overload protection.




When mounted on the CPU or NIU module, this power supply serves as the main power  supply for the station. It can also be used as a supplemental power supply when mounted on a Power Supply Booster Carrier. Refer to the Power Supply Booster Carrier section of chapter 4 for more information.



The total output current should not exceed 1.5 A. For example, if 3.3V @ 1.0 A is required, 0.5 A is available on the 5V output.


This power supply can be used with either 120VAC or 240VAC nominal input power. For 120VAC nominal operation, a jumper
should be installed as marked on the power supply.




The power supply operates without a jumper installed; however, the hold-up specificationis not met. If a jumper is not installed for 120VAC operation, the power supply will not cause hazardous conditions.




DO NOT USE A JUMPER FOR 240VAC OPERATION. If a jumper is used on the input connector for 240VAC nominal operation, the power supply will be damaged and may cause hazardous conditions.
