140DDI35300 Programmable Machine Controller Electric Eingangsmodul TSX Quantum

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

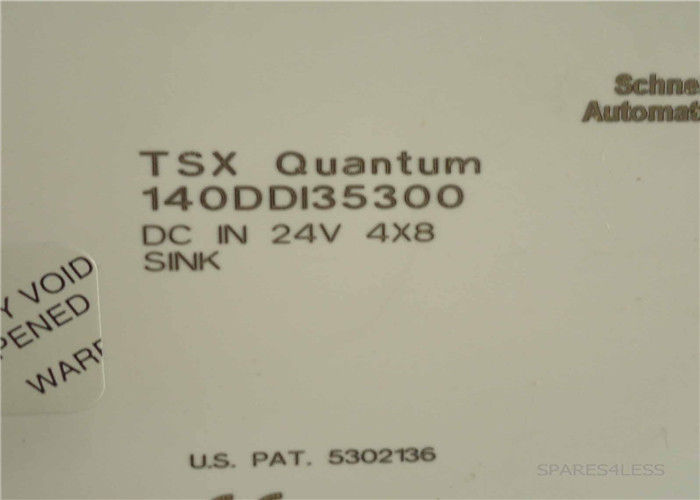

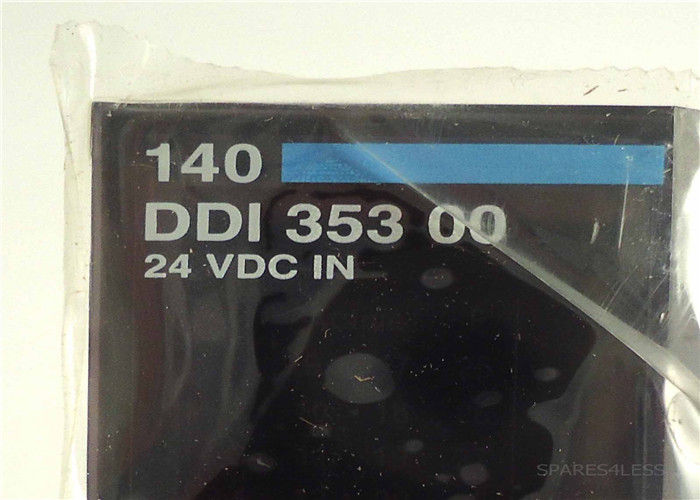

140DDI35300 Programmable Machine Controller Electric Eingangsmodul TSX Quantum

Large Image :  140DDI35300 Programmable Machine Controller Electric Eingangsmodul TSX Quantum

Product Details:

Place of Origin: FR
Brand Name: Schneider
Model Number: 140DDI35300

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 2-3 work days
Payment Terms: T/T, Western Union
Supply Ability: 100
Detailed Product Description
Brand: Schneider Model: 140DDI35300
Palce Of Origin: FR Type: Processor/Controller
Module Format: Standard Marking: GE
Bus Current Requirement: 330 MA Weight: 0.3 Kg
High Light:

industrial automation using plc

,

industrial programmable controller

PLC Programmable Logic Controller 140DDI35300 Schneider Electric Eingangsmodul TSX Quantum








Complementary
Group of channels 4
Logic input Positive (sink)
Discrete input voltage 24 V DC
Input voltage limits 19.2...30 V
Voltage state1 guaranteed 15...30 V DC
Voltage state 0 guaranteed -3...5 V DC
Current state 1 guaranteed >= 2 mA at Us = 5.5 V and Uin = 0 V
Current state 0 guaranteed <= 0.5 mA
Addressing requirement 2 input words
Input impedance 2500 Ohm
Leakage current 200 mA at Us = 5.5 V and Uin = 4 V
Absolute maximum input 56 V during 1.3 ms decaying pulse
                                            30 V continuous
Response time <= 1 ms from state 1 to state 0
                            <= 1 ms from state 0 to state 1
Protection type Input protection by resistor limited
Power dissipation 1.7 W + (0.36 x number of points on)
Isolation between group and bus 1780 Vrms for 1 minute
Isolation between group 500 Vrms for 1 minute
Local signalling 32 LEDs green input status
                             1 LED red external fault detected (F)
                             1 LED green bus communication is present (Active)
Marking CE
Bus current requirement 330 mA
Module format Standard
Product weight 0.3 kg





Environment
Standards CSA C22.2 No 142  UL 508
Product certifications ABS
                                       BV
                                       C-Tick
                                       DNV
                                       GOST
                                       RINA
                                       RMRS
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2
                                                                   4 kV contact conforming to IEC 801-2
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0...60 °C
Ambient air temperature for storage -40...85 °C
Relative humidity 95 % without condensation
Operating altitude <= 5000 m





Offer Sustainability
Sustainable offer status Green Premium product
RoHS Compliant - since 0846 - Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Product environmental profile Available Download Product Environmental
Product end of life instructions Need no specific recycling operations
