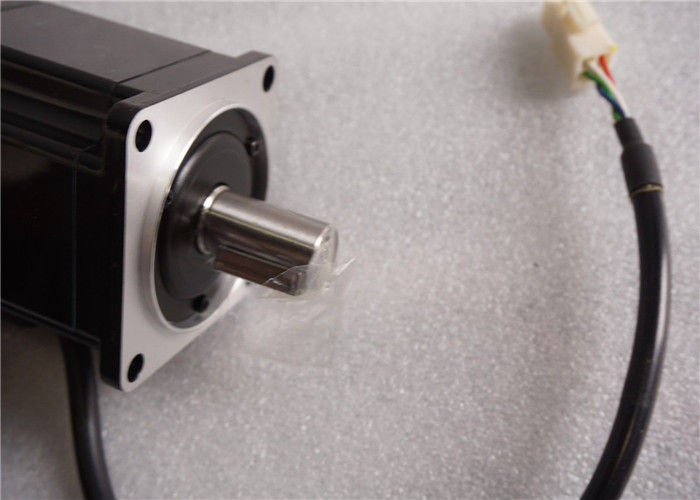

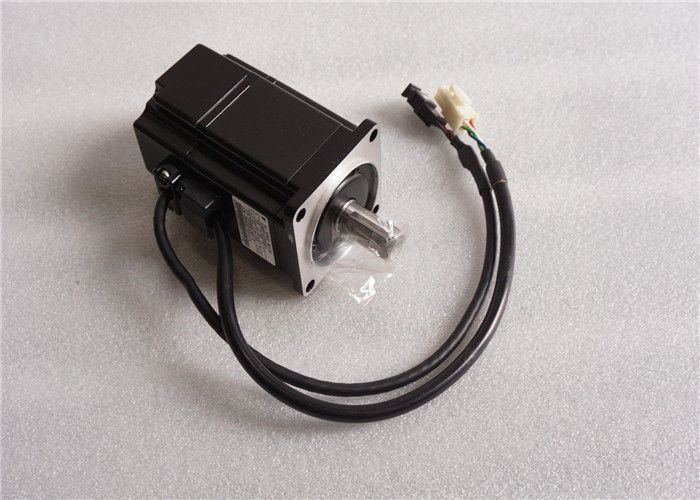

YASKAWA High Precision Servo Motor Durable SGMAH-02AAA41 0.637Nm 200V

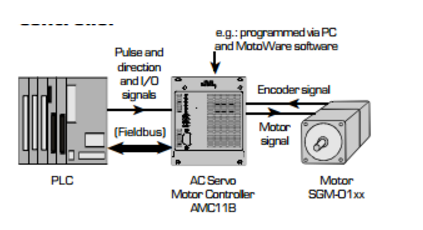

In systems where overall control is managed by aPLC, the AMC Servo Motor Controllers can becontrolled in 2 ways:
1) Using pulse and direction signals ±10V.Velocity and operating length can thus be
controlled completely by the PLC-program.
2) Using the Controller's registers themselves tostore parameter sets, up to 64 positions,velocities, etc., which are addressed via thedigital inputs and activated by the start input. This
gives maximum use of the Controller's features



In this configuration, the JVL AMC Controller is used as an independent unit that completely controls program execution. Programming of the Controller is most easily accomplished using JVL's MotoWare software and a PC. The Keyboard/Display Module enables register values and program parameters to be keyed in, e.g. displacements, volumes, quantities, etc. Print-out of data to the Module display enables an operator to follow program execution. In many applications, this type of system can replace the use of a PLC.




Extra power supply 80V/200W PSU80-2
Connector board with plug-in connectors CON13
Set-up and programming software MotoWare
Interface cable RS232-9-1
19" Rack-insert RAI1
Mounting plate for surfaces BASE1


Operation type Continuous
Insulation Class Class B
Vibration V15 Insulation voltage 1500 VAC
Insulation resistance 500VDC, 10MOhm or more Motor housing Completely sealed, self cooling Ambient temperature 0 to +40°C Ambient humidity 20 to +80% (without condensation) Magnet Permanent Mounting Flanges
