Product Details:
Payment & Shipping Terms:
|
| Brand: | Schneider | Model: | 140CPU67160 |
|---|---|---|---|
| Palce Of Origin: | FR | Type: | Processor/Controller |
| Series: | Quantum CPUs | Module Format: | Standard |
| Clock Frequency: | 266hz | Weight: | 2bls |
| High Light: | plc power supply module,diode redundancy module |
||

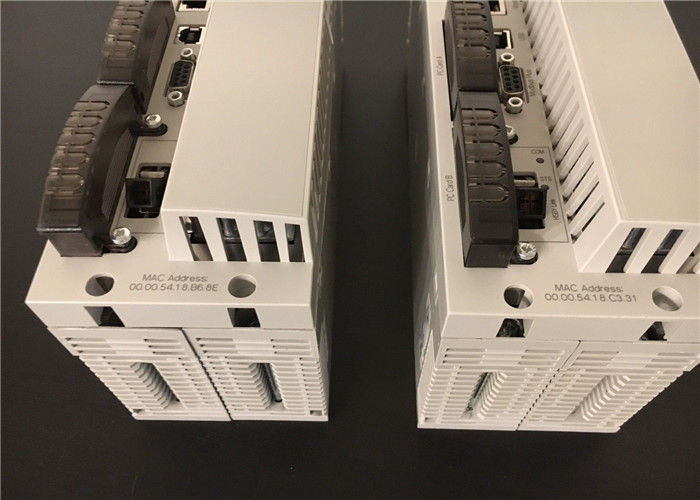

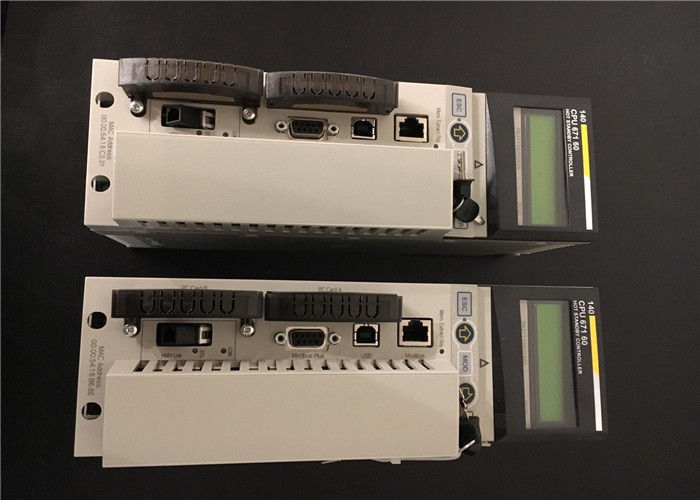

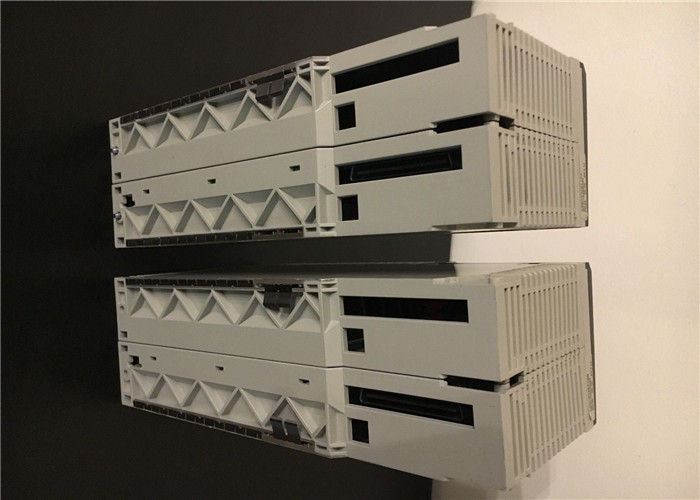

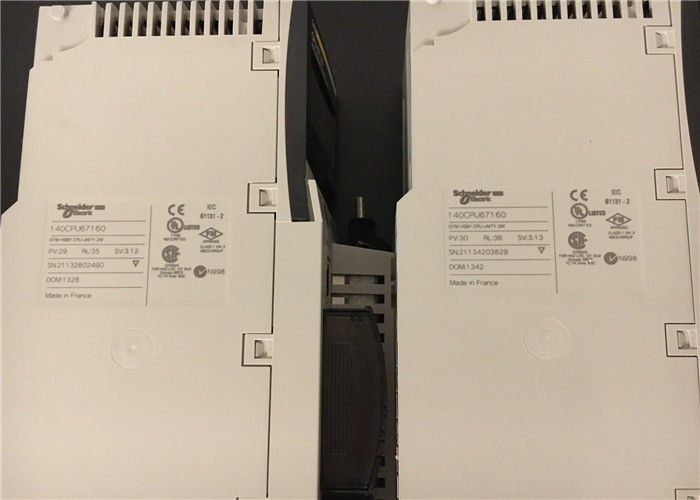

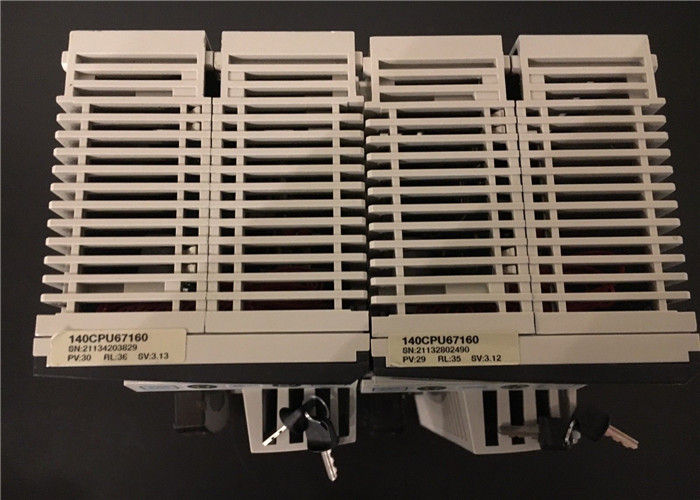

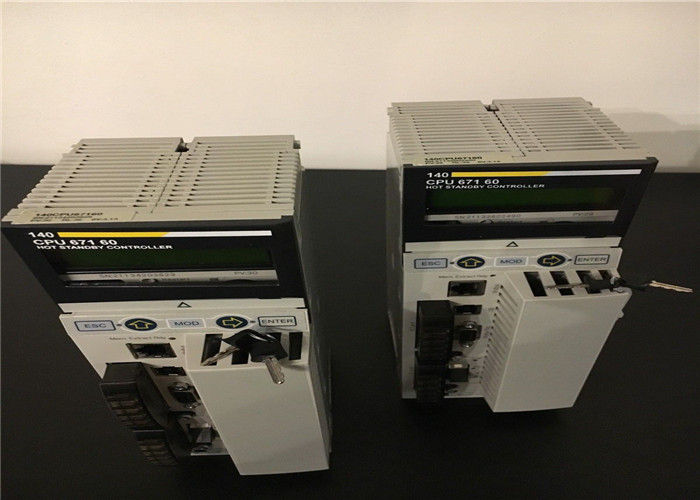

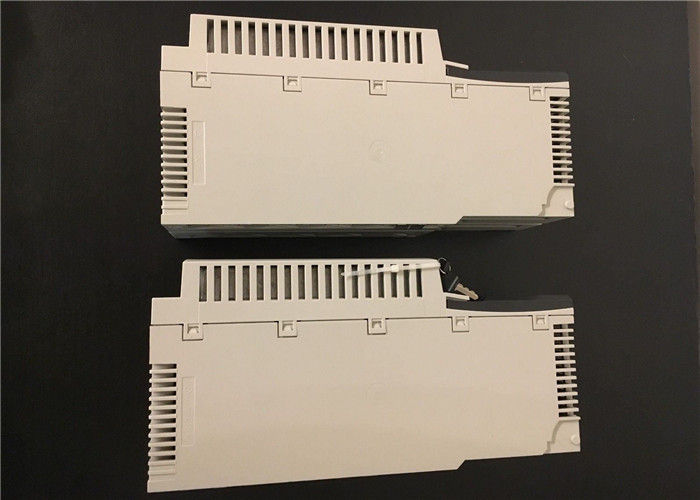

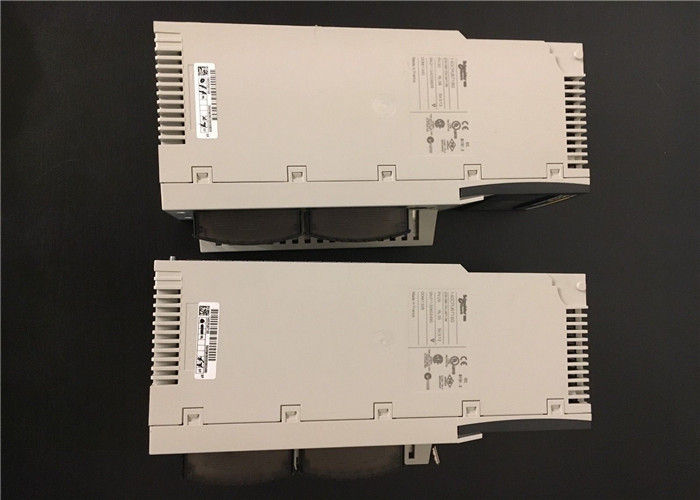

Redundant Power Supply Module Schneider TXS Quantum Modicon CPU 140CPU67160
| Manufacturer: | Modicon Quantum |
| Series: | Quantum CPUs |
| Weight: | 2 lb |
| Product or component: | Unity processor |
| Mode of transmission: | Multimode |
| Clock frequency: | 266 MHz |
| Number of slots: | 10 |
| 16 | |
| 2 | |
| 4 | |
| 6 | |
| Number of racks: | 2 - local rack(s) |
| Number of distributed I/O station: | 63 station(s) - 1 rack(s) - 3 distributed network(s) |
| Number of remote I/O station: | 31 - 2 remote rack(s) |
| Discrete I/O number: | 8000 inputs, 8000 outputs - distributed - per network |
| 31744 inputs, 31744 outputs - remote | |
| Unlimited (26 slots max) - local - forbidden in Hot Standby application | |
| Analogue I/O number: | Unlimited (26 slots max) - local - forbidden in Hot Standby application |
| 500 inputs, 500 outputs - distributed - per network | |
| 1984 inputs,1984 outputs - remote | |
| Application specific I/O: | Accurate time stamping |
| Counter | |
| High-speed interrupt inputs | |
| Serial link | |
| Number of optional modules: | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections: | Unlimited (AS-Interface) - local |
| 6 (Profibus DP) - local | |
| 6 (Modbus Plus) - local | |
| 6 (Ethernet TCP/IP) - local | |
| 4 (AS-Interface) - remote | |
| 2 (AS-Interface) - distributed | |
| 1 (USB) | |
| 1 (Modbus) - RS232/485 Modbus/ASCII | |
| Integrated connection type: | 1 Ethernet TCP/IP |
| 1 Modbus | |
| 1 Modbus Plus | |
| 1 USB | |
| Checks: | Hot standby |
| Process control | |
| Memory description: | Internal RAM 1024 kB - 512 kB for data |
| Expandable 8 MB - file storage with PCMCIA card | |
| Expandable 7168 kB - program with PCMCIA card | |
| Switch function: | Key switch memory port on/off |
| Application structure: | 4 auxiliary tasks - forbidden in Hot Standby application |
| 32 timer interrupt tasks - forbidden in Hot Standby application | |
| 128 interrupt tasks - forbidden in Hot Standby application | |
| 128 I/O interrupt tasks - forbidden in Hot Standby application | |
| 1 periodic fast task - forbidden in Hot Standby application | |
| 1 cyclic/periodic master task | |
| Execution time per instruction: | 0.4...0.5 µs floating points |
| 0.0525...0.075 µs Boolean | |
| 0.045...0.06 µs on word | |
| 0.045...0.06 µs on fixed-point arithmetic | |
| Execution time for 1 K instruction: | 10.28 100 % Boolean |
| 10.07 65 % Boolean and 35 % numerical | |
| System overhead: | 1 ms - master task |
| 0.2 ms - fast task | |
| Bus current requirement: | 2500 mA |
| Local signalling: | 1 LED red for Ethernet collision |
| 1 LED green for Ethernet activity (COM) | |
| Electrical connection: | 1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 Km |
| 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network | |
| 1 connector, connector type: RJ45 for connecting Modbus bus | |
| 1 connector, connector type: RJ45 for connecting Ethernet network |
