Relay Output Redundancy Diode Module 560 MA Current 140DRC83000

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

Relay Output Redundancy Diode Module 560 MA Current 140DRC83000

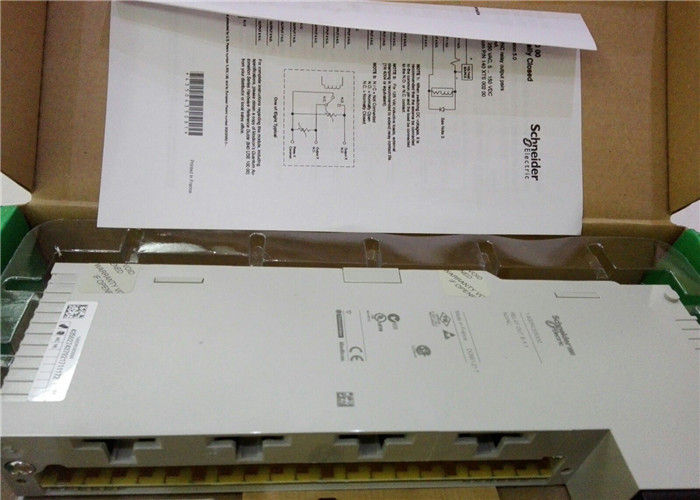

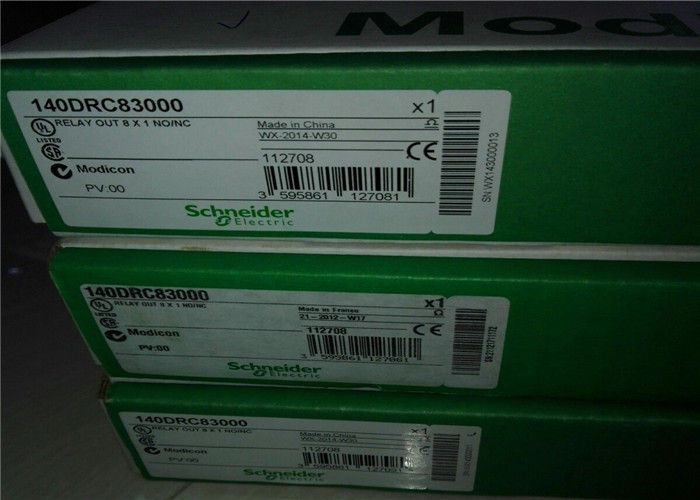

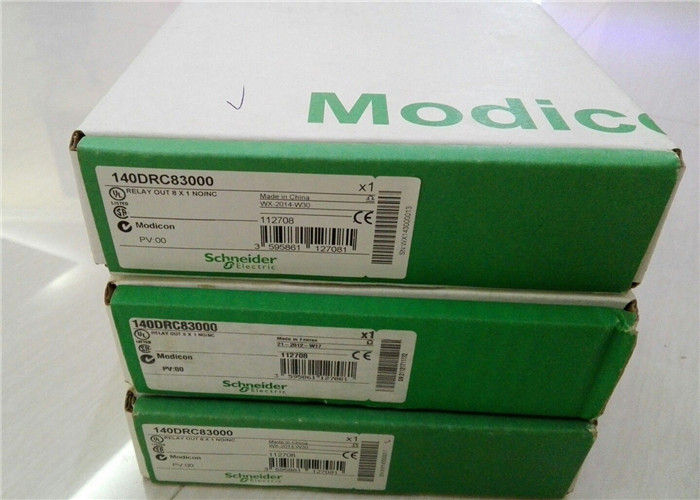

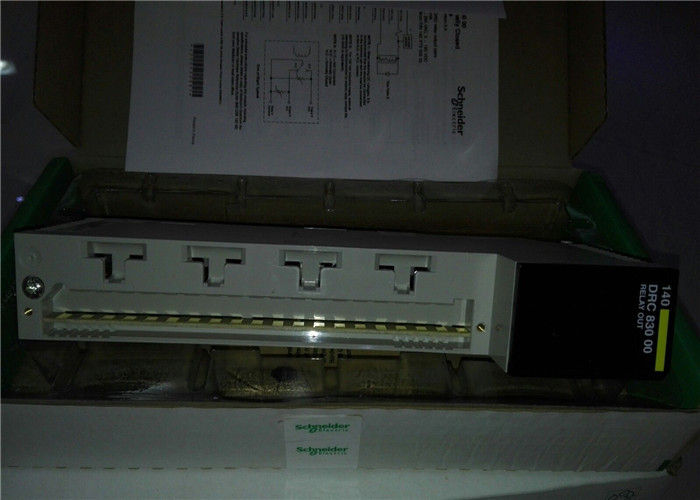

Large Image :  Relay Output Redundancy Diode Module 560 MA Current 140DRC83000

Product Details:

Place of Origin: FR
Brand Name: Schneider
Model Number: 140DRC83000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 2-3 work days
Payment Terms: T/T, Western Union
Supply Ability: 100
Detailed Product Description
Brand: Schneider Model: 140DRC83000
Palce Of Origin: FR Type: Output Module
Discrete Output Numbe: 8 Series: Quantum CPUs
Bus Current Requirement: 560 MA Weight: 0.3kg
High Light:

analog interface module

,

plc power supply module

Redundant Power Supply Module 140DRC83000 BRAND NEW Modicon Relay OUT











Specifications

Manufacturer: Modicon Quantum
Series: Quantum I/O
Weight: 2 lb
Product or component type: Relay discrete output module
Discrete output number: 8
Contacts type and composition: 1 NO/NC
Contact form: Form C
Discrete output voltage: 20...250 V AC
  30...150 V DC
  5...30 V DC
Addressing requirement: 0.5 output word
Maximum load current: 100 mA 30...50 V DC L/R = 10 ms
  2 A 250/30 V AC/DC tungsten 1/4 hp cos phi = 0.4
  3 A 250/30 V AC/DC
  300 mA 30...50 V DC resistive
  5 A 250/30 V AC/DC resistive at 60 °C
Surge current: <= 20 A for 10 ms capacitive
Switching frequency: 30 Hz resistive
  F = 0.5/I²L inductive
Switching capacity in VA: 1250 VA resistive
Response time on input opening: <= 10 ms at state 0 to state 1
  <= 20 ms at state 1 to state 0
Mechanical durability: 10000000 cycles
Electrical durability: 100000 cycles 100 mA 30...150 V DC L/R = 10 ms
  100000 cycles 30...150 V DC interposing relay
  100000 cycles 300 mA 30...150 V DC resistive
  100000 cycles 5 A 30 V DC resistive
  200000 cycles 5 A 250 V AC resistive
  50000 cycles 500 mA 30...150 V DC resistive
Output overvoltage protection: Internal by varistor, 275 V
Isolation between channels: 1780 Vrms AC for 1 minute
  2500 V DC
Isolation between channels and bus: 1780 Vrms AC for 1 minute
  2500 V DC for 1 minute
Power dissipation: 2.75 W + (0.5 x the number of points on)
Marking: CE
Local signalling: 1 LED green bus communication is present (Active)
  1 LED red external fault detected (F)
  8 LEDs green input status
Bus current requirement: 560 mA
Module format: Standard









OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
Fanuc motor A0- Yokogawa transmitter EJA-


Contact person: Anna
E-mail: wisdomlongkeji@163.com
Cellphone: +0086-13534205279





Similar Products





The Quantum 140DRC83000 Relay Output Module provides 8x1 Normally Open/Normally Closed Relay outputs. A Quantum removable terminal strip allows for easy maintenance. Quantum backplanes (ordered separate ly) come in 2,3,4,6,10, and 16 slot versions. Any Quantum module can be used in any slot. A Quantum power supply is required in each rack. The power supply provides logic power to all modules on the bus. All Quantum I/O modules are optically isolated from the bus, ensuring safe and trouble-free operation. Optionally, you can inse rt mechanical keys between the I/O module and the terminal strip to ensure that the field wiring and the module type are properly matched. Key codes are unique for each module type. Key kits are shipped with each I/O module. As an option, modules can be ordered with a conformal coating applied to protect the internal circuitry from corrosive gases su ch as Chlorine, Nitric Oxide, Hydrogen Sulfide and Sulfur Dioxide.









Environment
product certifications
GL
FM Class 1 Division 2
C-Tick
DNV
RMRS
RINA
ABS
GOST

standards
UL 508
CSA C22.2 No 142

resistance to electrostatic discharge
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2

resistance to electromagnetic fields
10 V/m 80...2000 MHz conforming to IEC 801-3

ambient air temperature for operation
0...60 °C

ambient air temperature for storage
-40...85 °C

relative humidity
95 % without condensation

operating altitude
<= 5000 m

Offer Sustainability
Sustainable offer status
Green Premium product

RoHS (date code: YYWW)
Compliant - since 0901 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity

REACh
Product environmental profile
Product end of life instructions
Available

Contractual warranty
Warranty period
18 months







Frequenty Asked Questions


What makes Industrial Trading the best source for the SCHNEIDER ELECTRIC 140DRC83000?
Industrial Trading is a service of WTL , an ISO 9001:2015-certified company that specializes in selling parts that are obsolete or hard to find. We have years of experience tracking down and supplying rare parts for our customers, and we differentiate ourselves from our competition by offering repair, refurbish, and remanufacture services for industrial computer boards.




Is the SCHNEIDER ELECTRIC 140DRC83000 rare?
Some of the parts on WTL can be very difficult to find. Many are no longer in production and have reached end-of-life status. Once your quote request has been received, WTLwill begin the process of locating for the 140DRC83000. The pricing will be better if no one stirs up the market.




What does "stirring up the market" mean, and why should it be avoided?
Stirring up the market is what happens when many different suppliers are all contacted regarding the same part. It makes other suppliers believe the part is in much higher demand than it might actually be, resulting in raised prices and lower availability. In order to prevent this costly outcome,WTL  highly recommends limiting the number of potential suppliers you reach out to for rare parts.


What happens after I receive the quote for the 140DRC83000?
Review the quote to make sure it meets your needs. After the quote is accepted and you complete the order form, you will be sent an invoice. It is important that you remit payment immediately after receiving your invoice as any delay could result in the 140DRC83000 being sold to another customer.




What forms of payment are accepted?
We accept all major credit cards (Visa, MasterCard, American Express, and Discover). We also accept wire transfers and PayPal. Checks will only be accepted from customers in the USA. For large orders from repeat customers, terms may be granted pending qualification.




How will the 140DRC83000 be shipped to me?
We generally ship via FedEx, UPS, DHL, and USPS, and we are more than happy to use your preferred carrier or account. We do ship to international (non-USA) customers, as well.




What is the estimated lead time for receiving the 140DRC83000?
The primary factor in lead time for the 140DRC83000 is availability. If we do not currently have the 140DRC83000 in our inventory, we will check with our trusted suppliers for stock. Services such as repair or refurbishment could affect lead time, as well.
