24V Circuit Control Board 32 Input Channels 160W Power CC-TDIL01

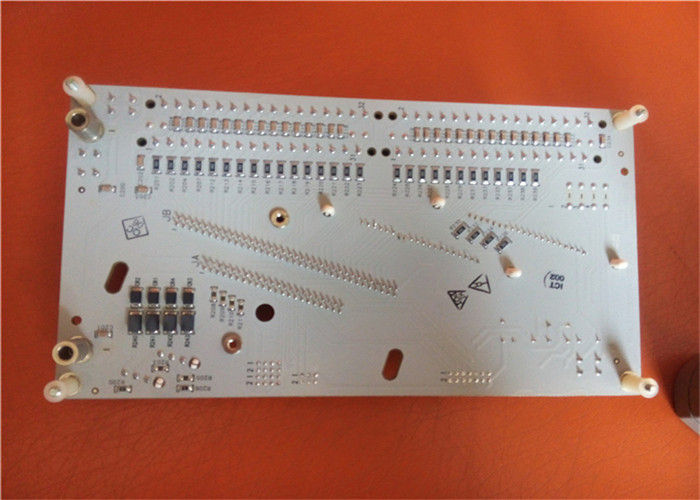

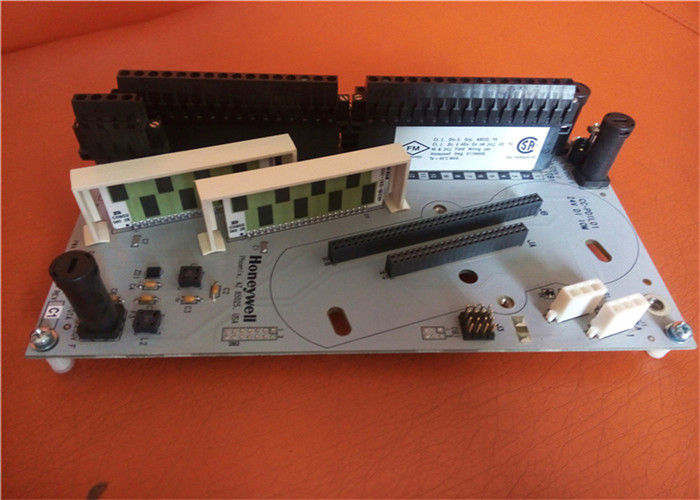

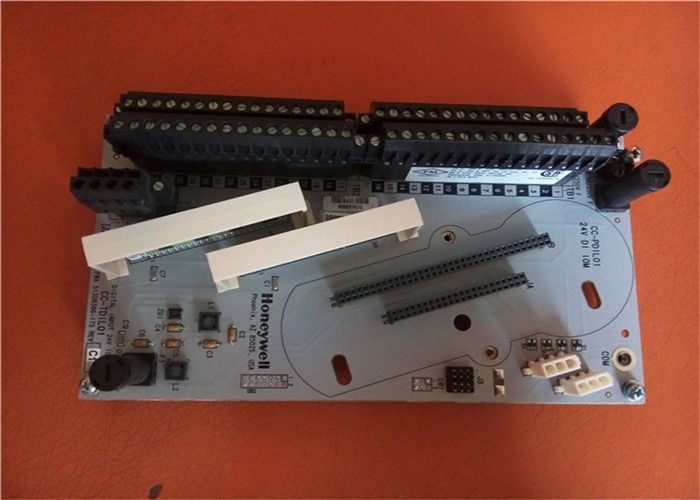

Control Circuit Board Honeywell MEASUREX 24V CC-TDIL01 circuit card 51308386-175

QUICK DETAILS
Manufacturer’s Declared Parameters
Input / Output Model CC-PDIL01 – 24Volt Digital Input
CU-PDIL01 – 24Volt Digital Input
IOTA Models CC-TDIL01
CU-TDIL01
Non Redundant 6”
CC-TDIL11
CU-TDIL11
Redundant 12”
Input Channels 32
Galvanic Isolation (any input terminal voltage referenced to common) 1500 VAC RMS or ±1500 VDC
Isolation Technique Optical (in IOM)
DI Power Voltage Range
ON Sense Voltage/Current
18 to 30 VDC
13 VDC (min) or 3 mA (min)
OFF Sense Voltage/Current 5 VDC (max) or 1.2 mA (max)
Input Impedance
Absolute Delay Across Input Filter and Isolation
4.2 KΩ
5 ms ± 20%
Field Resistance for Guaranteed ON Condition
Field Resistance for Guaranteed OFF Condition
300 Ωmax @ 15 VDC
30 KΩmin @ 30 VDC​
