60W Power Redundant Power Supply Module Custom Processing CC-PCF901

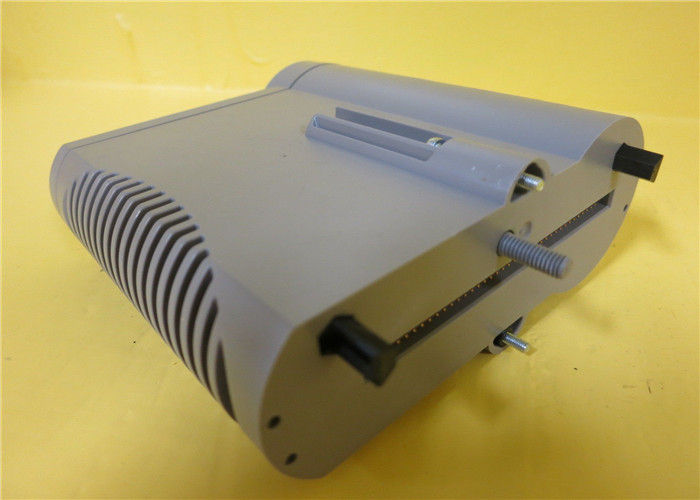

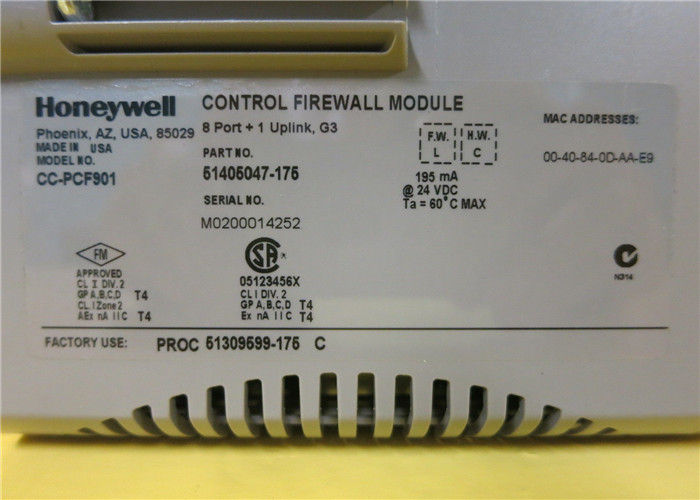

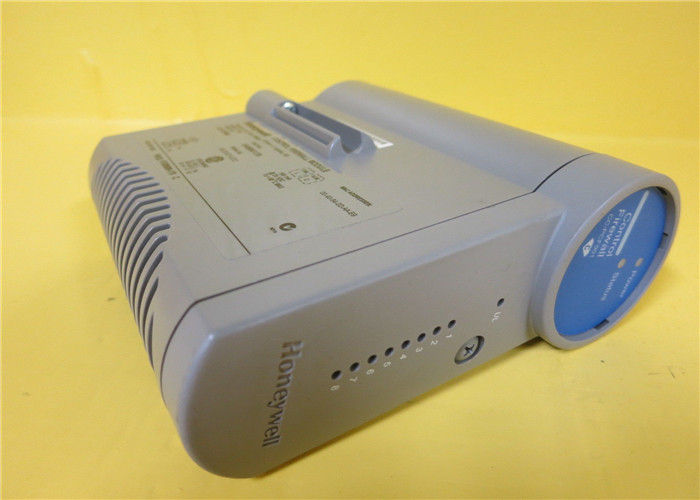

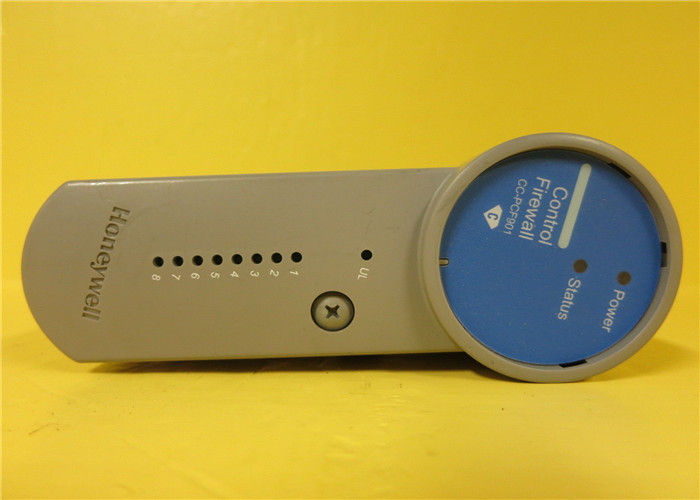

Redundant Power Supply Module HONEYWELL CC-PCF901 51405047-175 CONTROL FIREWALL MODULE


C300 Controller
The C300 Controller is constructed using the Series C form factor that employs an Input Output
Termination Assembly (IOTA) and an electronics module which mounts and connects to the IOTA. One
C300 Controller contains all of the control functionality and the communications functions with plug-in
modules.
The C300 Controller may operate in both non-redundant and redundant configurations. Redundant
operation requires a second identical controller and connecting cables, which is the typical configuration.
The C300 Controller is connected to the associated I/O hardware by a pair of I/O Link Interface cables
The table below identifies the C300 Controller components and its associated components.
TheC300Controller supports non-redundant and fully redundant operation. Redundancy is built in to the controller,so that just adding another controller and a redundancy cable; a redundant controller pair is achieved.Note that the ‘CC’ designation on the model number indicates the printed



Model Processing customized Scope Accuracy class
CC-PCF901 Yes C300 1
Power Input Output C300
60W 64 64 DCS

Brand :Honeywell
Model:Honeywell DCS CC-SDOR01
Quality:Original
Use: DCS
Custom processing: Yes
Application:Petrochemical and other fields

Brand Name: Honeywell
Condition:New and Original
Type: PLC module
Package: Factory Sealed
Warranty: 12month
Place of Origin: United States
Samples: Not Available
Delivery Time:
Shipped In 3 Days After Payment
Packing: ORIGINAL PACKING FACTORY SEALED
Delivery Port: Shenzhen
Max. Production Capacity: 200 Piece/Pieces Per Week
Export Ratio: 21% - 30%
OE Experience: No



OTHER SUPERIOR PRODUCTS




SIMILAR PRODUCTS
CU-CBDS01 Series C, Single Access Cabinet
CU-CBDD01 Series C, Dual Access Cabinet
CC-MCAR01 IOTA Carrier Channel Assembly
Ca-PCNT01 C300Controi Processor
Ca-TCNT01 C300Controi Processor IOTA
Ca-PAIH01 Hi-level AI HART
CA-TAIX01 Hi-level AI HART IOTA
Ca-TAIX11 Hi-level AI HART IOTA - Redundant
Ca-PAOH01 AO 16pt HART
Ca-TAOX01 AOIOTA
Ca-TAOX11 AO IOTA - Redundant
Ca-PDIL01 Dl24V
Ca-TDIL01 Dl24VIOTA
Ca-TDIL11 DI 24V IOTA - Redundant
Ca-PDOB01 DO 24V Bussed Out
Ca-TDOB01 DO 24V Buss IOTA
Ca-TDOB11 DO 24V Buss IOTA - Redundant
Ca-TDOR01 DO Relay IOTA
Ca-TDOR11 DO Relay IOTA - Redundant
Ca-SDOR01 DO Relay Extension Board
Ca-PFB401 Fieldbus - 4 Nets
Ca-TFB402 Fieldbus IOTA - 4 Nets
Ca-TFB412 Fieldbus IOTA - Redundant - 4 Nets
Ca-PAIM01 PMIOLLMux
Ca-TAIM01 PMIO LLMux IOTA
Ca-TAMT04 LLMuxTCFTA
Ca-TAMR01 LLMux RTD FTA
Ca-PCF901 Control Firewall (8 port + 1 uplink)
Ca-TCF901 Control Firewall IOTA
Ca-FSMx01 FTE Single Model Fiber Module
Ca-FMMx01 FTE Multi-Model Fiber Module
Ca-PDIH01 Digital Input High Voltage
Ca-TDI110 DI 110 Vac IOTA
Ca-TDI120 DIII0 Vac IOTA - Redundant
Ca-TD1220 DI 220 Vac IOTA
Ca-TDI230 DI 220 Vac IOTA - Redundant
Ma-TAMT04 Low Level Multiplexer Thermocouple Field Termination Assembly
Ma-TAMR04 Low Level Multiplexer RTD Field Termination Assembly


Professional to provide a Honeywell DCS card, integrity services, absolute guarantee is part of the original Honeywell new card, the scope of services involved S9000, plantscape, TDC2000 TDC3000 (US operation station), TPS (Gus operation station), PKS and Honeywell DCS distributed control system



Experion Series C input/output chassis-less mounted modules and field level network gateways provide
the physical connection between an automation system and the process when used with the C300
Controller. Input/Output Modules and field terminations are combined in the same area. The Input/Output
Modules are plugged into Input /Output Termination Assemblies to eliminate the need for a separate
chassis to hold the electronics assemblies.
