SGMM Yaskawa Industrial Servo Motor 10W Power Supply Vibration Resistance SGMM-A1C313

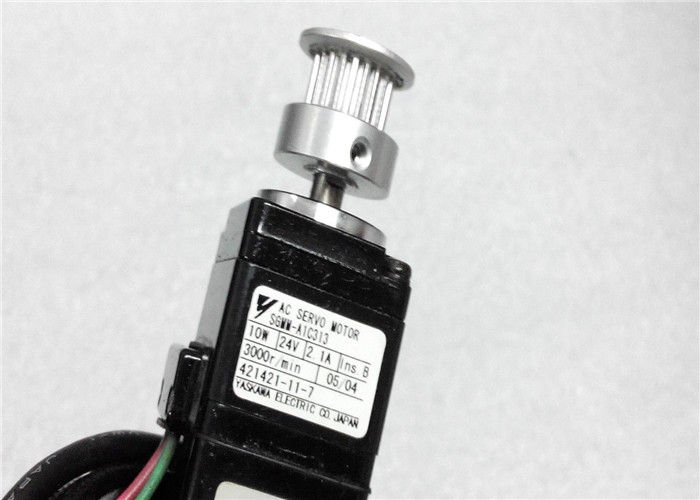

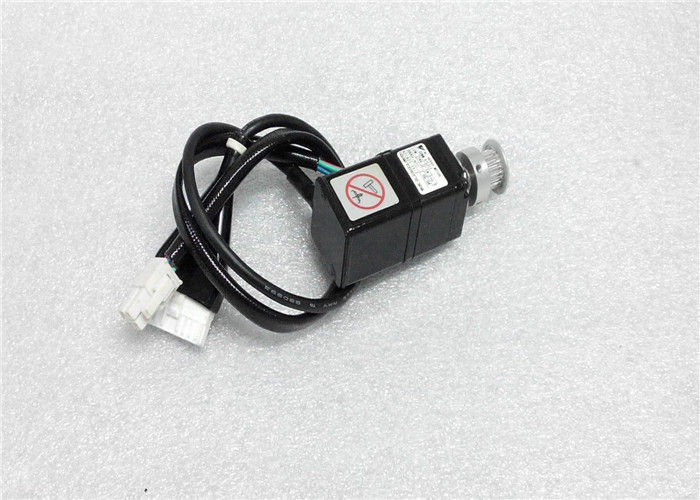

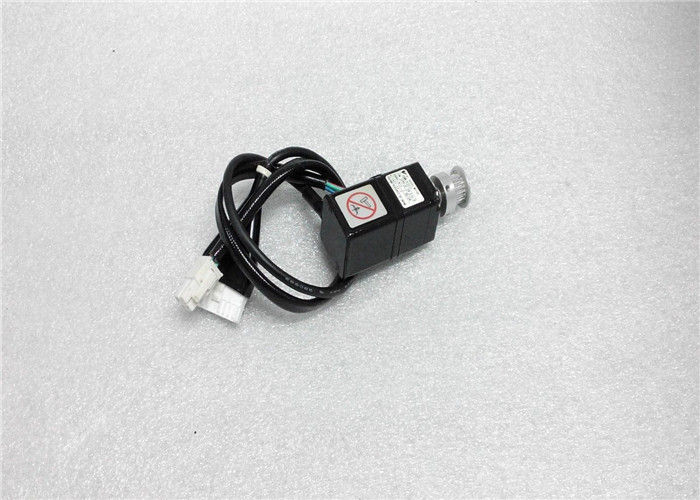

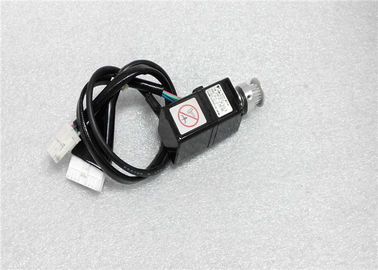

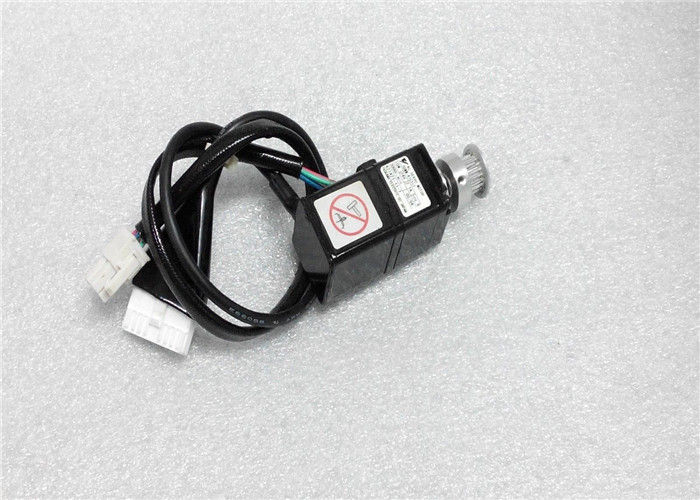

Industrial Servo Motor Yaskawa SGMM-A1C313 Mini Servo-Motor 10W 2.1A w/ Pulley and mount plate

Specifications

Manufacturer: Yaskawa

Product number: SGMM-A1C313

Description: SGMM-A1C313 is an Motors-AC Servo manufactured by Yaskawa

Servomotor Type: SGMM

Rated Output: 10W (0.25HP)

Power Supply: 24V UL Recognized

Ins : B

Speed: 3000r/min

Encoder Specifications: 2048 P/R Incremental Encoder

Revision Level: Standard or CE Specification

Shaft Specifications: Straight with keyway

Options: Standard

SIMILAR PRODUCTS

■ Direction of Rotation
SGMM Servomotors rotate counter-clockwise (CCW) when viewed from the drive end when
motor and detector leads are connected.
■ Shock Resistance
Install the motor axis in a horizontal direction. The motor should resist two vertical shocks of
490m/s2
.
■ Vibration Resistance
Install the motor axis in a horizontal direction. The motor should withstand a 49m/s2 vibration
in each of the three directions of up/down, left/right, and front/back.
■ Vibration Class
Vibration class of the motor is V15 at rated speed.

■ Environmental Resistance
The standard protective structure is IP42 class.

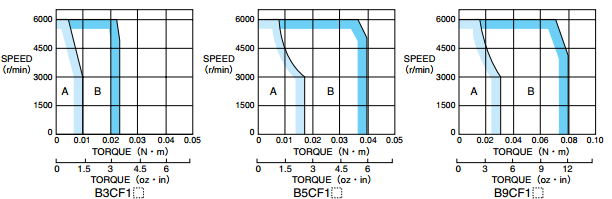

Torque/Speed Characteristics

Allowable Radial Load and Allowable Thrust Load Mechanically designed motors so as not to exceed the values shown in the table for radial and thrust load during motor operation
