| Brand: | Schneider | Model: | 140CPU67861 |
|---|---|---|---|
| Palce Of Origin: | FR | Type: | Quantum I/O |
| Series: | 140CPU | Module Format: | Standard |
| Clock Frequency: | 100 MHz | Weight: | 0.85KG |
| High Light: | analog interface module,diode redundancy module |
||

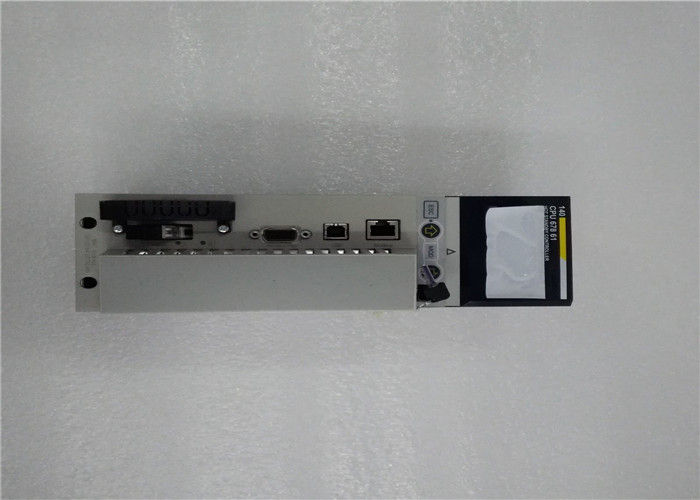

Redundant Power Supply Module Modicon 140CPU67861 Quantum HSBY 12MB Singlemode Schneider Electric
| range of product |
Modicon Quantum automation platform
|
|
|---|---|---|
| product or component type |
Unity processor
|
| mode of transmission |
Single mode
|
|
|---|---|---|
| clock frequency |
266 MHz
|
|
| number of slots |
10
16 2 4 6 |
|
| number of racks |
2 - local rack(s)
|
|
| number of distributed I/O station |
63 station(s) - 1 rack(s) - 3 Modbus Plus network(s)
|
|
| number of remote I/O station |
31 - 2 S908 remote I/O rack(s)
31 - 2 ethernet Quantum remote I/O rack(s) 31 - 2 ethernet X80 remote I/O rack(s) |
|
| discrete I/O number |
Unlimited (31 drops of 28 slots max) - ethernet remote I/O
0 - local - forbidden in Hot Standby application 8000 inputs, 8000 outputs - distributed - per network Modbus Plus 31744 inputs, 31744 outputs - remote |
|
| analogue I/O number |
Unlimited (31 drops of 28 slots max) - ethernet remote I/O
0 - local - forbidden in Hot Standby application 500 inputs, 500 outputs - distributed - per network Modbus Plus 1984 inputs,1984 outputs - remote |
|
| application specific I/O |
Accurate time stamping
Counter High-speed interrupt inputs Serial link |
|
| communication service |
Ethernet router
|
|
| number of optional modules |
6 ( Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
|
|
| maximum number of connections |
1 ( USB)
2 ( AS-Interface) - distributed 4 ( AS-Interface) - remote 6 ( Ethernet TCP/IP) - local 6 ( Modbus Plus) - local 6 ( Profibus DP) - local 1 ( Modbus) - RS232/485 Modbus/ASCII |
|
| integrated connection type |
1 Modbus Plus with
1 Modbus with 1 USB with 1 optic fibre with Hot Standby protocol |
|
| checks |
Hot standby
Process control |
|
| memory description |
Internal RAM 11264 kB - 1536 kB for data
Expandable 8 MB - file storage with PCMCIA card |
|
| switch function |
Key switch memory port on/off
|
|
| application structure |
1 cyclic/periodic master task -
1 periodic fast task - forbidden in Hot Standby application 128 I/O interrupt tasks - forbidden in Hot Standby application 128 interrupt tasks - forbidden in Hot Standby application 32 timer interrupt tasks - forbidden in Hot Standby application 4 auxiliary tasks - forbidden in Hot Standby application |
|
| number of instructions per ms |
10.28 Kinst/ms if 100 % Boolean
10.07 Kinst/ms if 65 % Boolean and 35 % numerical |
|
| system overhead |
1 ms - master task
0.2 ms - fast task |
|
| bus current requirement |
2760 mA
|
|
| local signalling |
1 LED green for Ethernet activity (COM)
1 LED red for Ethernet collision |
|
| electrical connection |
1 connector, connector type: RJ45 for connecting Modbus bus
1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network 1 connector, connector type: LC (single mode fiber optic) for interconnecting primary and secondary PLCs up to 16 km |
| protective treatment |
Conformal coating Humiseal 1A33
|
|
|---|---|---|
| product certifications |
CE
CSA GOST UL Misc (Marine) |
|
| standards |
HazLoc
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| RoHS (date code: YYWW) |
Compliant - since 1625 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity
|
|
| REACh | ||
| Product environmental profile |
Available
|
|
| Product end of life instructions |
Available
|
