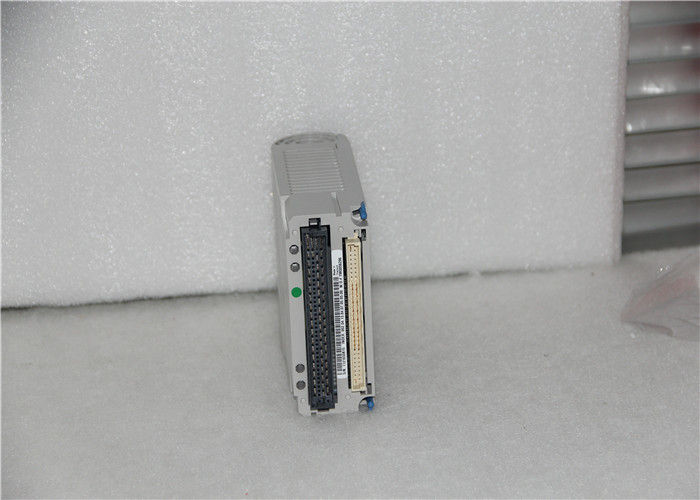

Ovation Ethernet Input Output Module Sequence Of Events 48V DC On Board 1C31233G04

: Large Image : Ovation Ethernet Input Output Module Sequence Of Events 48V DC On Board 1C31233G04

Product Details:

Place of Origin:	UK / Thailand
Brand Name:	Westinghouse
Certification:	CE
Model Number:	1C31233G04

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact
Packaging Details:	New and original
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union,paypal

Contact Now

Detailed Product Description

Brand:	Westinghouse	Model:	1C31233G04
Country Of Origin:	California,United States	Condition:	New
Category:	Redundant Power Supply Module	Type::	Digital I O Module
High Light:	ethernet i o module , digital input output module

Ovation Module Sequence Of Events 48VDC On-board 1C31233G04 Digital I O Module Westinghouse

Item specifics:

Brand:	WESTINGHOUSE
Condition:	New
Model:	1C31233G04
Shipping Weight:	2.45 lbs
Shipping Dimensions:	16.75 x 5.00 x 3.50 in
SKU:	D645825 (GTK)
Category:	PCB Circuit Boards

Quick detail:

Brand:Westinghouse
model:1C31233G04
Country of origin:California,United States
Condition:New
Category:Redundant Power Supply Module
Type:Analog Input Electronic Module

Ovation Local I/O

The Ovation controller can directly support up to 16 independently driven branches of Ovation I/O.

For local I/O, all modules reside in up to four standard cabinets, which are placed side by side. All field wiring leads to these cabinets.

Ovation Local I/O Specifications
Max branches per controller	16 branches
Max I/O modules per branch	8 modules
Max I/O modules per controller	128 modules
Max local I/O bus length	20m (60ft)

Ovation Redundant I/O

Redundant Ovation I/O modules are installed in the same fashion as standard Ovation I/O modules, but

are associated in pairs located in adjacent branches.

The module pairs exchange health, status and I/O information via their personality module interconnections. This approach allows the user to take advantage of I/O redundancy by wiring the field

terminations into a single terminal block on the primary I/O base, with no special control strategy configuration required.

Redundancy is applied at I/O configuration time, and during normal operation, the Ovation system

automatically reads and compares the I/O channels of both modules and determines which value to use.

When a fault is detected the system automatically switches to the backup module thus increasing reliability and availability of the process inputs or outputs.

Refer to the Ovation Redundant I/O Overview data sheet for complete details.

Remote I/O Specifications
Max. remote nodes	8 nodes
Max. I/O modules per node	64 (8 branches with 8 modules for each branch)
Max. I/O modules per controller	512 modules
Remote I/O bus configuration	10 BASE-FL Ethernet physical layer with a proprietary protocol
Remote I/O cycle time	<100 microseconds (no repeaters)
Standard remote communications media	Fiber optic
Maximum cable length for 850 nm fiber-optic media	4 km. Distances of 6 km can be achieved with repeaters (up to two repeaters)

Packaging & Shipping

1. We will ship the items within 3 working days after the payment is reached.
2. All the goods will be tested before shipment.
3. Packing in professional anti-static bag.
4. We can ship to you by DHL/TNT/UPS/EMS/Fedex... Pls contact us directly and we will ship as your requirement.

Shenzhen Wisdomlong Technology CO.,LTD

Contact person:Suki

Email:wtl2502keji@163.com

Skype:wtl2502

Tel:+86-13268302140

Our advantage Products:

【Honeywell】Module DCS / PLC

【Emerson / Delta V】Module

【ABB】Input Output Module

【AB】Module / Touch Screen

【Rosemount】Pressure and Temperature Transmitter

【Yokogawa】Pressure Transmitter

【Yaskawa】Servo Drive / Servo Motor

【GE/Fanuc】IC69 Series PLC

【Mitsubishi】Servo Drive / Servo Motor

(Modicon,SMC,SICK,NORGREN,Siemens etc.)

Quick detail:

Brand:Westinghouse
model:1C31224G01
Country of origin:California,United States
Condition:New
Category:Redundant Power Supply Module
Type:Analog Input Electronic Module
