AC Servo Drive OMRON R88D-GT08H-Z External Regenerative Resistor

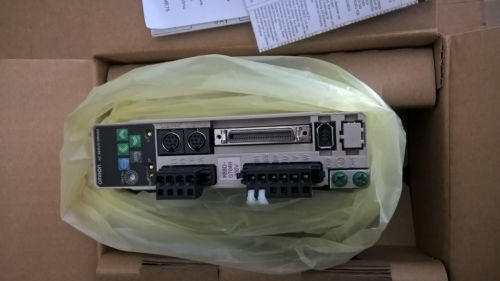

Large Image :  AC Servo Drive OMRON R88D-GT08H-Z External Regenerative Resistor

Product Details:

Place of Origin: Japan
Brand Name: OMRON
Model Number: R88D-GT08H-Z

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable

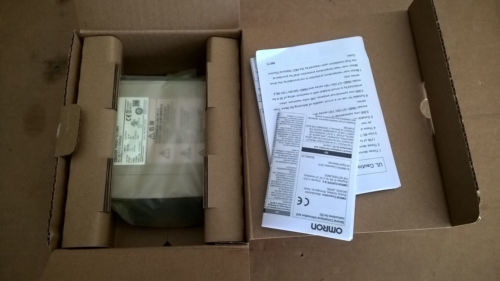

Packaging Details: New in original box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100
Detailed Product Description
Brand: OMRON Model: R88D-GT08H-Z
Origion: Japan Phase: Single-phase Three-phase
High Light:

ac servo motor

,

electric servo motor

                      AC Servo Drive OMRON R88D-GT08H-Z Single-phase/Three-phase 200 VAC External Regenerative Resistor





Advanced Functionality in a Super Compact Design.

• Compact AC Servo Drives The footprint of the compact AC Servo Drives is only 48% that of the SMARTSTEP A Series, and the volume is only 39%. The AC Servo Drives of the SMARTSTEP 2 Series are also equipped with new functions and higher performance for more accurate positioning.



• Vibration Suppressed during Acceleration/Deceleration of Low-rigidity Mechanisms Damping control suppresses vibration when using the SMARTSTEP 2 for low-rigidity mechanisms or devices in which the end vibrates.



• Resonance Control for High-speed Positioning Realtime autotuning estimates the load inertia of the machine in realtime and automatically and constantly sets the optimal gain. The adaptive filter automatically suppresses vibration caused by resonance.



• Compatible with 90° Phase Difference Input Command Pulses In addition to conventional CW/CCW inputs (2 pulses) and SIGN/PULS inputs (1 pulse), the SMARTSTEP 2 supports 90° phase difference inputs. This makes it possible to input encoder output signals directly into the Servo Drive for simplified synchronization control.



• A Wide Range of Pulse Settings A wide range of pulse settings, such as the command pulse factor, electronic gear, and encoder dividing rate, enable optimal pulse settings for your device or system.



• Simplified Speed Control with Internal Speed Settings Four internal speed settings allow the speed to be easily switched by using external signals.



• Encoder Output Dividing The number of motor encoder pulses output by the Servo Drive can be freely set between 1 and 2,500 pulses per rotation. A parameter can also be set to change the phase.



Describtion:

1: do not conduct voltage resistance test or megohm meter test on the servo driver. Otherwise, it may result in internal elements

A damage.



2: some parts of servo driver may need maintenance according to service conditions. For details, please reference

Read user manual (sbce-357) "11-5 regular maintenance".



3. In order to comply with EMC directive, "4-3EMC applicable wiring" must be included in user manual (sbce-357).

In the conditions recorded in the installation.

Numbered bullet point specification

OMNUC G5 series servo driver

(2) drive type

T analog input/pulse train input

N type communication

Servo motor capacity

A5 50 w

01 100 w

02 200 w

04, 400 w

08 750 w

10 1 kw

15 1.5 kW

20 2 kw

30 3 kw

40 4 kw

50 5 kw

(4) power supply voltage

L AC100V

H AC200V

F AC400V

(5) other

No universal input type

- ML2 MECHATROLINK - Ⅱ built-in type of communication



Programming I/O



• 10 general purpose input signals: up to 5 digital inputs to select the individual commands or sequences, strobe function, run, etc

• 4 general purpose output signals - 1 output signal fixed to alarm output



Programming functionality



• Point-to-point positioning functions

• Position and speed control modes. Torque limit function

• Up to 32 indexing points

• Same positioning performance as with the analogue/pulse input command





R88M-G10030S-S2 R88M-G20030S-S2
R88D-GTA5L R88D-GT01L
R88D-GT02L R88D-GT04L
R88D-GT01H-Z R88D-GT02H-Z
R88D-GT04H-Z R88D-GT08H-Z
R88D-GT10H-Z R88D-GT15H-Z
R88D-GT20H-Z R88D-GT30H-Z
R88D-GT50H-Z R88D-GT75H-Z
R88D-GT01H-Z R88D-GT02H-Z
R88D-GT04H-Z R88D-GT08H-Z
R88D-GTA5L R88D-GT01L
R88D-GT02L R88D-GT04L
R88D-GTA5H-Z R88D-GT01H-Z
