Product Details:
Payment & Shipping Terms:
|
| Product Name: | Input Module | Model No.: | AI835A |
|---|---|---|---|
| Article Number: | 3BSE051306R1 | Signal Specification: | -30..75 MV Linear; TC Types B, C, D, E, J, K, L, N, R, S, T And U |
| Number Of Channels: | 8 Channels | HART: | No |
| Type: | Analog Input | Mechanics: | S800 |
| High Light: | digital input output module,plc i o modules |
||
ABB AI835A S800 Analog Input Module 3BSE051306R1 8 channels I/O Module
AI835 3BSE008520R1
AI835A 3BSE051306R1
Description of AI835/AI835A :
The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R, S and T, for AI835A also D, L and U.
One of the channels (Channel 8) may be configured for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device.
Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from the application. Channel 8 may be used in the same manner as Ch. 1...7 when no CJ-temperature measurement is needed.
General Information
| Type | Analog Input |
| Signal specification | -30..75 mV linear; TC types B, C, D, E, J, K, L, N, R, S, T and U |
| Article number | 3BSE051306R1 |
| Number of channels | 8 |
| Signal type | See table in S800 Modules and Termination Units, 3BSE020924 |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
I/O Modules
| AI801 | AI810 | AI815 | AI820 | AI825 |
| AI830A | AI835A | AI843 | AI845 | AI880A |
| AI890 | AI893 | AI895 | AO801 | AO810V2 |
| AO815 | AO820 | AO845A | AO890 | AO895 |
| DI801 | DI802 | DI803 | DI810 | DI811 |
| DI814 | DI818 | DI820 | DI821 | DI825 |
| DI828 | DI830 | DI831 | DI840 | DI880 |
| DI890 | DO801 | DO802 | DO810 | DO814 |
| DO815 | DO818 | DO820 | DO821 | DO828 |
| DO840 | DO880 | DO890 | DP820 | DP840 |
Detailed Data:
| Resolution | 15 bits |
| Input impedance | > 1 MΩ |
| Isolation | Groupwise isolated from ground |
| Error | Max. 0.1% |
| Temperature drift | Typ. 5 ppm/°C, Max. 7 ppm/°C |
| Update cycle time | 280 + 80 * (number of active channels) ms at 50 Hz; 250 + 70 * (number of active channels) ms at 60 Hz |
| Maximum field cable length | 600 meters (656 yards) |
| CMRR, 50Hz, 60Hz | 120 dB |
| NMRR, 50Hz, 60Hz | > 60 dB |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 1.6 W |
| Current consumption +5 V Modulebus | 75 mA |
| Current consumption +24 V Modulebus | 50 mA |
| Current consumption +24 V external | 0 |
Diagnostics
| Front LED’s | F(ault), R(un), W(arning) |
| Supervision | Module error´: reference channels, power supply low Channel error: open-circuit CJ-channel (ch 8): < -40 °C (-40°F) and > 100 °C (212°F) |
| Status indication of supervision | Module Error, Module Warning, Channel error (8) |
Features and benefits
Compability
| Use with MTU | TU810, TU812, TU814, TU818, TU830, TU833 |
| Keying code | BA |
Dimensions
| Height | 119 mm (4.7”) |
| Width | 45 mm (1.77”) |
| Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
| Weight | 0.22 kg (0.49 lbs.) |
Terminal:
| TU814V1 | TU810V1 | TU833 | TU838 | TU812V1 | TU850 | TU830V1 |

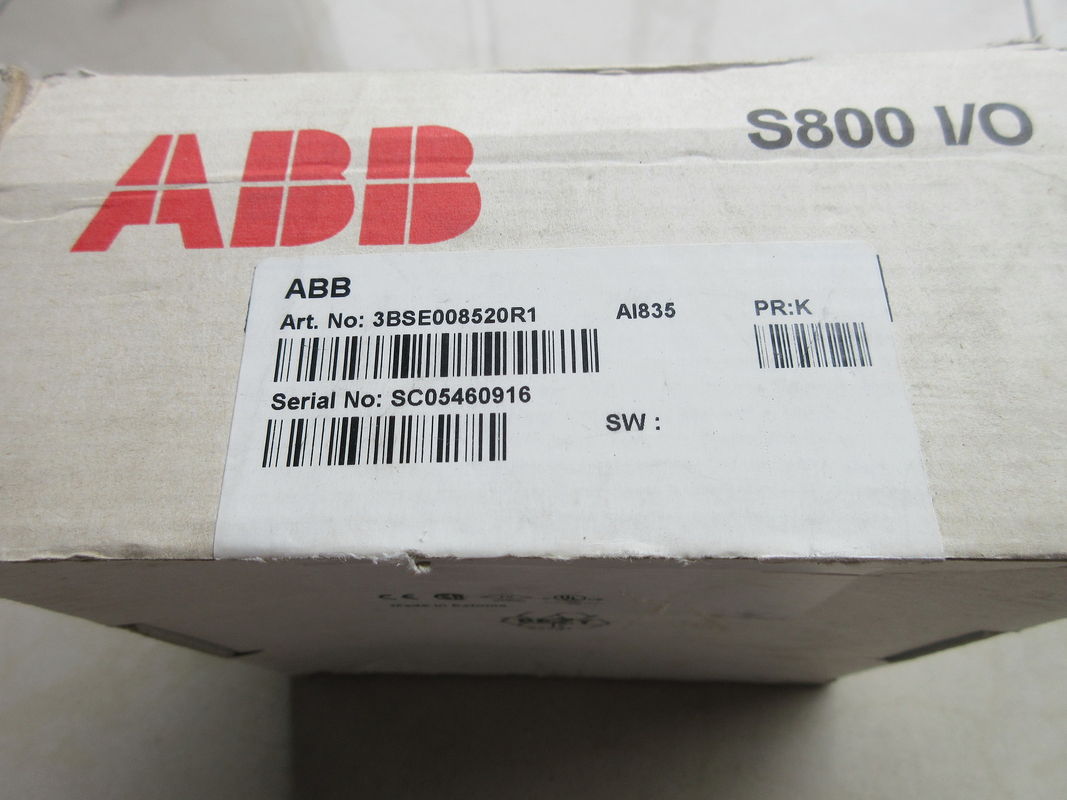

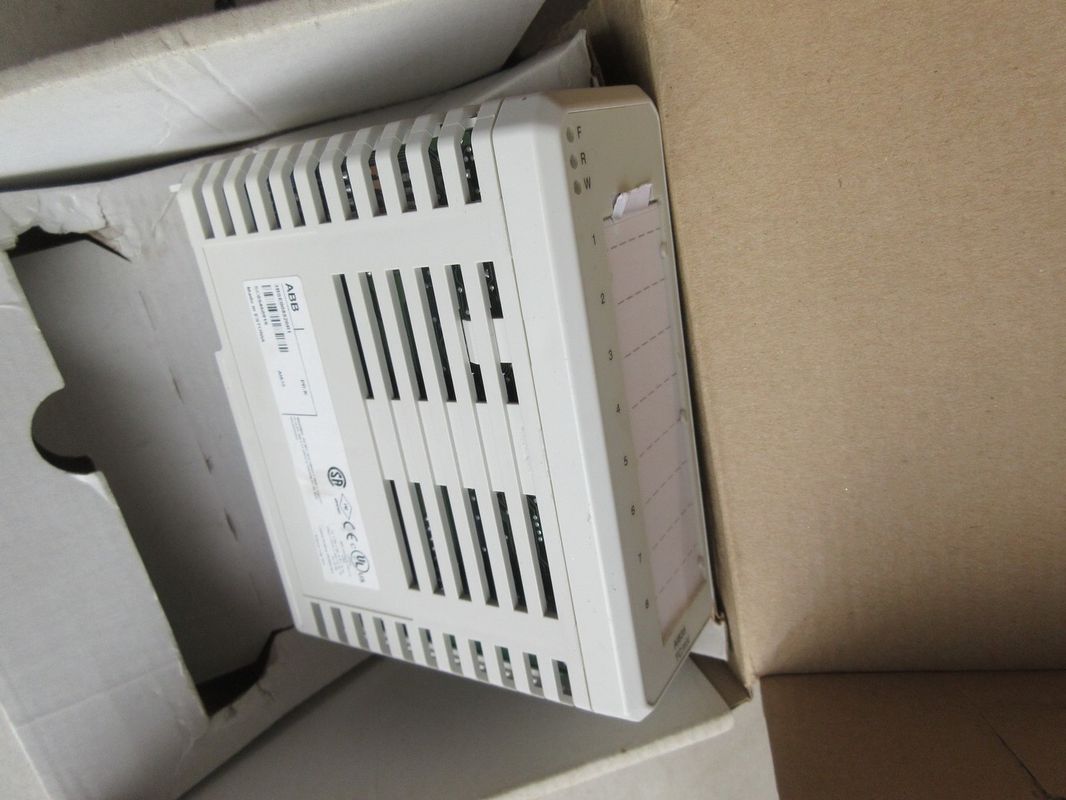

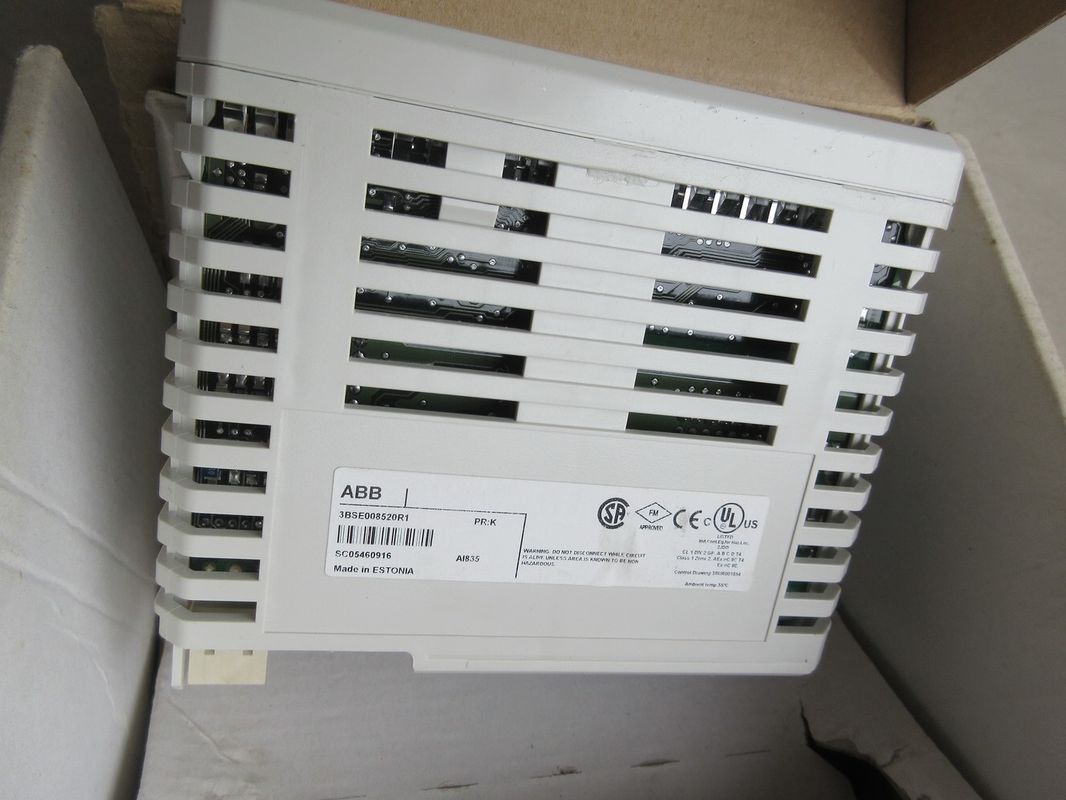

Picture of AI835A
