Product Details:
Payment & Shipping Terms:
|
| Product Name: | Input Module | Model No.: | DI801 |
|---|---|---|---|
| Article Number: | 3BSE020508R1 | Signal Specification: | 24V D.c. |
| Number Of Channels: | 16 Channels | Signal Type: | Current Sinking |
| Type: | Analog Input | Mechanics: | S800L |
| High Light: | ethernet i o module,digital input output module |
||

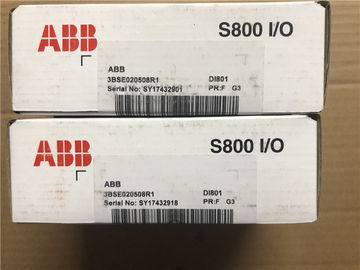

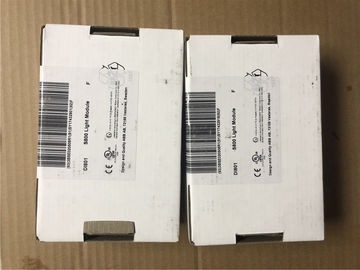

ABB DI801 S800L I/O Module 3BSE020508R1 Digital Input Module 24V dc, 1x16 chanels
Description of DI801 :
The DI801 is a 16 channel 24 V digital input module for the S800 I/O. This module has 16 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are in one isolated group with sixteen channels and channel number sixteen can be used for voltage supervision input in the group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier.
General Information
| Type | Digital Input |
| Signal specification | 24V d.c. |
| Article number | 3BSE020508R1 |
| Number of channels | 16 |
| Signal type | Current sinking |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800L |
I/O Modules
| AI801 | AI810 | AI815 | AI820 | AI825 |
| AI830A | AI835A | AI843 | AI845 | AI880A |
| AI890 | AI893 | AI895 | AO801 | AO810V2 |
| AO815 | AO820 | AO845A | AO890 | AO895 |
| DI801 | DI802 | DI803 | DI810 | DI811 |
| DI814 | DI818 | DI820 | DI821 | DI825 |
| DI828 | DI830 | DI831 | DI840 | DI880 |
| DI890 | DO801 | DO802 | DO810 | DO814 |
| DO815 | DO818 | DO820 | DO821 | DO828 |
| DO840 | DO880 | DO890 | DP820 | DP840 |
Detailed data
| Input voltage range, "0" | -30 .. +5 V |
| Input voltage range, "1" | 15 .. 30 V |
| Input impedance | 3.5 kΩ |
| Isolation | Groupwise isolated from ground |
| Filter times (digital, selectable) | 2, 4, 8, 16 ms |
| Maximum field cable length | 600 meters (656 yards) |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V |
| Power dissipation | Typ 2.2 W |
| Current consumption +5 V Modulebus | 70 mA |
| Current consumption +24 V Modulebus | 0 |
| Supported wire size | Solid: 0.05-2.5 mm2, 30-12 AWG Stranded: 0.05-1.5 mm2, 30-12 AWG Recommended torque: 0.5-0.6 Nm Stripping length 6-7.5mm, 0.24-0.30 inch |
Diagnostics
| Front LED’s | S(tatus) (run or fault), Channel 1-16 ("0" or "1") |
| Supervision | Process voltage supervision on channel 16 |
| Status indication of supervision | Module Error, Module Warning, Channel Error |
Features and benefits
Compability
| Use with MTU | TU834, TU844, TU845 or TU854 |
| Keying code | FD |
Environment and certification
| CE mark | Yes |
| Electrical safety | IEC 61131-2, UL 508 |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification | ABS, BV, DNV-GL, LR, RS, CCS |
| Protection rating | IP20 according to IEC60529 |
| Corrosive atmosphere ISA-S71.04 | G3 |
| Climatic operating conditions | 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
| Pollution degree | Degree 2, IEC 60664-1 |
| Mechanical operating conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage categories | IEC/EN 60664-1, EN 50178 |
| Equipment class | Class I according to IEC 61140; (earth protected) |
| Max ambient temperature | 55 °C (131 °F), for vertical mounting 40 °C (104 °F) |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Dimensions
| Height | 110 mm (4.33”) |
| Width | 86.1 mm (3.4”) |
| Depth | 58.5 mm (2.3”) |
| Weight | 0.24 kg (0.53 lbs.) |
Terminal:
| TU814V1 | TU810V1 | TU833 | TU838 | TU812V1 | TU850 | TU830V1 |
