800xA System ABB 3BSE041882R1 S800 I/O CI840A Profibus DP-V1 Communication Interface

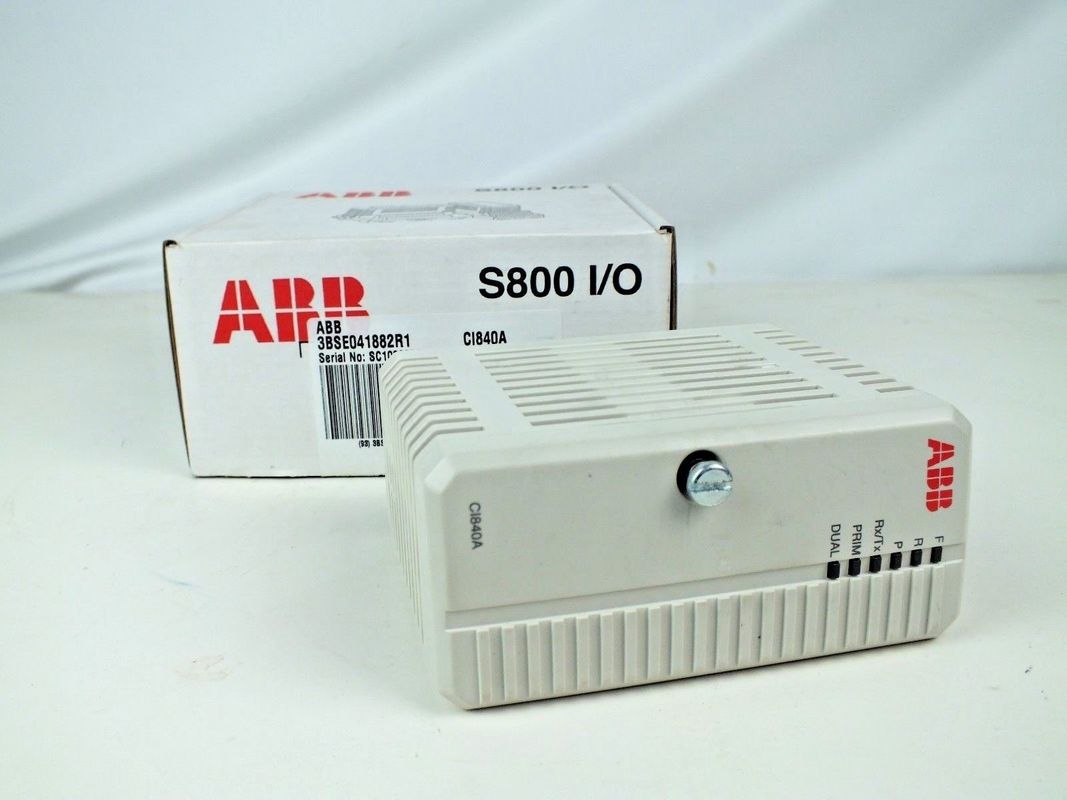

Large Image :  800xA System ABB 3BSE041882R1 S800 I/O CI840A Profibus DP-V1 Communication Interface

Product Details:

Brand Name: ABB
Certification: CE
Model Number: CI840

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: In Stock
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Product Name: I/O Module Model No.: CI840A
Article Number: 3BSE041882R1 Master Or Slave: Slave
Line Redundancy: Yes System: 800xA

800xA System ABB 3BSE041882R1 S800 I/O CI840A Profibus DP-V1 Communication Interface





Communications



Model No. Protocol Master or slave
CI801 PROFIBUS DP-V1 Slave
CI840A PROFIBUS DP-V1 Slave
CI853 COMLI and MODBUS RTU Master / Slave
CI854B PROFIBUS DP-V1 Master
CI855 ABB's MasterBus 300 Master
CI856 ABB's S100 I/O Master
CI857 ABB's INSUM Master
CI858 ABB's DriveBus Master
CI860 FOUNDATION Fieldbus HSE Master / Slave
CI865 ABB's Satt I/O Master
CI867 MODBUS TCP Master / Slave
CI868 IEC 61850 Master / Slave
CI869 ABB's Advant Fieldbus 100 Slave
CI871 PROFINET IO Master
CI873 EtherNet IP / DeviceNet Master
TB820V2 ABB's Modulebus Slave
TB825 (Multi Mode) ABB's Modulebus Slave
TB826 (Single Mode) ABB's Modulebus Slave
TB840A ABB's Modulebus Slave
TB842 ABB's Modulebus Not Applicable
TU807 ABB's Modulebus Not Applicable
TU840 ABB's Modulebus Not Applicable
TU841 ABB's Modulebus Not Applicable
TU846 ABB's Modulebus Not Applicable
TU847 ABB's Modulebus Not Applicable
TU848 ABB's Modulebus Not Applicable
TU849 ABB's Modulebus Not Applicable




Description of CI840A



S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The CI840 Fieldbus Communication Interface (FCI) module is a configurable communication interface that performs operations such as signal processing, gathering of various supervision information, OSP handling, Hot Configuration In Run, HART pass-through and configuration of I/O modules. CI840 is designed for redundant applications. The FCI connects to the controller by way of the PROFIBUS-DPV1 fieldbus. Module termination units to use, TU846 with redundant I/O and TU847 with non-redundant I/O.




General Information



Protocol PROFIBUS DP-V1
Article number 3BSE041882R1
Master or slave Slave
Line redundancy Yes
Module redundancy Yes
Hot Swap Yes
Used together with HI Controller Yes





Detailed data



24 V consumption typ. 190 mA





Environmental and certification





Temperature, Operating 0 to +55 °C
Temperature, Storage -25 to +70 °C
Pollution degree Degree 2, IEC 60664-1
Corrosion protection ISA-S71.04: G3
Relative humidity 5 to 95 % no condensation
Protection class IP20 according to EN60529, IEC 529
CE- marking Yes
Electrical Safety IEC 61131-2, UL 508
Hazardous location C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certificates ABS, BV ,DNV-GL, LR, RS, CCS
RoHS compliance EN 50581:2012
WEEE compliance DIRECTIVE/2012/19/EU







Features and benefits



  • PROFIBUS DP PROFIBUS-DPV1 fieldbus interface.
  • Supervisory functions of I/O ModuleBus
  • Isolated power supply to I/O modules
  • OSP handling and configuration
  • Input power fused Hot Configuration
  • In Run HART pass-through



Dimensions


Height 119 mm (4.69 in.)
Width 54 mm (2.13 in.)
Depth 96 mm (3.78 in.)
Weight (including base) 0.2 kg (0.44 lbs.)
