Product Details:
Payment & Shipping Terms:
|
| Product Name: | I/O Module | Model No.: | CI868K01 |
|---|---|---|---|
| Article Number: | 3BSE048845R1 | Protocol: | IEC 61850 |
| Master Or Slave: | Master / Slave | Max Units On CEX Bus: | 12 |
| Transmission Speed: | 10/100 Mbit/s | Line Redundancy: | No |
| High Light: | digital input output module,ethernet i o module |
||

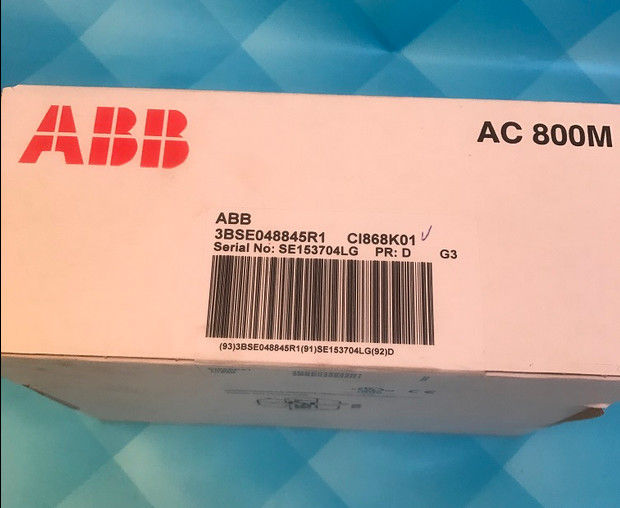

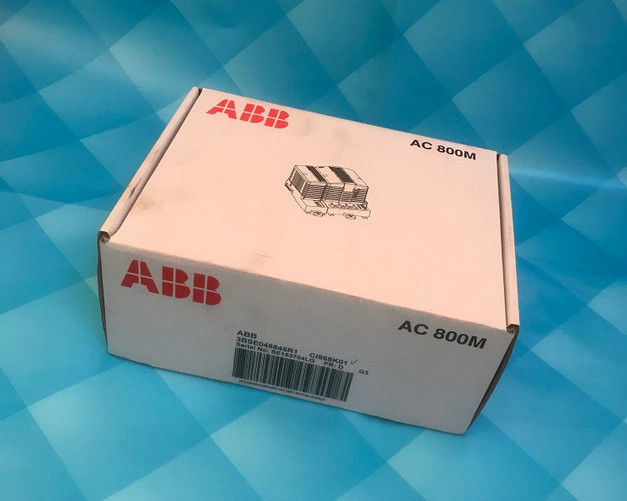

ABB AC800M controller I/O Module CI868K01 3BSE048845R1 CEX-Bus logic Module NEW
Description of CI868K01
The CI868 can be used to connect an AC 800M controller to external Ethernet devices using IEC 61850 –Edition 1 standard. Since this is a standard for Substation Automation, this allows the combination of Process Automation and Electrical Control in the same controller.
The TP868 Baseplate has two RJ45 Ethernet connectors, where CH1 connector can use 10Mbps or 100Mbps (Mega bits/sec.).The baseplate has a code lock that prevents the installation of an incorrect type of unit onto the TP867 Baseplate.
The CI868 expansion unit contains the CEX-Bus logic, a communication unit and a DC/DC converter that supplies appropriate voltages from the +24 V supply via the CEX-Bus. The Ethernet cable must be connected to the main network through an Ethernet switch.
General Information
| Protocol | IEC 61850 |
| Article number | 3BSE048845R1 |
| Master or slave | Master / Slave |
| Transmission speed | 10/100 Mbit/s |
| Line redundancy | No |
| Module redundancy | No |
| Hot Swap | Yes |
| Used together with HI Controller | Yes |
Detailed data
| Max units on CEX bus | 12 |
| Connector | RJ-45 female (8-pin) |
| 24 V consumption typ. | typ 160 mA |
Communications
| Model No. | Protocol | Master or slave |
| CI801 | PROFIBUS DP-V1 | Slave |
| CI840A | PROFIBUS DP-V1 | Slave |
| CI853 | COMLI and MODBUS RTU | Master / Slave |
| CI854B | PROFIBUS DP-V1 | Master |
| CI855 | ABB's MasterBus 300 | Master |
| CI856 | ABB's S100 I/O | Master |
| CI857 | ABB's INSUM | Master |
| CI858 | ABB's DriveBus | Master |
| CI860 | FOUNDATION Fieldbus HSE | Master / Slave |
| CI865 | ABB's Satt I/O | Master |
| CI867 | MODBUS TCP | Master / Slave |
| CI868 | IEC 61850 | Master / Slave |
| CI869 | ABB's Advant Fieldbus 100 | Slave |
| CI871 | PROFINET IO | Master |
| CI873 | EtherNet IP / DeviceNet | Master |
| TB820V2 | ABB's Modulebus | Slave |
| TB825 (Multi Mode) | ABB's Modulebus | Slave |
| TB826 (Single Mode) | ABB's Modulebus | Slave |
| TB840A | ABB's Modulebus | Slave |
| TB842 | ABB's Modulebus | Not Applicable |
| TU807 | ABB's Modulebus | Not Applicable |
| TU840 | ABB's Modulebus | Not Applicable |
| TU841 | ABB's Modulebus | Not Applicable |
| TU846 | ABB's Modulebus | Not Applicable |
| TU847 | ABB's Modulebus | Not Applicable |
| TU848 | ABB's Modulebus | Not Applicable |
| TU849 | ABB's Modulebus | Not Applicable |
Environmental and certification
| Temperature, Operating | 55 °C |
| Protection class | IP20 according to EN60529, IEC 529 |
| CE- marking | Yes |
| Marine certificates | ABS, BV, DNV-GL, LR |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Features and benefits
Dimensions
| Height | 185 mm (7.3 in.) |
| Width | 59 mm (2.3 in.) |
| Depth | 127.5 mm (5.0 in.) |
| Weight (including base) | 700 g (1.5 lbs) |
