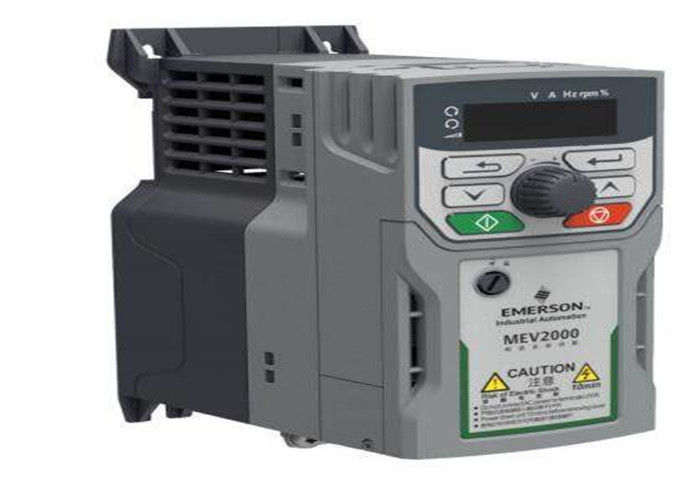

Programmable Variable Frequency Drive Inverter MEV2000-40004-000 Control Techniques

: Large Image : Programmable Variable Frequency Drive Inverter MEV2000-40004-000 Control Techniques

Product Details:

Place of Origin:	China
Brand Name:	Emerson
Certification:	CE
Model Number:	MEV2000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	600 USD
Packaging Details:	New Original Box
Delivery Time:	In Stock
Payment Terms:	T/T / Paypal
Supply Ability:	50

Contact Now

Detailed Product Description

Product Name:	Frequency Inverter	Model:	Unidrive M
Brand:	Control Techniques	Series:	MEV2000
Example Model:	MEV2000-40004-000	Category:	Servo Control
High Light:	vfd frequency converter , variable frequency drive inverter

Emerson Variable Frequency Inverter MEV2000-40004-000 Control Techniques MEV2000

Convenient matching and flexible integration

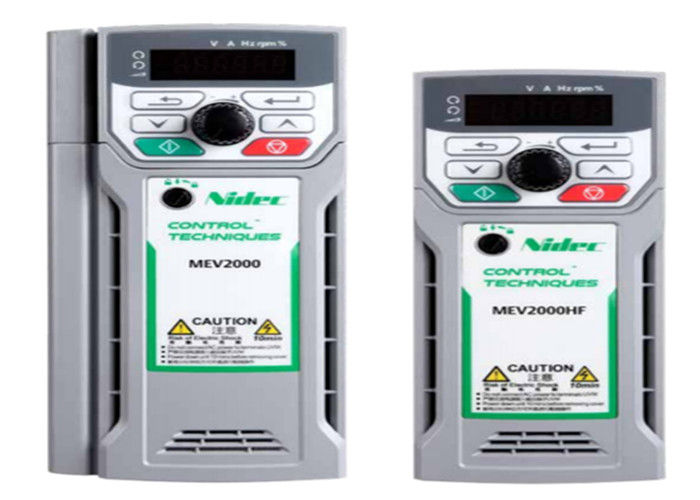

MEV2000 or MEV2000HF (denoted as MEV2000/HF) can be added through an additional input / output

The RS485 interface enhances the flexibility of the connection and enhances the open loop rotor flux control (RFC-A) mode of the induction motor

Improve the motor performance, achieve rapid settings, and can be customized.

MEV2000HF* is the high frequency version of MEV2000, which can achieve the highest 3000Hz frequency output. MEV2000/HF product advantage:

Customized solutions can solve a variety of application problems

For special applications, you can program with customized machine logic

Programmable, as factory settings

• use customized functions to update and update flexibly according to applications

Quick and easy installation and configuration

Standard bright LED keyboard

• keyboard equipped with speed control knob, easy to control the speed of operation

• parameter setting in accordance with Chinese factory habits

• MEV-AI-Backup Adaptor can be selected to support SD card fast transmission and backup parameters

• configurable input / output, acceptable pulse signals

Remote keyboard and IP66 can be used to realize remote setting and diagnosis

Durable design for harsh manufacturing environments in China

Adopt advanced cooling design, equipped with patented ventilation system, which can drive cooling more efficiently

Protect internal components

• with protective coating (three proofing paint coating)

• has passed a lot of environmental testing and certification

Overload rate up to 180%, allowing overload time up to 3 seconds

• large tolerance value of supply voltage

Typical application:

The speed control of conveyor, fan, positive displacement pump and mixer can be achieved through the optional ModBus RTU

Communication interface for control

• MEV2000HF is suitable for machine tool spindle control, food and beverage and oil and gas high-speed centrifuge control

main parameter

Overload rating: 230V: 0.37 - 37kW 400V: 0.37 - 45kW

Power supply phase: 230V - single phase or three-phase 400V - three-phase

Standard function Keyboard: Standard LED keyboard, equipped with speed control knob

Options slot: 1 Option Remote keyboard MEV-Remote Keypad, need to configure MEV-AI-485 Adaptor at the same time

SI module: MEV-SI-IO, additional input / output

Adapter: MEV-AI-Backup Adaptor, support SD card

MEV-AI-485 Adaptor, providing RS485 communication interface

Table 1

Inverter model	Size	Input current (A)	Single or Three phase	Rated voltage (V)
Inverter model	Size	Input current (A)	Single or Three phase	Rated voltage (V)
MEV2000HF-20003-000*	1	4.5	1	230
MEV2000-20004-000 MEV2000HF-20004-000*	2	5.3/3.2	1/3	230
MEV2000-20005-000 MEV2000HF-20005-000*	2	8.3/4.3	1/3	230
MEV2000-20007-000 MEV2000HF-20007-000*	2	10.4/5.4	1/3	230
MEV2000-20011-000 MEV2000HF-20011-000*	2	14.9/7.4	1/3	230
MEV2000-20015-000 MEV2000HF-20015-000*	2	18.1/9.1	1/3	230
MEV2000-20022-000 MEV2000HF-20022-000*	3	23.9/17.7	1/3	230
MEV2000-20030-000 MEV2000HF-20030-000*	4	23.7/16.9	1/3	230
MEV2000-20040-000 MEV2000HF-20040-000*	4	21.3	3	230

Table 2

Inverter model	Size	Input current (A)	Single or Three phase	Rated voltage (V)
MEV2000-20055-000 MEV2000HF-20055-000*	5	31	3	230
MEV2000-20075-000 MEV2000HF-20075-000*	6	48	3	230
MEV2000-20110-000 MEV2000HF-20110-000*	6	56	3	230
MEV2000-20150-000 MEV2000HF-20150-000*	7	75	3	230
MEV2000-20185-000 MEV2000HF-20185-000*	7	94	3	230
MEV2000-20220-000 MEV2000HF-20220-000*	7	117	3	230
MEV2000-20300-000 MEV2000HF-20300-000*	8	149	3	230
MEV2000-20370-000 MEV2000HF-20370-000*	8	180	3	230
MEV2000-40004-000 MEV2000HF-40004-000*	2	2.4	3	400
MEV2000-40005-000 MEV2000HF-40005-000*	2	2.9	3	400

Table 3

Inverter model	Size	Input current (A)	Single or Three phase	Rated voltage (V)
MEV2000-40007-000 MEV2000HF-40007-000*	2	3.5	3	400
MEV2000-40011-000 MEV2000HF-40011-000*	2	5.1	3	400
MEV2000-40015-000 MEV2000HF-40015-000*	2	6.2	3	400
MEV2000-40022-000 MEV2000HF-40022-000*	3	8.7	3	400
MEV2000-40030-000 MEV2000HF-40030-000*	3	12.2	3	400
MEV2000-40040-000 MEV2000HF-40040-000*	3	14.8	3	400
MEV2000-40055-000 MEV2000HF-40055-000*	4	16.3	3	400
MEV2000-40075-000 MEV2000HF-40075-000*	4	20.7	3	400
MEV2000-40110-000 MEV2000HF-40110-000*	5	29	3	400
MEV2000-40150-000 MEV2000HF-40150-000*	6	36	3	400
MEV2000-40185-000 MEV2000HF-40185-000*	6	46	3	400
MEV2000-40220-000 MEV2000HF-40220-000*	6	60	3	400
MEV2000-40300-000 MEV2000HF-40300-000*	7	74	3	400
MEV2000-40370-000 MEV2000HF-40370-000*	7	88	3	400
MEV2000-40450-000 MEV2000HF-40450-000*	7	105	3	400

Mechanical installation

Full series of MEV2000 inverters support wall - mounted installation. See the figure below for details. MEV2000 Size2 is available for DIN installation and Size5 and above are capable of through panel mounting Please refer to MEV 2 000 manual for more details.

Models

MEV1000-20004-000	MEV1000-20005-000	MEV1000-20007-000	MEV1000-20011-000
MEV2000-40004-000	MEV2000-40005-000	MEV2000-40007-000	MEV2000-40011-000
MEV3000-40004-000	MEV3000-40005-000	MEV3000-40007-000	MEV3000-40011-000

Liability:

WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
