Product Details:
Payment & Shipping Terms:
|
| Brand: | OMRON | Model: | R88M-G1K030T-Z |
|---|---|---|---|
| Origion: | Japan | Type: | Servo Motor |
| High Light: | ewing machine servo motor,ac servo motor |
||

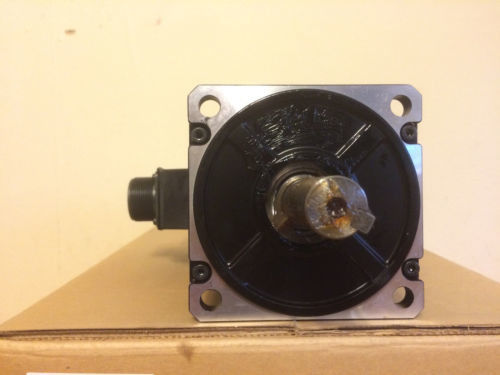

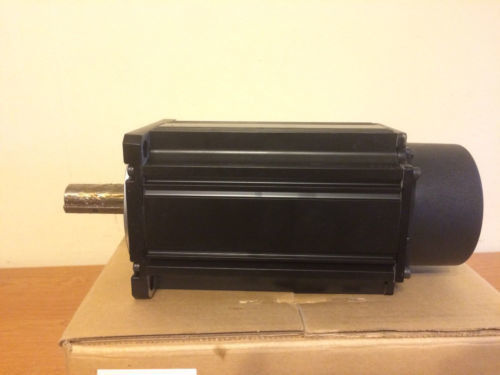

Industrial Servo Motor OMRON R88M-G1K030T-Z 200V. 3000RPM. 1kW output
3000rpm 1.5kW AC Electric Servo Motor PLC And HMI For Communicate
Quick Detail:
Power 1.5kW
Rated speed 3000rpm
DS-AS series servo drive
Three control modes: speed, position, torque
Power supply: single phase AC 220V
Differential signal output
Description:
1. Three control modes: position, speed, torque. Each two modes can switch.
2. Up to 400Hz high speed response, max power 1.5kW
3. 5 channels digital input, 3 channels digital output
4. 2 kinds of pulse input
5. Two communication ports: RS232, RS485
6. Z phase feedback: differential signal output, OC output
Specifications:
| Types | DS2-21P5-AS | |
| Suitable motor | Type MS- | MS-110ST/130ST |
| Radius Speed (rpm) | Rated 3000 | |
| Suitable encoder | Incremental encoder, 2500 ppr | |
| Suitable motor max capacity [kW] | 1.5 | |
| Continuous output current [A rms] | 6 | |
| Max output current [A rms] | 18 | |
| Input power supply | Single phase AC 220V, 50/60Hz | |
| Control mode | Three phase or single phase full wave rectification IGBT PWM control, sine current drive mode | |
| Using condition | Temperature | 0+50 /-20+85 |
| Humidity | Under 90RH (no condensation) | |
| Vibration resistance/impact resistance | 4.9m/s2 / 19.6m/s2 | |
| Structure | Foundation installation | |
Applications:
DS series servo drive can communicate with PLC and HMI. It has three control modes. Position mode can control the servo drive by external pulse or internal position parameters. Speed mode can control the servo drive by analog voltage, internal speed parameters or pulse frequency. Torque mode can control the servo drive by analog voltage or internal parameters.
| Specifications | Model | |||
|---|---|---|---|---|
| With oil seal | ||||
| Straight shaft | With key and tap | |||
| Without brake | 100 VAC | 50 W | R88M-1M05030S-O | R88M-1M05030S-OS2 |
| 100 W | R88M-1M10030S-O | R88M-1M10030S-OS2 | ||
| 200 W | R88M-1M20030S-O | R88M-1M20030S-OS2 | ||
| 400 W | R88M-1M40030S-O | R88M-1M40030S-OS2 | ||
| 200 VAC | 50 W | R88M-1M05030T-O | R88M-1M05030T-OS2 | |
| 100 W | R88M-1M10030T-O | R88M-1M10030T-OS2 | ||
| 200 W | R88M-1M20030T-O | R88M-1M20030T-OS2 | ||
| 400 W | R88M-1M40030T-O | R88M-1M40030T-OS2 | ||
| 750 W | R88M-1M75030T-O | R88M-1M75030T-OS2 | ||
| 1 kW | R88M-1L1K030T-O | R88M-1L1K030T-OS2 | ||
| 1.5 kW | R88M-1L1K530T-O | R88M-1L1K530T-OS2 | ||
| 2 kW | R88M-1L2K030T-O | R88M-1L2K030T-OS2 | ||
| 3 kW | R88M-1L3K030T-O | R88M-1L3K030T-OS2 | ||
| 400 VAC | 750 W | R88M-1L75030C-O | R88M-1L75030C-OS2 | |
| 1 kW | R88M-1L1K030C-O | R88M-1L1K030C-OS2 | ||
| 1.5 kW | R88M-1L1K530C-O | R88M-1L1K530C-OS2 | ||
| 2 kW | R88M-1L2K030C-O | R88M-1L2K030C-OS2 | ||
| 3 kW | R88M-1L3K030C-O | R88M-1L3K030C-OS2 | ||
| With brake | 100 VAC | 50 W | R88M-1M05030S-BO | R88M-1M05030S-BOS2 |
| 100 W | R88M-1M10030S-BO | R88M-1M10030S-BOS2 | ||
| 200 W | R88M-1M20030S-BO | R88M-1M20030S-BOS2 | ||
| 400 W | R88M-1M40030S-BO | R88M-1M40030S-BOS2 | ||
| 200 VAC | 50 W | R88M-1M05030T-BO | R88M-1M05030T-BOS2 | |
| 100 W | R88M-1M10030T-BO | R88M-1M10030T-BOS2 | ||
| 200W | R88M-1M20030T-BO | R88M-1M20030T-BOS2 | ||
| 400 W | R88M-1M40030T-BO | R88M-1M40030T-BOS2 | ||
| 750 W | R88M-1M75030T-BO | R88M-1M75030T-BOS2 | ||
| 1 kW | R88M-1L1K030T-BO | R88M-1L1K030T-BOS2 | ||
| 1.5 kW | R88M-1L1K530T-BO | R88M-1L1K530T-BOS2 | ||
| 2 kW | R88M-1L2K030T-BO | R88M-1L2K030T-BOS2 | ||
| 3 kW | R88M-1L3K030T-BO | R88M-1L3K030T-BOS2 | ||
| 400 VAC | 750 W | R88M-1L75030C-BO | R88M-1L75030C-BOS2 | |
| 1 kW | R88M-1L1K030C-BO | R88M-1L1K030C-BOS2 | ||
| 1.5 kW | R88M-1L1K530C-BO | R88M-1L1K530C-BOS2 | ||
| 2 kW | R88M-1L2K030C-BO | R88M-1L2K030C-BOS2 | ||
| 3 kW | R88M-1L3K030C-BO | R88M-1L3K030C-BOS2 | ||
