Pulse Train Inputs OMRON AC Servo driver Analog Inputs R88D-GT75H-Z

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

Pulse Train Inputs OMRON AC Servo driver Analog Inputs R88D-GT75H-Z

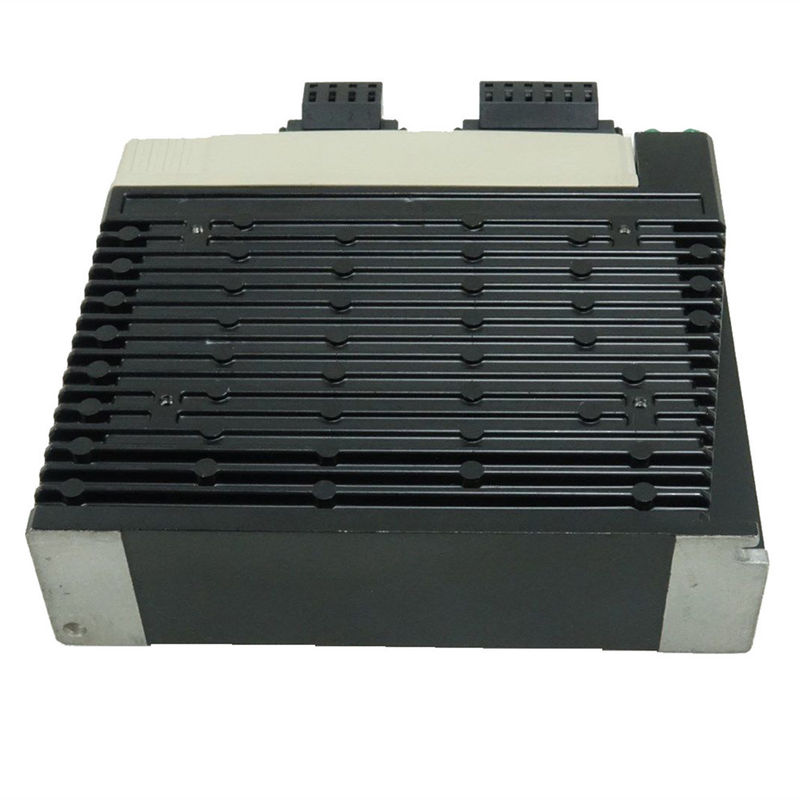

Large Image :  Pulse Train Inputs OMRON AC Servo driver Analog Inputs R88D-GT75H-Z

Product Details:

Place of Origin: Japan
Brand Name: OMRON
Model Number: R88D-GT75H-Z

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100
Detailed Product Description
Brand: OMRON Model: R88D-GT75H-Z
Origin: Japan Rate Voltage: 200 VAC
Phase: Three-Phase Power: 7.5kW
High Light:

ewing machine servo motor

,

ac servo motor

                  Pulse Train Inputs OMRON R88D-GT75H-Z AC Servo driver Analog Inputs



What is Details of our Omron PLC Transistor?

Description

(1).Digital Computer ,Used For Automation Of Electromechanical Processes.
(2).Plcs Are Armored For Severe Conditions(Such As Dust, Moisture, Heat, Cold).

(3).The Structure Of A Plc Can Be Divided Into Four Parts.They Are Input/Output

Modules, Central Processing Unit(Cpu), Memory And Programming Terminal.

Feature




(1).Armored for severe conditions and have the facility for extensive input/outpu (I/O)

arrangements.

(2).Read limit switches, analog process variables and the positions of complex.
(3).Operate electric motors, pneumatic or hydraulic cylinders, magnetic relays, solenoids, or analog outputs.
(4).Industry, Sequential relay control, motion control.
(5).process control, distributed control systems and networking.
Application (1).Power industry, the elevator industry, parking, automobile, auto ancillary.
(2).feed industry, aluminum smelting machines, refrigeration industry.
(3).steel industry, combustion control systems, non-ferrous metal smelting.
(4).glass industry, construction machinery, textile machinery, water treatment.

Servo Drives

Specifications Model
Single-phase 100 VAC 50 W R88D-GTA5L
100 W R88D-GT01L
200 W R88D-GT02L
400 W R88D-GT04L
Single-phase 200 VAC 50 W R88D-GT01H
100 W
200 W R88D-GT02H
400 W R88D-GT04H
Single-phase/three-phase 200 VAC 750 W R88D-GT08H
1 kW R88D-GT10H
900 W R88D-GT15H
1 kW
1.5 kW
Three-phase 200 VAC 2 kW R88D-GT20H
2 kW R88D-GT30H
3 kW
3 kW R88D-GT50H
4 kW
4.5 kW
5 kW
6 kW R88D-GT75H
7.5 kW





Servo Drives with Single-phase 200-VAC Input Power



Item R88D-
GT01H
R88D-
GT02H
R88D-
GT04H
R88D-
GT08H
R88D-
GT10H
R88D-
GT15H
Continuous output current (rms) 1.16 A 1.6 A 2.7 A 4.0 A 5.9 A 9.8 A
Momentary maximum output
current (rms)
3.5 A 5.3 A 7.1 A 14.1 A 21.2 A 28.3 A
Input
power
supply
Main circuit Power
supply
capacity
0.5 KVA 0.5 KVA 0.9 KVA 1.3 KVA 1.8 KVA 2.3 KVA
Power
supply
voltage
Single-phase 200 to 240 VAC
(170 to 264 V), 50/60 Hz
Single-phase or three-phase 200 to 240
VAC (170 to 264 V), 50/60 Hz
Rated
current
1.3 A 2.0 A 3.7 A 5.0/3.3 *1 A 7.5/4.1 *1 A 11/8.0 *1 A
Control
circuit
Power
supply
voltage
Single-phase 200 to 240 VAC (170 to 264 V), 50/60 Hz
Rated
current
0.05 A 0.05 A 0.05 A 0.05 A 0.07 A 0.07 A
Heat
gen-
erated
Main circuit 14.3 W 14.8 W 23.6 W 38.7 W 52.9 W 105.9 W
Control circuit 4.5 W 4.5 W 4.5 W 4.3 W 6.1 W 6.1 W
PWM frequency 12.0 kHz 6.0 kHz
Weight Approx.
0.8 kg
Approx.
0.8 kg
Approx.
1.1 kg
Approx.
1.5 kg
Approx.
1.7 kg
Approx.
1.7 kg
Maximum applicable motor
capacity
100 W 200 W 400 W 750 W 1 k W 1.5 kW
Appli-
cable
Servo-
motors
(R88M-)
3,000-r/min
Servomotors
[INC] G05030H
G10030H
G20030H G40030H G75030H --- ---
[ABS] G05030T
G10030T
G20030T G40030T G75030T --- G1K030T
G1K530T
3,000-r/min
Flat
Servomotors
[INC] GP10030H GP20030H GP40030H --- --- ---
[ABS] GP10030T GP20030T GP40030T --- --- ---
2,000-r/min
Servomotors
[ABS] --- --- --- --- G1K020T G1K520T
1,000-r/min
Servomotors
[ABS] --- --- --- --- --- G90010T
Control method All-digital servo
Inverter method IGBT-driven PWM method
Per-
form-
ance
Speed control range 1:5000
Speed variability: Load
characteristic
0.01% or less at 0% to 100% (at rated speed)
Speed variability: Voltage
characteristic
0% at ±10% of rated voltage (at rated speed)
Speed variability:
Temperature
characteristic
±0.1% or less at 0 to 50°C (at rated speed)
Torque control
reproducibility
±3%



*1. The left value is for single-phase input power and the right value is for three-phase input power.
