Product Details:
Payment & Shipping Terms:
|
| Brand: | Panasonic | Model Number: | MSMA3AZP1A |
|---|---|---|---|
| Country Of Origin: | Japan | Type: | Servo Motor |
| Delivery Time: | 2-3days | Rated Power: | 100-1000W |
| Voltage - Rated: | 200VAC | Rated Speed (RPM):: | 3000 |
| Output (W): | 400W | ||
| High Light: | ewing machine servo motor,electric servo motor |
||
Panasonic AC Industrial Servo Motor MSMA3AZP1A with 1year warranty
Features:
Specification:
|
Manufacturer |
Panasonic |
|
RoHS: |
|
|
Brake: |
X |
|
Encoder Resolution: |
20-BIT Incremental |
|
Inertia Ratio (x 10-4 kg ? m2): |
0.67 |
|
Frame Size: |
B |
|
Rated Torque(Nm): |
1.3 |
|
Rated Speed (RPM): |
3000 |
|
Input Power Supply: |
Single phase/3-phase 200V |
|
Application Positioning Type: |
NA |
|
Application Driver Standard Type: |
MBDDT2210P |
|
Output (W): |
400 |

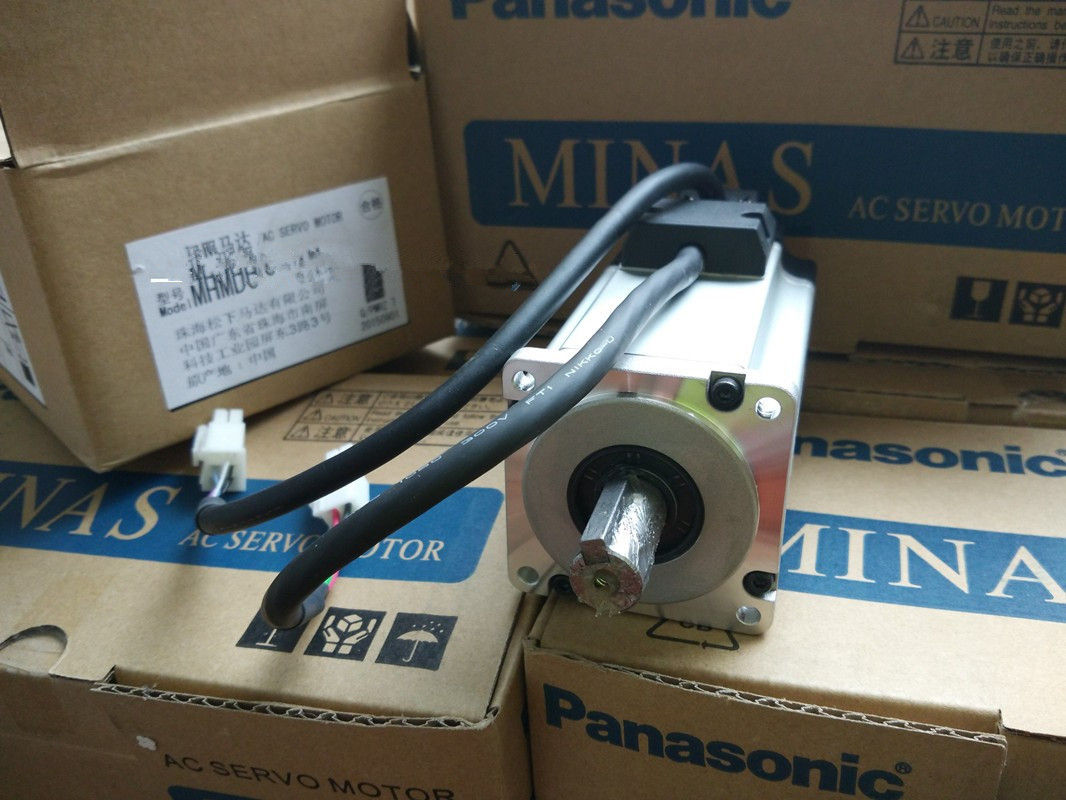

Panasonic mians A4
Product Name: AC Servo motor

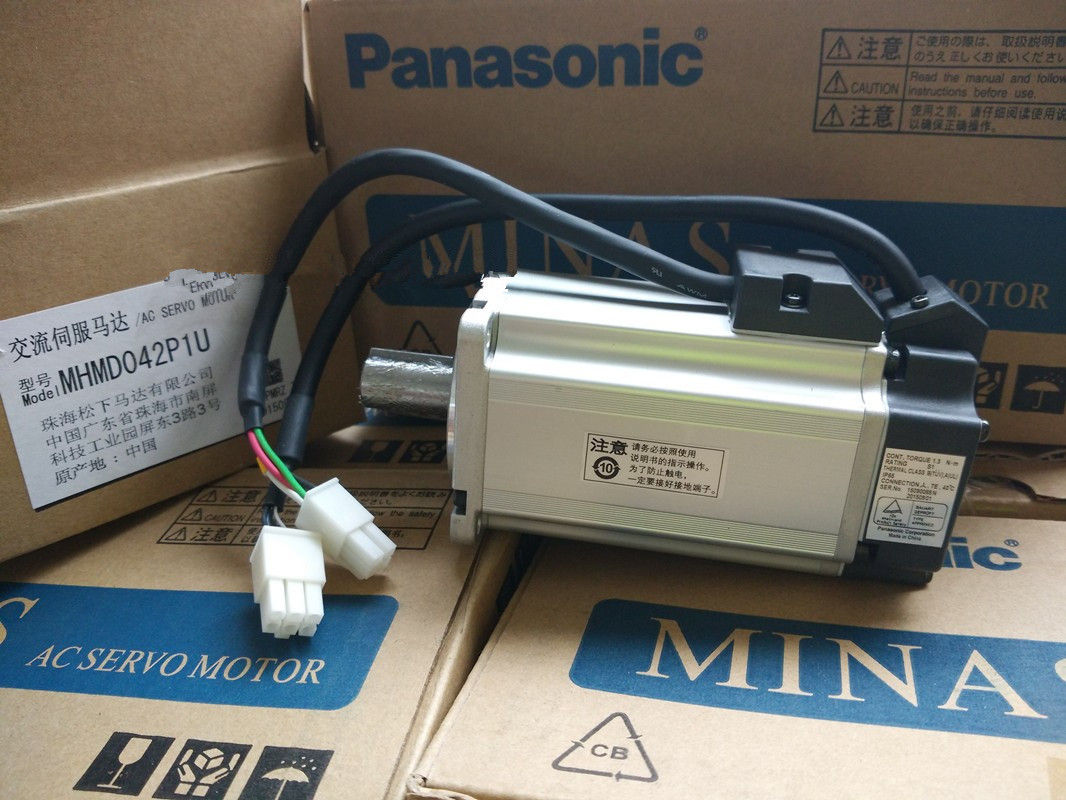

Part No: MHMD042P1U
Manufacturer: Panasonic
Output (W): 400W
Brake: Without brake
Encoder Resolution: 17-BIT Incremental
Inertia Ratio (x 10-4 kgx m2): 0.67
Frame Size: B
Rated Torque (Nm): 1.3
Rated Speed (RPM): 3000
Input Power Supply: Single phase/3-phase 200V
Application Positioning Type: NA
Application Driver Standard Type: MBDDT2210,MBDDT2210P,MBDDT2210N,MBDDT2210003
Motor types:low, middle and high inertia
Speed response frequency 1kHz
Incremental encoder (2500P/R)
Absolute Encoder (17bit) Available
Vibration control
Real-time auto tuning
Pulse and analog command input
Fast response and positioning
Position, velocity and torque control
| Product Attributes | Select All | |
| Categories | Motors, Solenoids, Driver Boards/Modules | |
|---|---|---|
| Motors - AC, DC | ||
| Manufacturer | Panasonic Industrial Automation Sales | |
| Series | MINAS A4 | |
| Part Status | Active | |
| Type | AC Motor | |
| Function | Servomotor | |
| Motor Type | - | |
| Voltage - Rated | 200VAC | |
| RPM | 3000 RPM | |
| Torque - Rated (oz-in / mNm) | 184.1 / 1300 | |
| Power - Rated | 400W | |
| Encoder Type | Incremental | |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | |
| Diameter - Shaft | 0.551" (14.00mm) | |
| Length - Shaft and Bearing | 1.181" (30.00mm) | |
| Mounting Hole Spacing | 2.756" (70.00mm) | |
| Termination Style | Wire Leads | |
| Features | Key, Oil Seal | |
| Gear Reduction Ratio | - | |
| Torque - Max Momentary (oz-in / mNm) | 538.1 / 3800 | |
| Operating Temperature | 0°C ~ 40°C | |
| Approvals | CE, CSA, cULus, TUV, UL | |
| Weight | 3.1 lbs (1.4kg) |
Panasonic servo motor A4 series features:
1, automatic adjustment
* High performance real-time automatic adjustment gain
* According to the change of the load habit weight, with the adaptive filter, the gain can be automatically adjusted from low rigidity to high rigidity.
* When the vertical axis with different load torques is generated due to different rotation directions, it can be adjusted automatically.
* With abnormal speed detection, the abnormal speed generated during gain adjustment can be adjusted to normal.
* Through the display panel operation, you can set and confirm while monitoring the real-time adjustment.
2, high speed and high response
* Speed response frequency up to 1KHz.
* Built-in instantaneous speed observer to detect the speed of the motor at high speed and high resolution.
* High performance mechanical adaptability
* High-speed automatic adjustment function for high-speed positioning, whether it is a belt-driven machine that is easy to generate resonance or a high-rigid screw drive machine.
3, low vibration
* Adaptive filter
* Built-in adaptive filter, which automatically adjusts the frequency of the notch filter according to the mechanical resonance frequency.
* It is possible to control noise due to mechanical instability and changes in resonance frequency.
* Two notch filters
* Built-in filters with two *** channels different from the adaptive filter.
* Two notch filters can set the frequency and amplitude of the notch in units of 1 Hz.
