Servo Motor A5 Series 200V 5000W 5.0KW Panasonic Industrial Servo Motor MDME502GCH

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

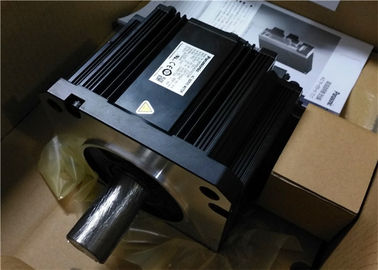

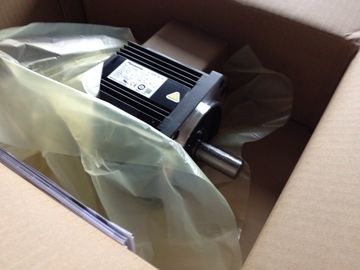

Servo Motor A5 Series 200V 5000W 5.0KW Panasonic Industrial Servo Motor MDME502GCH

Large Image :  Servo Motor A5 Series 200V 5000W 5.0KW Panasonic Industrial Servo Motor MDME502GCH

Product Details:

Place of Origin: Japan
Brand Name: Panasonic
Certification: CE
Model Number: MDME502GCH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact
Packaging Details: NEW AND ORIGINAL
Delivery Time: 3-5DAYS
Payment Terms: T/T, Western Unionm,PAYPAL
Supply Ability: 1000
Detailed Product Description
Brand: Panasonic Model Number: MDME502GCH
Country Of Origin: Japan Type: Servo Motor
Delivery Time: 2-3days Power Device Max. Current Rating: 150A
Current Detector Current Rating: 120A Supply Voltage: 3-phase 200 V
Frequency Response: 2.3 KHz
High Light:

ewing machine servo motor

,

electric servo motor

MDME502GCG Servo Motor A5 Series 200V 5000W 5.0KW Panasonic Industrial Servo Motor




  • Brand Panasonic
  • Power 5kw ( 5000watt)
  • Voltage 230 Volt
  • Motor Type AC
  • Speed 2000 RPM



Product Description

We are engaged in providing the best quality range of AC Servo Motor and Servo Drives
and India best service support on site and off site with market competitive price.

Features:
  • Compact design.
  • Excellent functionality.
  • Longer service life.
  • 2.3 Khz Fastest velocity response frequency.
  • two degree of freedom control system to improve productivity and machining accuracy.
  • smooth operation and reduce vibration at stopping.
  • accurate positioning in short time.
  • most stable speed lower cogging and low noise.
Applications:
  • Simple food processing.
  • Packaging.
  • Printing.
  • Metal processing.
  • Motor drives.

Servo Ratings - or Range - 0.4 kw to 15 kw.





Technical Specifications

Physical

Weight 41 lb

Technical

Encoder Type Incremental

Max Operating Temperature 40 °C

Min Operating Temperature 0 °C

Power Rating 5 kW

RPM 2000 RPM

Termination Connector



Item

Specifications

Part Number MDME502GCG
Details A5 series
Speed, Position, Torque, Full-closed type
with the safety function
Family Name MINAS A5
Series A5 series
Type Speed, Position, Torque, Full-closed type
Frame F-Frame
Frequency response 2.3 kHz
Control method Position control, Velocity control, Torque control, and Full-closed control
Safety Function with the safety function
Power device Max. current rating 150A
Current detector current rating 120A
Supply voltage 3-phase 200 V
I/F Classification of type Analog/Pulse
Dimensions (W) (Unit: mm) 130
Dimensions (H) (Unit: mm) 220
Dimensions (D) (Unit: mm) 214
Mass (kg) 4.8
Environment For more details, please refer to the instruction manual.
