Product Details:
Payment & Shipping Terms:
|
| Product Name: | Output Module | Order No.: | CI840A 3BSE041882R1 |
|---|---|---|---|
| Weight: | 0.3 Kg (0.66 Lbs.) | I/O Current, DC: | 500mA |
| 24 V Consumption Typ: | 140 MA | Temperature, Operating: | 0 To +55 °C |
| Temperature, Storage: | -25 To +70 °C | ||
| High Light: | digital input output module,plc i o modules |
||

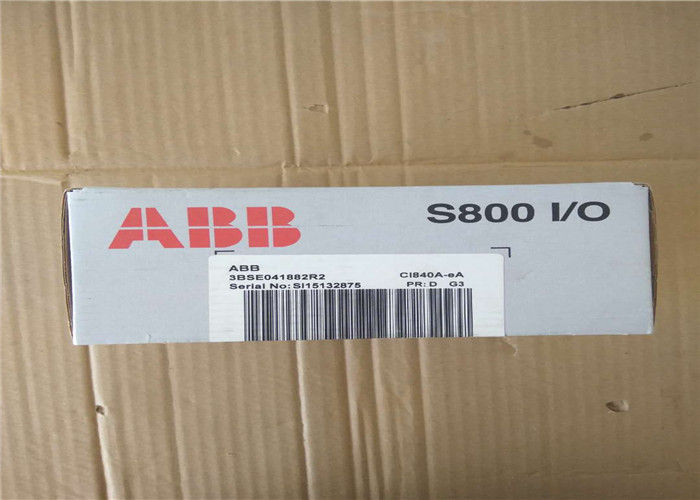

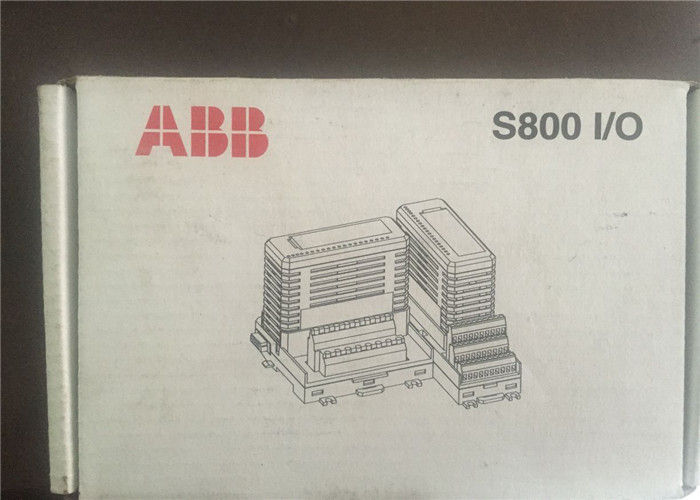

PROFIBUS DP-V1 CI840A 3BSE041882R1 ABB Digital I O Module
S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers and PLCs over industry-standard field buses. The CI840 Fieldbus Communication Interface (FCI) module is a configurable communication interface that performs operations such as signal processing, gathering of various supervision information, OSP handling, Hot Configuration In Run, HART pass-through and configuration of I/O modules. CI840 is designed for redundant applications. The FCI connects to the controller by way of the PROFIBUS-DPV1 fieldbus. Module termination units to use, TU846 with redundant I/O and TU847 with non-redundant I/O.
| Protocol | PROFIBUS DP-V1 |
| Article number | 3BSE041882R1 |
| Master or slave | Slave |
| Line redundancy | Yes |
| Module redundancy | Yes |
| Hot Swap | Yes |
| Used together with HI Controller | Yes |
| 24 V consumption typ. | 190 mA |
| Temperature, Operating | 0 to +55 °C |
| Temperature, Storage | -25 to +70 °C |
| Pollution degree | Degree 2, IEC 60664-1 |
| Corrosion protection | ISA-S71.04: G3 |
| Relative humidity | 5 to 95 % no condensation |
| Protection class | IP20 according to EN60529, IEC 529 |
| CE- marking | Yes |
| Electrical Safety | IEC 61131-2, UL 508 |
| Hazardous location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certificates | ABS, BV ,DNV-GL, LR, RS, CCS |
| RoHS compliance | EN 50581:2012 |
| WEEE compliance | DIRECTIVE/2012/19/EU |
| Height | 119 mm (4.69 in.) |
| Width | 54 mm (2.13 in.) |
| Depth | 96 mm (3.78 in.) |
| Weight (including base) | 0.2 kg (0.44 lbs.) |
Features and benefits
PROFIBUS DP PROFIBUS-DPV1 fieldbus interface.
Supervisory functions of I/O ModuleBus
Isolated power supply to I/O modules
OSP handling and configuration
Input power fused Hot Configuration
In Run HART pass-through.
