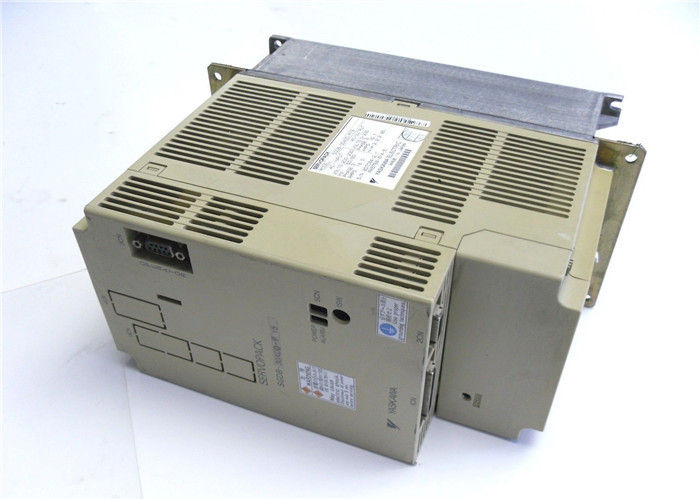

Yaskawa 50/60hz 2.2KWatt Input 15.7AMPS SERVO DRIVE SGDB-30ADD-PY8

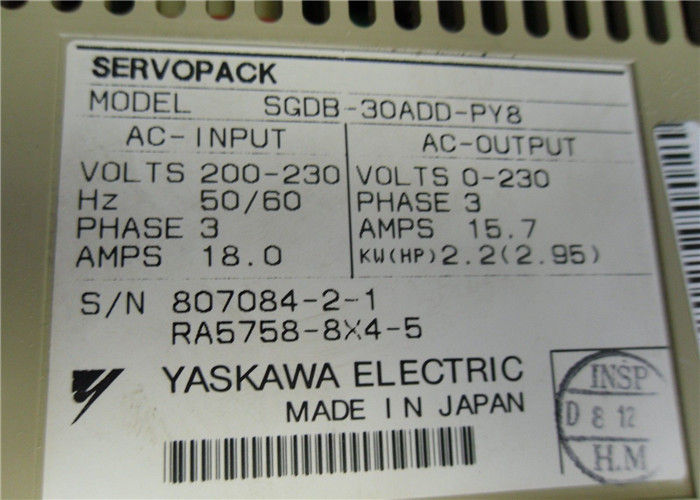

Quick Details
Description SGDB-30ADD-PY8 is a Drives-AC Servo
Drive Type SGDB AC Servo Drive
Rated Output 2.2kW
Supply Voltage 200V
Model Torque, Speed, Position Control
Applicable motor series SGMG (1500 RPM)
Option Specifications None
Modification None
Power and Torque
ASD's actually control both frequency and voltage simultaneously to maintain a constant volts/hertz ratio which keeps current flow similar to full speed conditions.
This allows the motor to draw full current at any speed and produce full torque as motor speed changes.
What happens to the Horsepower when we lower the speed and torque using frequency?
Reduced Horsepower = Reduced Energy Use = Energy Savings!!!!!!!!!!!
What About INCREASING Speed?
Some specially designed motors meant for use with ASD’s are designed to operate at higher than
normal speeds at frequencies above 60 hertz.
Increasing frequency above 60 hertz makes the motor run faster than normal and creates two primary concerns:
1. Was the motor or the load it drives designed to operate at these increased speeds?
S Many motors and devices were not mechanically balanced to operate at increased speeds and will create vibration, mechanical and safety problems.
2. ASD's are not capable of increasing voltage so as frequency increases above 60 hertz, the torque produced starts to decrease.
_ In order to maintain a constant horsepower output to drive our load, if speed is increased, torque must decrease!
At some point of increased speed we may not be able to produce enough torque to drive the load and at this point, the motor will slow even with increasing frequency.
C This point is different for each manufacturer's motor and dependant on the torque required by the load. Only the manufacturer can help determine when this occurs.
