Product Details:
Payment & Shipping Terms:
|
| Brand: | Panasonic | Model Number: | MADHT1507 |
|---|---|---|---|
| Country Of Origin: | Japan | Type: | Industrial Servo Drives |
| Series: | A5 Series | Frequency Response: | 2.3 KHz |
| Power Device Max. Current Rating: | 10A | Supply Voltage: | Single/3-phase 200 V |
| Current Detector Current Rating: | 7.5A | ||
| High Light: | electric servo drive,ac servo drive |
||

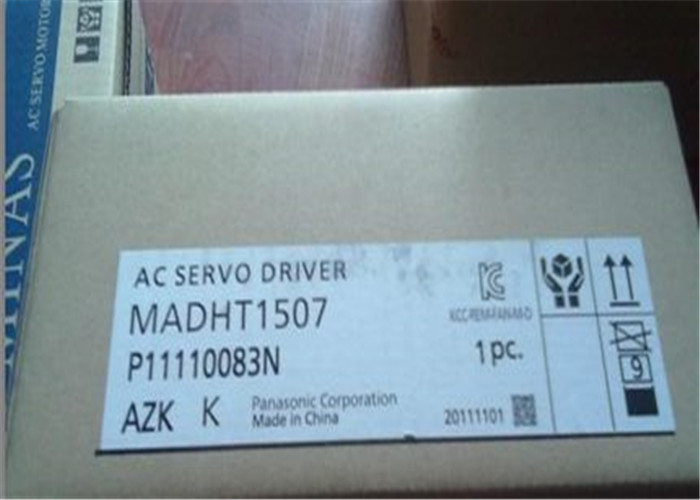

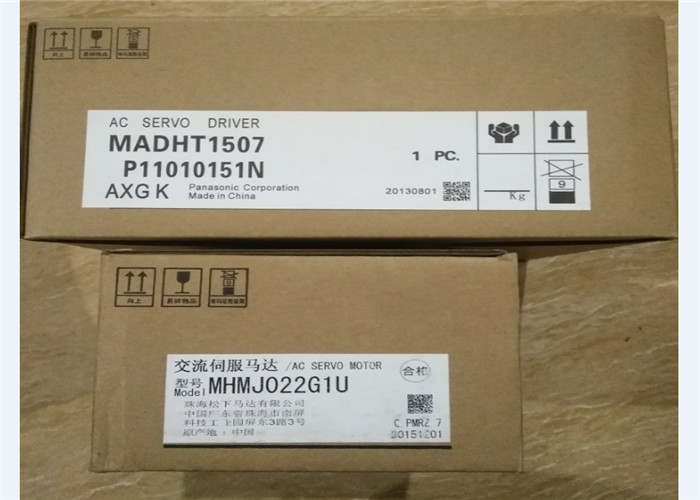

Panasonic Industrial AC Servo Drives MADHT1507 200W 200-240VAC 240V
Description
|
Series
|
|
|
Package
|
Box
|
|
Part Status
|
Active
|
|
Type
|
Module
|
|
Motor Type
|
Servo
|
|
Control / Drive Type
|
Servo AC
|
|
Voltage - Load
|
240V
|
|
Current - Output
|
10A
|
|
Voltage - Supply
|
200 ~ 240VAC
|
|
Interface
|
RS-232, RS-485, USB
|
|
Mounting Type
|
Chassis Mount
|
|
Operating Temperature
|
0°C ~ 55°C
|
|
Features
|
-
|
|
For Use With/Related Products
|
MINAS A5 Series
|
|
Weight
|
1.7 lbs (771.1 g)
|
|
Number of Motors
|
1
|
|
Wattage - Load
|
200W
|
Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single/3-phase 200 to 240V +10% -15% 50/60 Hz |
| Input power: Control circuit | Single phase 200 to 240V +10% -15% 50/60 Hz |
| Encoder feedback | 17-bit (131072 resolution) absolute encoder, 7-wire serial 20-bit (1048576 resolution) incremental encoder, 5-wire serial |
| External scale feedback | A/B phase, homing signal differential input. Serial communication is also supported. |
| Parallel I/O connector: Control signal Input |
General purpose 10 inputs The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: Control signal Output |
General purpose 6 output The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Input |
3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs) |
| Parallel I/O connector: Analog signal Output |
2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input |
2 inputs (Photo-coupler input, Line receiver input) |
| Parallel I/O connector: Pulse signal Output |
4 outputs (Line driver: 3 output, open collector: 1 output) |
| Communication function | USB, RS232, RS485 |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Communication function: RS232 | 1:1 communication |
| Communication function: RS485 | 1: n communication (max 31) |
| Regeneration | No built-in regenerative resistor (external resistor only) |
| Control mode | Switching among the following 7 mode is enabled, (1) Position control, (2) Speed control, (3) Torque control, (4) Position/speed control, (5) Position/Torque control, (6) Speed/Torque control, (7) Full-closed control |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8537.10.9170 |
