MBDHT2510E Panasonic Ac 400w Servo Driver Industrial Servo Drives

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

MBDHT2510E Panasonic Ac 400w Servo Driver Industrial Servo Drives

Large Image :  MBDHT2510E Panasonic Ac 400w Servo Driver Industrial Servo Drives

Product Details:

Place of Origin: Japan
Brand Name: Panasonic
Certification: CE
Model Number: MBDHT2510E

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact
Packaging Details: NEW AND ORIGINAL
Delivery Time: 3-5DAYS
Payment Terms: T/T, Western Unionm,PAYPAL
Supply Ability: 1000
Detailed Product Description
Brand: Panasonic Model Number: MBDHT2510E
Country Of Origin: Japan Type: Servo Motor
Delivery Time: 2-3days Power - Rated: 50W
Voltage - Rated: 100, 200VAC RPM: 3000 RPM
Weight: 0.705 Lb (319.78g)
High Light:

electric servo drive

,

ac servo drive

MBDHT2510E Panasonic Ac 400w Servo Driver Industrial Servo Drives

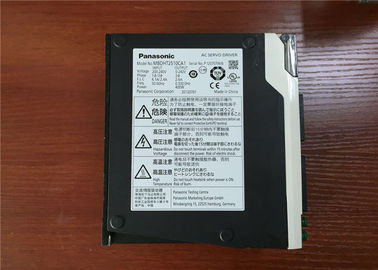

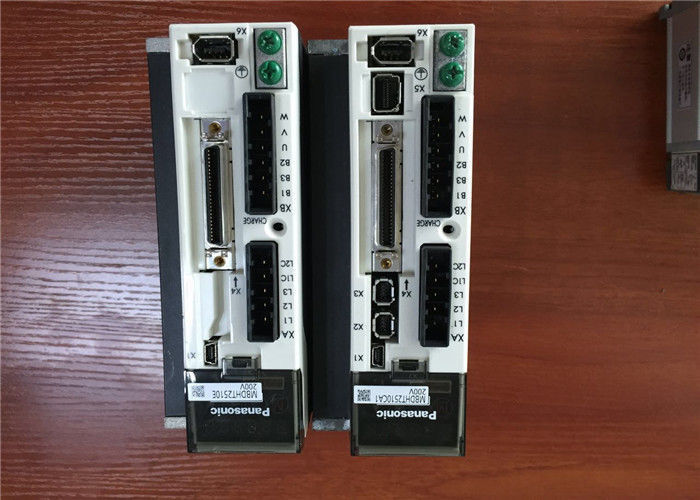

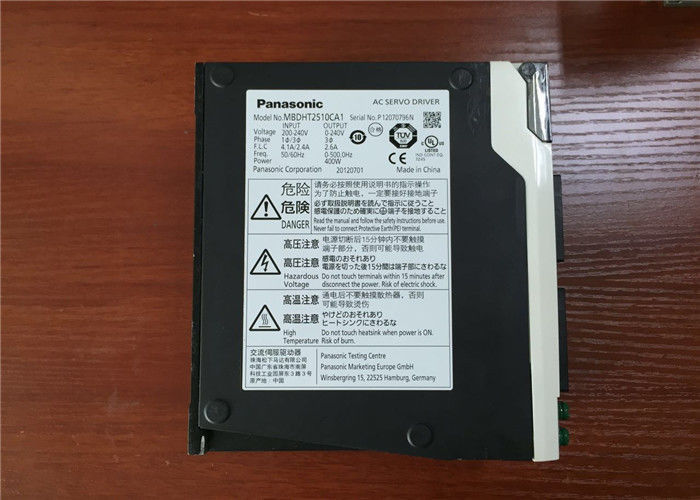

Panasonic MBDHT2510E AC Servo Driver

0-240V 3P 2.6A 0-500.0Hz 400W

Item Condition: new

Quantity: 1 Unit

Cosmetic Condition: 8





Part Number:MBDHT2510E



Condition : Brand New



Warranty : 12 months







  • Product name : Ac Servo Motor
  • Manufacturer : Panasonic
  • Output (w): 400w
  • Brake : Without brake
  • Encoder resolution: 20-bit incremental
  • Inertia ratio (x 10-4 kg . M2): 0. 67
  • Frame size: b
  • Rated torque (nm): 1.3
  • Rated speed (rpm): 3000
  • Input power supply: Single phase/3-phase 200v
  • Application positioning type: NA
  • Application driver standard type: MBDDT2210
  • Shipping Weight (kg) : 1.5





Item Performance characteristics
Frame Symbol Frame B
Supply voltage specification Single/3-phase, 200 V
Current detector current rating 10 A
Ratedoutput 400 W
Regeneration resistor No built-in regenerative resistor
Control mode Pulse line input type
Application series A5E series





Specifications:



MBDHT2510E Part Number
A5E series Details
Position control type
without the safety function
MINAS A5 Family Name
A5E series Series
Position control type Type
B-Frame Frame
2.3 kHz Frequency response
Position control Control method
without the safety function Safety Function
15A Power device Max. current rating
10A Current detector current rating
Single/3-phase 200 V Supply voltage
Analog/Pulse I/F Classification of type
55 Dimensions (W) (Unit: mm)
150 Dimensions (H) (Unit: mm)
130 Dimensions (D) (Unit: mm)
1 Mass (kg)
For more details, please refer to the instruction manual. Environment
