Product Details:
Payment & Shipping Terms:
|
Brand: | Panasonic | Model Number: | MSMD012G1U |
---|---|---|---|
Country Of Origin: | Japan | Type: | Servo Motor |
Delivery Time: | 2-3days | Power - Rated: | 50W |
Voltage - Rated: | 100, 200VAC | RPM: | 3000 RPM |
Weight: | 0.705 Lb (319.78g) | ||
High Light: | ac servo pack,ac servo drive |

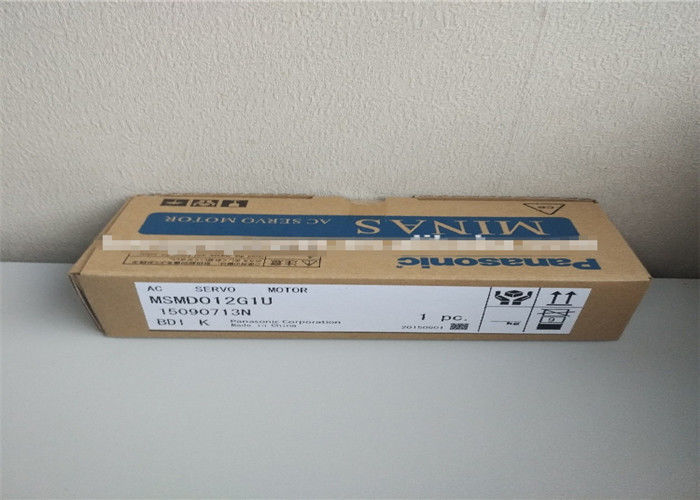

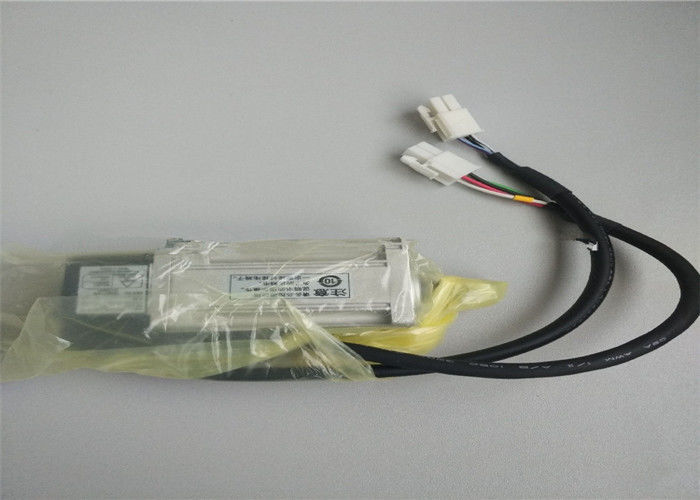

Panasonic A5 Series 100W AC Servo Motor MSMD012G1U Industrial Servo Drives
Quick Details
General feature:
1. speediness
Response frequency 2.3kHZ
20 bit 1 loop 104 million pulse
Low cogging torque
semi-closed /full-closed loop, input /output pulse 4Mpps
2. intelligence
Multi-function real-time automatic incremental adjustment
Auto/manual notch filter
Auto/manual damping filter
Machine simulation
Pick up 2 dof control
3. compact
new work way/newly developed core/newly developed encoder
Realized the function of sharply lightweight and miniaturization for motor
4. reassurance
met international safety standards
low noise
IP67
Series MINAS A5
Type AC Motor
Termination Style Wire Leads
Operating Temperature 0°C ~ 40°C
Features Key, Oil Seal
Voltage Rated 200VAC
Size Dimension Square - 5.118" x 5.118" (130.00mm x 130.00mm)
Function Servomotor
Power Rated 100W
Encoder Type Incremental
RPM 3000 RPM
Motor Type -
Torque Rated oz in mNm 45.32 / 320
Diameter Shaft 0.969" (24.60mm)
Length Shaft and Bearing 2.559" (65.00mm)
Mounting Hole Spacing 5.709" (145.00mm)
Gear Reduction Ratio -
Torque Max Momentary oz in mNm 134.53 / 950
High performance (same as MINAS A5 standard drives) sMultifunctional sAttractive price-performance ratio sDesigned exclusively for positioning control s20 bits/revolution; 1.04 million pulses per revolution sMax. speed: 6000rpm sLow cogging torque sNew design; innovative core; high-precision encoder sIP67 degree of protection for all MSME-type motors M
The following are some of the drive models, both new and used are stocked:
MSDA3A3A1A | MSDA5A3A1A | MSDA013A1A |
MSDA023A1A | MSDA043A1A | MSDA083A1A |
MDDA103A1A | MDDA153A1A | MDDA203A1A |
MDDA253A1A | MDDA303A1A | MDDA353A1A |
MSDA403A1A | MSDA503A1A | MSD023A1XXV |
MSDA083A1XXV | MSD043A1X | MSDA043D1A |
MQDA043A1A | MUDS043A1A | MUDS023A1A |
MUDS083A1A | MUMS082A1E0S | MUDS083A1M |
MUMA012P1T | MUMA022P1T | MUMA042P1T |
MUMA042P1S | MUMA012P1S | MUMA022P1S |
MUMS082P1S | MSDA043A1XXV | MSDA013A1XXV |
MKDET1505P | MUMA082P1T | MKDET1310P |
