EBMPAPST 300/330W Centrifugal Fan D2E146-AP47-02 230V 2050RPM New in stock

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

EBMPAPST 300/330W Centrifugal Fan D2E146-AP47-02 230V 2050RPM New in stock

Large Image :  EBMPAPST 300/330W Centrifugal Fan D2E146-AP47-02 230V 2050RPM New in stock

Product Details:

Place of Origin: GERMANY
Brand Name: EBMPAPST
Certification: CE
Model Number: D2E146-AP47-02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5 work days
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Model: D2E146-AP47-02 Code: -
Weight: 5 Kg Brand: EBMPAPST
Condition: NEW ORIGINAL Type: Centrifugal Fan
High Light:

variable frequency converter

,

variable frequency drive inverter

EBMPAPST 300/330W Centrifugal Fan D2E146-AP47-02 230V 2050RPM New in stock

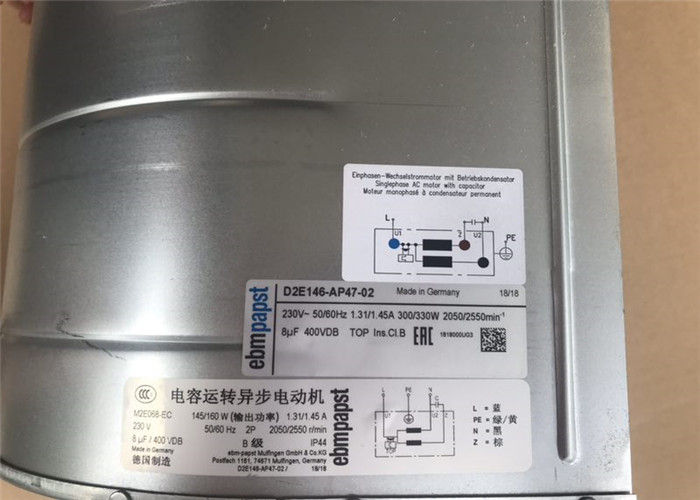

Description



230V~50/60Hz 1.31/1.45A 300/330W

2050/2550MIN 8UF 400VDB



Quick Details


Type:Centrifugal Fan

Blade Material:Plastic

Mounting:Ceiling Fan

Place of Origin:Germany

Brand Name:EBMPAPST

Power:300/330W, 300/330W

Voltage:230V/400V, 230V/400V

Certification:CE

Warranty:1 Year, 1 Year

After-sales Service Provided:Online support

Product Name:Centrifugal Cooling Fan

Item:D2E146-AP47-02

Use for:ACS800 VFD Inverter

Condition:NEW

Weight:14.5kg



Models of D2E097 Series:



D2E097-BI56-02

D2E097-BI56-83

D2E097-BI56-E7

D2E097-BI56-E9





Spare for:



ACS800-104-0170-3,

ACS800-104-0210-3,

ACS800-104-0210-5,

ACS800-104-0210-7,

ACS800-104-0260-3,

ACS800-104-0260-5,

ACS800-104-0260-7,

ACS800-104-0320-3,

ACS800-104-0320-5,

ACS800-104-0320-7,

ACS800-104-0390-3,

ACS800-104-0400-5,

ACS800-104-0400-7,

ACS800-104-0440-7,

ACS800-104-0460-5,

ACS800-104-0510-3,

ACS800-104-0580-7,

ACS800-104-0610-5.





Specifications:



Air Flow 120 CFM
Bearing Type Ball
Blower Type Centrifugal
Configuration Scroll
Dimensions 5.67 x 5.39 (144 x 137)In. (mm)
Frequency 60 Hz
Material Metal
Noise Level 47 dBA
Power Rating 43 W
Rotation CW
Series D2E097 Series
Temperature, Operating, Maximum 60 C
Termination Leadwires
Voltage Rating 115 VAC
Weight 2.69 Lbs.





Features:

  • AC Dual Inlet Forward Curved Centrifugal Blower
  • Via a Bracket, the Integrated External-Rotor Motor Is Mounted on One Side of the Housing
  • Housing and Impeller of Galvanized Sheet-Steel
  • Forward Curved Impellers Are Directly Press-Fitted onto the Rotor of the External-Rotor Motor
  • Direction of Rotation Is CW as Seen From Suction Side
  • Insulation Class “B”
  • Maintenance-Free Ball Bearings



Description of Centrifugal fans



Centrifugal fans from ebm-papst are available with forward or backward curved blades. The

outstanding feature of the external rotor motors is their compact, flat design, which results from
integrating the external rotor motor into the impeller. "Blowers" refers to devices with scroll

housing, while centrifugal fans are shipped without scrolls.




Similiar Centrifugal fans for ABB Variable Frequency Inverter

Part no : D2D160- BE02-11 64650424
Part no : D2D160-BE02-11
Part no : D2D160-BE02-12
Part no : D2D160-BE02-12 68281334
Part no : D2D160-BE02-14
Part no : D2D133-DB02-06
Part no : D2D146-AA28-28
Part no : D2E133-AM35-B4
Part no : D2E097-CB01-02
Part no : D2E133-AM47-01
Part no : D2E133-CI33-56
Part no : D2E133-DM47-01
Part no : D2E146-AP43-22
Part no : D2E146-AP47-22
Part no : D2E160-AB01-06
Part no : D2E160-FI01-01
Part no : D2E146-HR93-01
Part no : D2E097-BK66-02
Part no : D2E097-BK66-48
Part no : D2E097-CH85-02
Part no : D2E097-CH85-48
Part no : D2E133-DM47-23
Part no : D2E146-AP43-02
Part no : D2E146-AP47-02
Part no : D4E225-CC01-02
Part no : D4E225-CC01-30
Part no : D4E225-CC01-39
Part no : D2E140-HR97-07
Part no : D2E146-KA45-01
Part no : D2E146-KB27-01
Part no : D2E146-HR93-03
Part no : D2E146-HS97-03
Part no : D2E160-FK11-02
Part no : D4E146-LV19-14
Part no : D4D180-CB01-02
art no : D4D200-CA01-02
Part no : D4D225-FH02-01
Part no : D4D225-GH02-01
Part no : D4E160-DA01-02
Part no : D4E160-EG06-05
Part no : D4E160-FH12-05
Part no : D4E180-BA02-02
Part no : D4E180-CA02-02
Part no : D4E200-CA02-02
Part no : D4E225-BC01-02
Part no : D4E225-DH01-01
Part no : D4E225-EH01-01
Part no : D6E225-FB07-02




Others:


RF2C-140/059 K147 SF
RF2C-140/059 K097 SF
RF2C-146/062 K124 SF
RF2C-160/062 K117 SF

RF2C-140/059 K147 I
RF2C-140/059 K097 I
RF2C-146/062 K124 I
RF2C-160/062 K117 I
RF2C-180/052 K000 I
RF2C-140/059 K147
RF2C-140/059 K097
RF2C-146/062 K124
RF2C-160/062 K117
RF2C-180/052 K000





Product Drawing

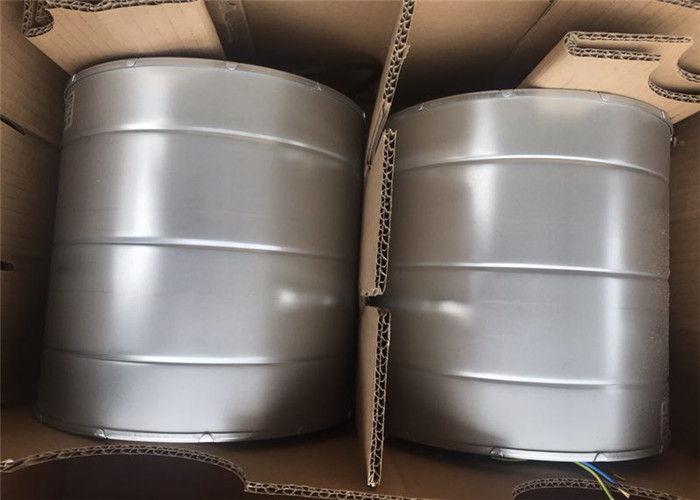

Packaging & Delivery
