Product Details:
Payment & Shipping Terms:
|
| Model: | D2E146-AP47-22 | Code: | - |
|---|---|---|---|
| Weight: | 5 Kg | Brand: | EBMPAPST |
| Condition: | NEW ORIGINAL | Type: | Centrifugal Fan |
| High Light: | vfd frequency converter,variable frequency drive inverter |
||

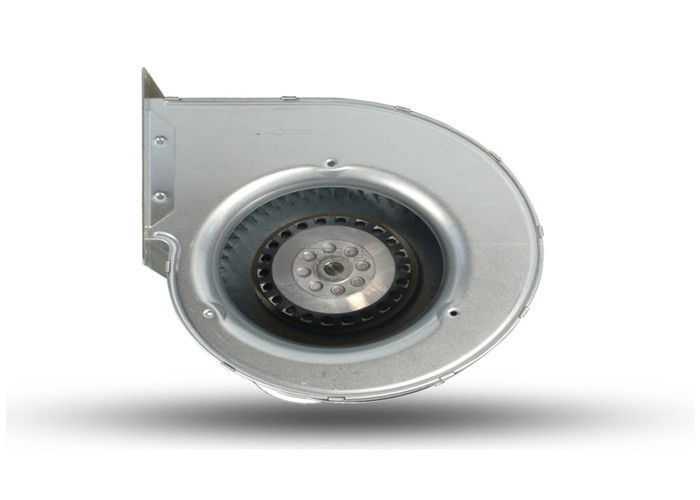

EBMPAPST Centrifugal Fan D2E146-AP47-22 230V 400VDB Inverter Cooling Fan NEW
Description

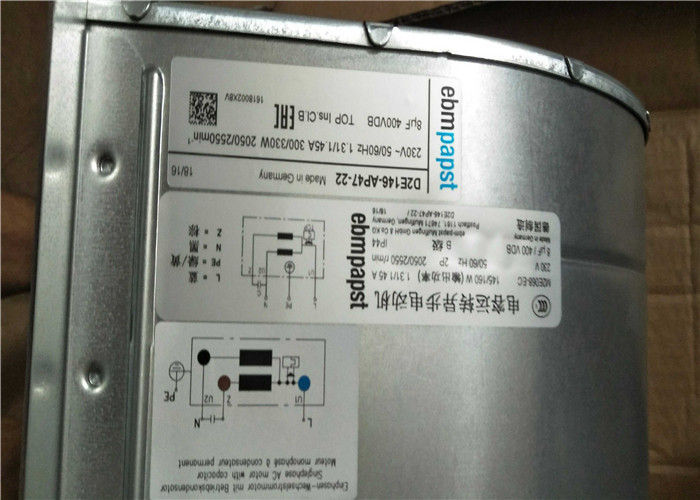

230V~50/60Hz 1.31/1.45A 300/330W
2050/2550MIN 8UF 400VDB
Technical description
| Weight | 4.4 kg |
| Motor size | 68 |
| Size | 146 mm |
| Rotor surface | Unpainted |
| Impeller material | Sheet steel, galvanized |
| Housing material | Sheet steel, galvanized |
| Motor suspension | Motor mounted with brackets on one side |
| Direction of rotation | Counterclockwise, viewed toward rotor |
| Degree of protection | IP44 / installation- and position-dependent |
| Insulation class | "B" |
| Moisture (F) / Environmental (H) protection class | H0 - dry environment |
| Max. permitted ambient temp. for motor (transport/storage) | + 80 °C |
| Min. permitted ambient temp. for motor (transport/storage) | - 40 °C |
| Installation position | Any |
| Condensation drainage holes | None |
| Mode | S1 |
| Motor bearing | Ball bearing |
| Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) | < 0,75 mA |
| Motor protection | Thermal overload protector (TOP) internally connected |
| with cable | Axial |
| Protection class | I (with customer connection of protective earth) |
| Approval | CCC / EAC |
Models of D2E097 Series:
D2E146-AP47-02
D2E097-BI56-02
D2E097-BI56-83
D2E097-BI56-E7
D2E097-BI56-E9
Spare for:
ACS800-104-0170-3,
ACS800-104-0210-3,
ACS800-104-0210-5,
ACS800-104-0210-7,
ACS800-104-0260-3,
ACS800-104-0260-5,
ACS800-104-0260-7,
ACS800-104-0320-3,
ACS800-104-0320-5,
ACS800-104-0320-7,
ACS800-104-0390-3,
ACS800-104-0400-5,
ACS800-104-0400-7,
ACS800-104-0440-7,
ACS800-104-0460-5,
ACS800-104-0510-3,
ACS800-104-0580-7,
ACS800-104-0610-5.
Features:
Description of Centrifugal fans
Centrifugal fans from ebm-papst are available with forward or backward curved blades. The
housing, while centrifugal fans are shipped without scrolls.
Others:
RF2C-140/059 K147 I
RF2C-140/059 K097 I
RF2C-146/062 K124 I
RF2C-160/062 K117 I
RF2C-180/052 K000 I
RF2C-140/059 K147
RF2C-140/059 K097
RF2C-146/062 K124
RF2C-160/062 K117
RF2C-180/052 K000
Product Drawing
Packaging & Delivery
Packaging Details
Cartons
Delivery Time
Whithin 3-5 days
