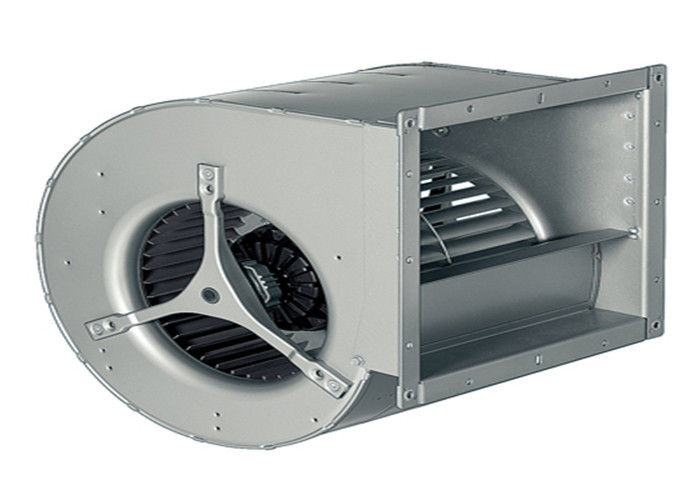

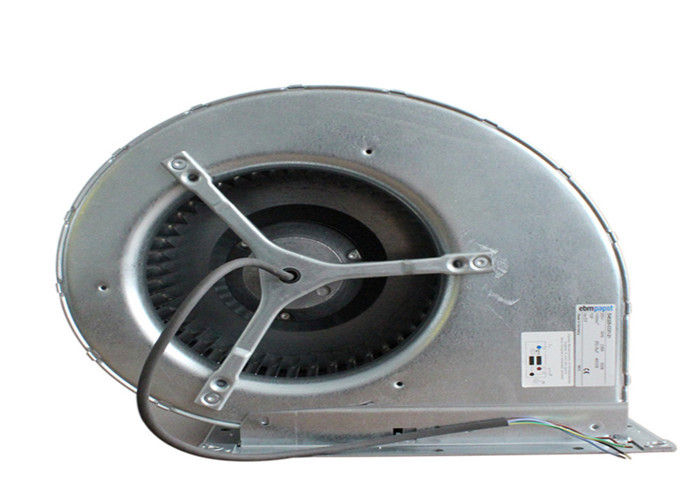

EBMPAPST Leadwires Blower D4E180-CA02-36 centrifugal fan 380/495W; 1250/1280RPM

Large Image :  EBMPAPST Leadwires Blower D4E180-CA02-36 centrifugal fan 380/495W; 1250/1280RPM

Product Details:

Place of Origin: GERMANY
Brand Name: EBMPAPST
Certification: CE
Model Number: D4E180-CA02-36

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5 work days
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Model: D4E180-CA02-36 Code: -
Weight: 5 Kg Brand: EBMPAPST
Condition: NEW ORIGINAL Type: Centrifugal Fan
High Light:

variable frequency converter

,

variable frequency drive inverter

EBMPAPST Leadwires Blower D4E180-CA02-36 centrifugal fan 380/495W; 1250/1280RPM





Description



D4E180-CA02-36 model is centrifugal type of motor fans. They have forward-curved blades, dual inlet and casting with large flange. Material of housing is hot-galvanised sheet steel. Counter-clockwise and seen on rotor direction of rotation. Can be suited to any mounting position. Model has axial cable exit, ball bearings and insulation class B.


Technical characteristics:


Type of motor: M4E068-LA.
Number of phases: one.
Voltage (nominal): 230V.
Nominal frequency: 50-60 Hz.
Size: 180mm.
Data definition: RFA.
Standards: UL, CE.
Speed (min): 1250, 1170, 1280.
Power input: 380W, 540W, 295W.
Current: 1,68A; 2,4A; 2,16A.
Capacitor of motor: 10 μF.
Capacitor voltage: 400VDB.
Ambient temperature(maximum): 30 - 60 °C.
Leackage current: < 0,75mA.


Air Flow 665 CFM
Bearing Type Ball
Blower Type 2 Inlet
Configuration Scroll
Current Rating 2.16 A
Dimensions 7.1 (180)In. (mm)
Frequency 50/60 Hz
Material Metal
Power Rating 380/495 W
Rotation CCW
Series D4E180 Series
Size 7.1 (180) In. (mm)
Speed 1250/1280 RPM
Static Pressure 0 Pa
Temperature, Operating, Maximum 60/65 C
Temperature, Operating, Minimum -25/-25 C
Termination Leadwires
Voltage Rating 230 VAC
Weight 10.24 kg





Spare for:



ACS800-104-0170-3,

ACS800-104-0210-3,

ACS800-104-0210-5,

ACS800-104-0210-7,

ACS800-104-0260-3,

ACS800-104-0260-5,

ACS800-104-0260-7,

ACS800-104-0320-3,

ACS800-104-0320-5,

ACS800-104-0320-7,

ACS800-104-0390-3,

ACS800-104-0400-5,

ACS800-104-0400-7,

ACS800-104-0440-7,

ACS800-104-0460-5,

ACS800-104-0510-3,

ACS800-104-0580-7,

ACS800-104-0610-5.





Features:

  • AC Dual Inlet Forward Curved Centrifugal Blower
  • Via a Bracket, the Integrated External-Rotor Motor Is Mounted on One Side of the Housing
  • Housing and Impeller of Galvanized Sheet-Steel
  • Forward Curved Impellers Are Directly Press-Fitted onto the Rotor of the External-Rotor Motor
  • Direction of Rotation Is CW as Seen From Suction Side
  • Insulation Class “B”
  • Maintenance-Free Ball Bearings



Description of Centrifugal fans



Centrifugal fans from ebm-papst are available with forward or backward curved blades. The

outstanding feature of the external rotor motors is their compact, flat design, which results from
integrating the external rotor motor into the impeller. "Blowers" refers to devices with scroll

housing, while centrifugal fans are shipped without scrolls.




Similiar Centrifugal fans for ABB Variable Frequency Inverter

Part no : D2D160- BE02-11 64650424
Part no : D2D160-BE02-11
Part no : D2D160-BE02-12
Part no : D2D160-BE02-12 68281334
Part no : D2D160-BE02-14
Part no : D2D133-DB02-06
Part no : D2D146-AA28-28
Part no : D2E133-AM35-B4
Part no : D2E097-CB01-02
Part no : D2E133-AM47-01
Part no : D2E133-CI33-56
Part no : D2E133-DM47-01
Part no : D2E146-AP43-22
Part no : D2E146-AP47-22
Part no : D2E160-AB01-06
Part no : D2E160-FI01-01
Part no : D2E146-HR93-01
Part no : D2E097-BK66-02
Part no : D2E097-BK66-48
Part no : D2E097-CH85-02
Part no : D2E097-CH85-48
Part no : D2E133-DM47-23
Part no : D2E146-AP43-02
Part no : D2E146-AP47-02
Part no : D4E225-CC01-02
Part no : D4E225-CC01-30
Part no : D4E225-CC01-39
Part no : D2E140-HR97-07
Part no : D2E146-KA45-01
Part no : D2E146-KB27-01
Part no : D2E146-HR93-03
Part no : D2E146-HS97-03
Part no : D2E160-FK11-02
Part no : D4E146-LV19-14
Part no : D4D180-CB01-02
art no : D4D200-CA01-02
Part no : D4D225-FH02-01
Part no : D4D225-GH02-01
Part no : D4E160-DA01-02
Part no : D4E160-EG06-05
Part no : D4E160-FH12-05
Part no : D4E180-BA02-02
Part no : D4E180-CA02-02
Part no : D4E200-CA02-02
Part no : D4E225-BC01-02
Part no : D4E225-DH01-01
Part no : D4E225-EH01-01
Part no : D6E225-FB07-02




Others:


RF2C-140/059 K147 SF
RF2C-140/059 K097 SF
RF2C-146/062 K124 SF
RF2C-160/062 K117 SF

RF2C-140/059 K147 I
RF2C-140/059 K097 I
RF2C-146/062 K124 I
RF2C-160/062 K117 I
RF2C-180/052 K000 I
RF2C-140/059 K147
RF2C-140/059 K097
RF2C-146/062 K124
RF2C-160/062 K117
RF2C-180/052 K000





Product Drawing







Packaging & Delivery





Packaging Details
Cartons




Delivery Time
Whithin 3-5 days
