OMRON R88D-KN20H-ML2 AC Servodriver , MECHATROLINK-II , Three Phase 200 VAC , 2kW

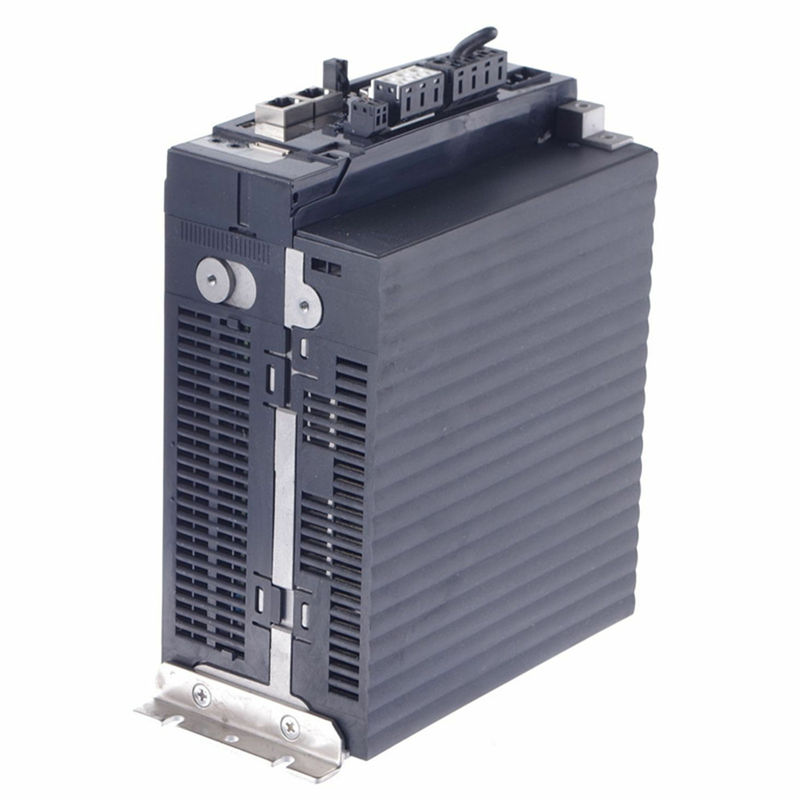

: Large Image : OMRON R88D-KN20H-ML2 AC Servodriver , MECHATROLINK-II , Three Phase 200 VAC , 2kW

Product Details:

Place of Origin:	China
Brand Name:	OMRON
Certification:	CE
Model Number:	R88D-KN20H-ML2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	OMRON	Model:	R88D-KN20H-ML2
Origin:	China
High Light:	ac servo motor , electric servo motor

Brand:

OMRON

Model:

R88D-KN20H-ML2

Origin:

China

High Light:

ac servo motor

electric servo motor

OMRON R88D-KN20H-ML2 AC Servodriver , MECHATROLINK-II , Three Phase 200 VAC , 2kW

General Specifications:

Item			Specifications
Ambient operating temperature and operating humidity			0 to +55C, 85% max. (with no condensation)
Storage ambient temperature and humidity			-20 to +65C, 85% max. (with no condensation)
Operating and storage atmosphere			No corrosive gases
Vibration resistance			10 to 60 Hz and at an acceleration of 5.88 m/s² or less (Not to be run continuously at the resonance point)
Insulation resistance			Between power supply terminal/power terminal and FG terminal: 0.5 MΩ min. (at 500 VDC Megger)
Dielectric strength			Between power supply/power line terminals and FG terminal: 1,500 VAC for 1 min at 50/60 Hz
Protective structure			Built into panel
International standard	EC directives	EMC directive	EN55011, EN61000-6-2, IEC61800-3
		Low voltage directive	EN61800-5-1
		Machinery directives	EN954-1 (Cat.3), EN ISO 13849-1: 2008 (PLc,d), ISO 13849-1: 2006 (PLc,d), EN61508 (SIL2), EN62061 (SIL2), EN61800-5-2 (STO), IEC61326-3-1 (SIL2)
	UL standards		UL508C
	CSA standards		CSA C22.2 No.14
	Korean Radio Regulations (KC)		Certified

Note: 1. The above items reflect individual evaluation testing. The results may differ under compound conditions.
Note: 2. Always disconnect all connections to the Servo Drive before you perform insulation resistance tests on it. If you
perform an insulation resistance test while the Servo Drive is connected, the Servo Drive may be damaged.
Never perform dielectric strength tests on the Servo Drive. Failure to follow this precaution may result in
damaging internal elements.
Note: 3. Some Servo Drive parts will require maintenance. For details, refer to the G5 series USER'S MANUAL.
Confirm the Manual No. that is listed in Related Manuals.

Servo Driver with 200 VAC Input Power
for Single-phase/Three-phase input type

Item			R88D- KN01H-ML2	R88D- KN02H-ML2	R88D- KN04H-ML2	R88D- KN08H-ML2	R88D- KN10H-ML2	R88D- KN15H-ML2
Continuous output current (rms)			1.2 A	1.6 A	2.6 A	4.1 A	5.9 A	9.4 A
Input power supply	Main circuit	Power supply capacity	0.5 KVA	0.5 KVA	0.9 KVA	1.3 KVA	1.8 KVA	2.3 KVA
		Power supply voltage	Single-phase or Three-phase 200 to 240 VAC (170 to 264 V), 50/60 Hz
		Rated current	1.6/0.9 A *1	2.4/1.3 A *1	4.1/2.4 A *1	6.6/3.6 A *1	9.1/5.2 A *1	14.2/8.1 A *1
		*Heat value 2**	14.3/13.7W *1	23/19 W *1	33/24 W *1	30/35.5 W *1	57/49 W *1	104/93 W *1
	Control circuit	Power supply voltage	Single-phase 200 to 240 VAC (170 to 264 V), 50/60 Hz
	Control circuit	*Heat value 2**	4 W	4 W	4 W	4 W	7 W	7 W
Weight			Approx. 0.8 kg	Approx. 0.8 kg	Approx. 1.1 kg	Approx. 1.6 kg	Approx. 1.8 kg	Approx. 1.8 kg
Maximum applicable motor capacity			100 W	200 W	400 W	750 W	1 kW	1.5 kW
Applicable Servo- motors (R88M-)	3,000 r/min Servomotors	[INC]	K05030H K10030H	K20030H	K40030H	K75030H	-	K1K030H K1K530H
	3,000 r/min Servomotors	[ABS]	K05030T K10030T	K20030T	K40030T	K75030T	-	K1K030T K1K530T
	2,000 r/min Servomotors	[INC]	-	-	-	-	K1K020H	K1K520H
	2,000 r/min Servomotors	[ABS]	-	-	-	-	K1K020T	K1K520T
	1,000 r/min Servomotors	[INC]	-	-	-	-	-	K90010H
	1,000 r/min Servomotors	[ABS]	-	-	-	-	-	K90010T

Servo Driver with 200 VAC Input Power
for Three-phase input type

Item			R88D-KN20H-ML2	R88D-KN30H-ML2	R88D-KN50H-ML2
Continuous output current (rms)			13.4 A	18.7 A	33.0 A
Input power supply	Main circuit	Power supply capacity	3.3 KVA	4.5 KVA	7.5 KVA
		Power supply voltage	Three-phase 200 to 230 VAC (170 to 253 V), 50/60 Hz
		Rated current	11.8 A	15.1 A	21.6 A
		*Heat value 1**	139 W	108 W	328 W
	Control circuit	Power supply voltage	Single-phase 200 to 230 VAC (170 to 253 V), 50/60 Hz
	Control circuit	*Heat value 1**	10 W	13 W	13 W
Weight			Approx. 2.7 kg	Approx. 4.8 kg	Approx. 4.8 kg
Maximum applicable motor capacity			2 kW	3 kW	5 kW
Applicable Servomotors (R88M-)	3,000 r/min Servomotors	[INC]	K2K030H	K3K030H	K4K030H K5K030H
	3,000 r/min Servomotors	[ABS]	K2K030T	K3K030T	K4K030T K5K030T
	2,000 r/min Servomotors	[INC]	K2K020H	K3K020H	K4K020H K5K020H
	2,000 r/min Servomotors	[ABS]	K2K020T	K3K020T	K4K020T K5K020T
	1,000 r/min Servomotors	[INC]	-	K2K010H	K3K010H
	1,000 r/min Servomotors	[ABS]	-	K2K010T	K3K010T

Similar Model Products:

Specifications		Model
Power Model Supply Voltage	Applicable Servomotor Capacity	Model
Single-phase 100 VAC	50 W	R88D-KNA5L-ML2
	100 W	R88D-KN01L-ML2
	200 W	R88D-KN02L-ML2
	400 W	R88D-KN04L-ML2
Single-phase/three-phase 200 VAC	100 W	R88D-KN01H-ML2
	200 W	R88D-KN02H-ML2
	400 W	R88D-KN04H-ML2
	750 W	R88D-KN08H-ML2
	1 kW	R88D-KN10H-ML2
	1.5 kW	R88D-KN15H-ML2
Three-phase 200 VAC	2 kW	R88D-KN20H-ML2
	3 kW	R88D-KN30H-ML2
	5 kW	R88D-KN50H-ML2
Three-phase 400 VAC	600 W	R88D-KN06F-ML2
	1 kW	R88D-KN10F-ML2
	1.5 kW	R88D-KN15F-ML2
	2 kW	R88D-KN20F-ML2
	3 kW	R88D-KN30F-ML2
	5 kW	R88D-KN50F-ML2
