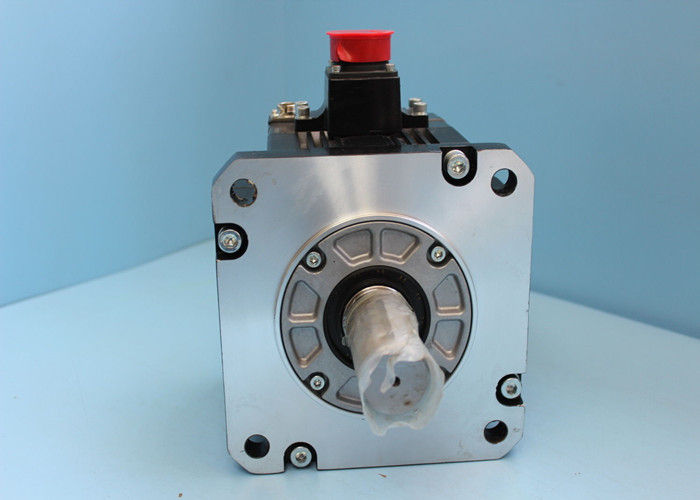

MITSUBISHI Output 2KW Industrial Electric motor HG-SR202G1 3AC Servo Motor

Specifications:

HG-SR202G1

Output :2.0 KW

Maximum torque :28.6 Nm

Rated Speed :2000 1/min

Max speed :3000 1/min

Rotor inertia Standard:0.00468-0.00565 kg.m²

Rated Current :9.6 A

Max. Current :31 A

Voltage :200 V

With Gear

Related items

HG-SR202B
HG-SR202
HG-SR202K
HG-SR202BJ
HG-SR202BJK
HG-SR202JK
HG-SR202BK
HG-SR202BG1
HG-SR202BG1H

HG-SR Series AC servo motor

HG-SR52

HG-SR102

HG-SR152

HG-SR202

HG-SR352

HG-SR502

HG-SR702

Description

The MELSERVO MR-J4 series of servo amplifiers and the associated positioning units, simple motion modules and high-end motion control systems from Mitsubishi Electric enable machine builders and end customers to increase production safety and improve productivity.

The MR-J4 amplifier series has been developed for the automation requirements of tomorrow. Mitsubishi Electric has incorporated numerous innovative and user-friendly functions to minimise the time-consuming and elaborate matching of mechanical and electronic systems.

The absolute encoder which is fitted as standard has a resolution of 22 bits. This corresponds to more than 4 million pulses/revolution. The result is excellent true-running characteristics and a maximum positioning accuracy and processing speed which more than satisfy the performance requirements of modern high-end machines.

Highlights

* Single, dual and triple-axis amplifiers for improved economy, energy efficiency and cabinet space

* Operation of rotary motors, linear motors and direct drive motors with a single unit

* Safety at all times – STO (Safe Torque Off) and SS1 (Safe Stop 1) in accordance with EN 61800-5-2. SS2/SOS/SLS/SBC and SSM options available

Flexible motor selection

Another highlight of functionality and flexibility is the possibility of connecting different motors to the MR-J4 amplifier. The servo amplifier can be conveniently and easily used with rotary motors, linear motors and also direct drive motors.

User-friendly software

The MR Configurator2 programming tool allows convenient commissioning and diagnostics. Calibration, monitoring, diagnostics, reading and writing of parameters and test operation can be carried out easily on a standard PC. MR Configurator2 ensures a stable machine system, optimum control and short set-up times.


MR-J2S-10A/B + HC-KFS13/MFS13/UFS13
MR-J2S-20A + HC-KFS23/MFS23/UFS23
MR-J2S-40A + HC-KFS43/MFS43/UFS43
MR-J2S-60A + HC-SFS52
MR-J2S-70A + HC-KFS73/MFS73/UFS73
MR-J2S-100A + HC-SFS102
MR-J2S-200A + HC-SFS152
MR-J2S-350A + HC-SFS352
MR-J2S-500A + HC-SFS502
MR-J2S-700A + HC-SFS702
MR-J3-10A + HF-KP13/MP13
MR-J3-20A + HF-KP23/MP23
MR-J3-40A + HF-KP43
MR-J3-60A + HF-SP51/SP52
MR-J3-70A + HF-KP73/MP73
MR-J3-100A + HF-SP102
MR-J3-200A + HF-SP121/SP152/SP201
MR-J3-350A + HF-SP352
MR-J3-500A + HF-SP502
MR-J3-700A + HF-SP702

HC-KFS13G1 - Mitsubishi - Motors-AC Servo
HC-KFS13G1D - Mitsubishi - Motors-AC Servo
HC-KFS13G1K - Mitsubishi - Motors-AC Servo
HC-KFS13G2 - Mitsubishi - Motors-AC Servo
HC-KFS13G2D - Mitsubishi - Motors-AC Servo
HC-KFS13G2K - Mitsubishi - Motors-AC Servo

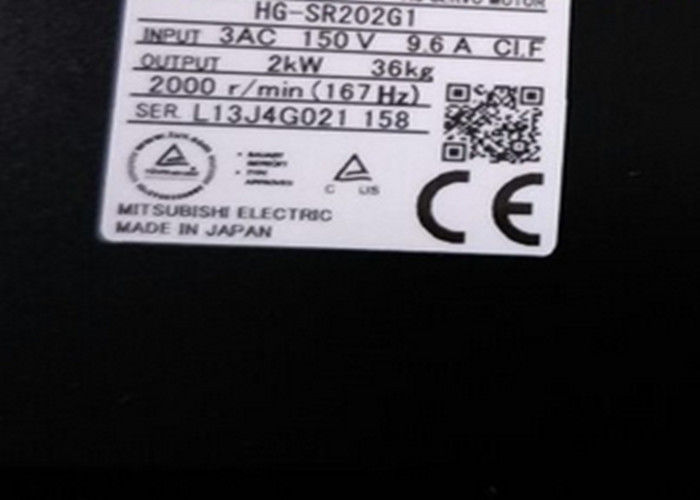

Picture & Lable
