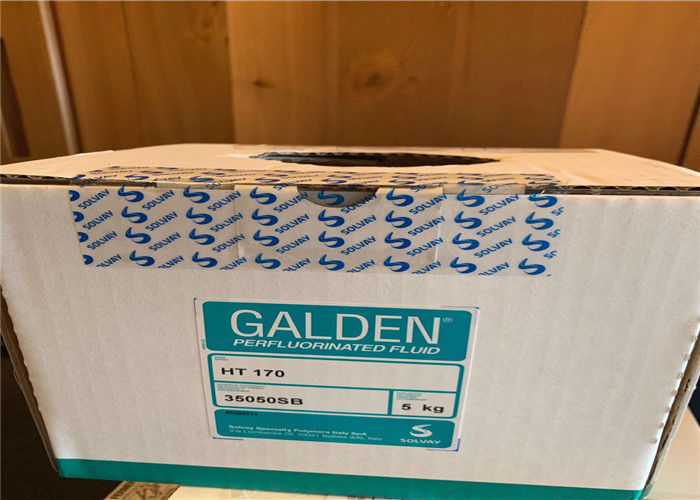

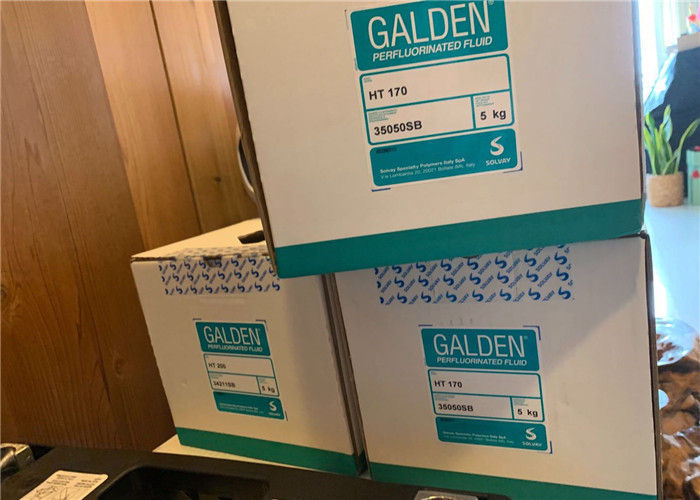

SOLVAY SOLEXIS Galden HT170 perfluoropolyther fluids Bolling Point:170℃ 5Kg /Bottle
Specification:
Brand: Solvey Galden
Model: HT170
Place Of Origin: Itlay
Weight: 5KG
Bolling Point: 170℃
Pour point: ＜-97
OTHER SUPERIOR PRODUCTS
Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- Fanuc motor A0-
Rosemount transmitter 3051- Yokogawa transmitter EJA-
Contact person: Anna
E-mail: wisdomlongkeji@163.com
Cellphone: +0086-13534205279
Similar Products
HT50
HT90
HT110
HT135
HT175
HT200
HT230
HT270
GALDEN (TM) HT70 Properties
Melting point:-20°C
Boiling point:70°C
Density 1.892 g/mL at 25 °C
refractive index n20/D 1.303
Flash point:>230 °F
Specific Gravity1.73
Water Solubility Difficult to mix in water
Galden HT-170 PFPE heat transfer fluid is a line of dielectric fluids with boiling points ranging from 55° C to 270° C. The excellent dielectric properties of these perfluorinated polyethers (PFPE) and their high chemical stability combined with the capacity to operate at very low as well as elevated temperatures, make them the best heat transfer fluids for the aggressive conditions found in semiconductor, electronic, and solar industries.
Physical property
Physical property Value Unit Method Condition
Specific heat 0.193 JK -30℃
Surface tension 0.018 N/m 25℃
Kinematic viscosity 11.6 cSt -30℃
Kinematic viscosity 1.8 cSt 25℃
Weight average molecular weight 760.0 A.M.U.
Density 1.77 g/㎤ 25℃
Density 1.9 g/㎤ -30℃
Specific heat 0.232 JK 25℃
Thermal property Value Unit Method Condition
Thermal conductivity 0.07 W/mK -30℃
Thermal conductivity 0.065 W/mK 25℃
Boiling point 170.0 ˚C Normal
Electrical property Value Unit Method Condition
Dielectric constant 1.94 25℃
Volume resistivity 1.0E14 Ωcm 25℃
Dielectric strength 40.0 kV 25℃
Other property Value Unit Method Condition
Solubility 14.0 ppm Water
Solubility 26.0 ml·gas/100ml·liq Air
Use temperature -30.0 ~ 160.0 ˚C
Vapor pressure 0.8 Pa 25℃
Pour point -97.0 ˚C
GALDEN (TM) HT70 Chemical Properties,Uses,Production
Uses
High performance lubricant for textile, bearing, and corrosive environment applications.
Uses
perfluoropolymethylisopropylether is used to stabilize emulsions, reduce skin moisture loss, and provide a product with a silky texture.
Chemical Name:GALDEN (TM) HT70
Synonyms Y;FomblinY;GALDEN HT70;GALDEN HT230;GALDENR HT70;GaldenR HT80;FoMblin(R) Y;GALDENR HT230;GaldenR HT170;Fomblin YVAC 3
CBNumber:CB2101484
Molecular Formula:[CF(CF3)CF2O]x(CF2O)y
To our actual knowledge, the information contained herein is accurate as of the date of this document. However, neither Solvay Solexis, Inc. nor any of its affiliates makes any warranty, express or implied, or accepts any liability in connection with this information or its use. This information is for use by technically skilled persons at their own discretion and risk and does not relate to the use of this product in combination with any other substance or any other process. This is not a license under any patent or other proprietary right. The user alone must finally determine suitability of any information or material for any contemplated use, the manner of use and whether any patents are infringed.
