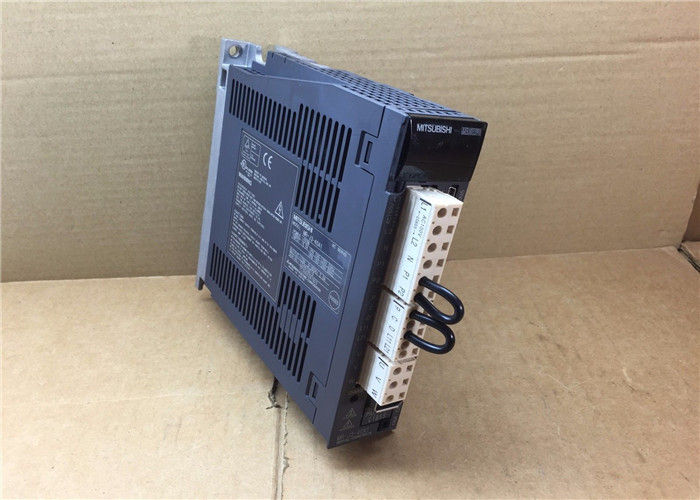

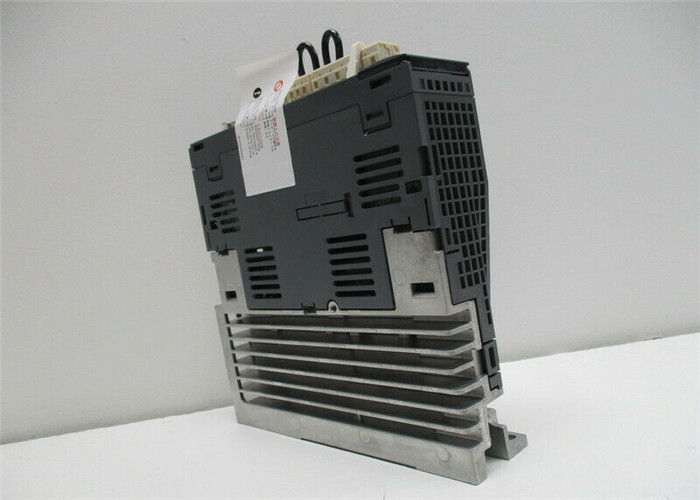

MITSUBISHI Universal pulse interface driver MR-J3-40A1 Industrial AC SERVO Amplifier 400W

Drive unit 200VAC/400VAC level.
MITSUBISHI motor general AC servo amplifier MELSERVO-J3 series.
Need conversion unit MR-J3-CR55K) supporting the use of.
Rated output: 30kw.
Interface type: SSCNET type III fiber communication.
Power specification: three phase AC400V.
High speed serial communication between the SSCNET and the servo amplifier by using the fastest up to 0 MITSUBISHI MR-J3-40A1. 44ms communication cycle,
A fully synchronous control system can be constructed MR-J3-40A1
It is only necessary to insert the special optical fiber into the joint to form SSCNET III network, which greatly reduces the wiring work and reduces the possibility of false wiring.
Due to the adoption of the optical fiber communication, the anti noise ability can be greatly improved and the long distance wiring of 50 meters (maximum 800 meters x 16 axes) can be realized MITSUBISHI MR-J3-40A1.
A servo amplifier to meet the full closed loop control function MR-J3-B-RJ006.
Suitable for mechanical servo optimization and adjustment!
More advanced optimization adjustment function and control function to maximize mechanical properties. The length of the line: 10M MITSUBISHI MR-J3-40A1.
IP level: IP65.
Cable outlet direction: the same side of the motor shaft.
Bending life: high bending life.
Encoder with cable (motor side); for HF-KP/HF-MP series (motor shaft with side extraction). 1 axis servo amplifier.







MR-J3 Servo Amplifiers are available in 100/200/400VAC in up to 55kW and provide high speed, high accuracy solutions, offering true one-touch tuning in single and dual axis formats.



Description of Rotary Servo Motor

MR-J3 compatible motors provide 100/200/400VAC options available in up to 55kW and include seven motor types for easy selection based on required capacity or inertia requirements for the best amplifier and motor sizing possible.
