Product Details:
Payment & Shipping Terms:
|
| Brand: | Mitsubishi | Model Item: | GT2103-PMBDS2 |
|---|---|---|---|
| Plan Of Original: | Japan | Screen Size: | 3.8″ |
| Internal Memory: | 38MB | Resolution: | 480 X 272 Pixels |
| Supply Voltage: | 100-240VAC | Power Supply: | 24 V Dc |
| Keyboard:: | Touch Screen | ||
| High Light: | hmi display touch screen,industrial hmi panels |
||

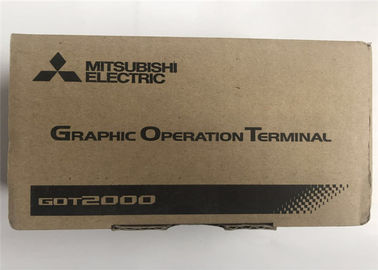

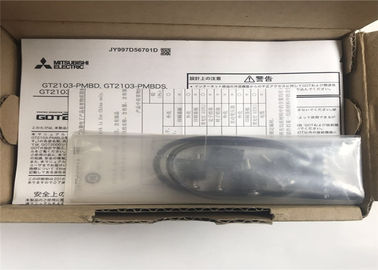

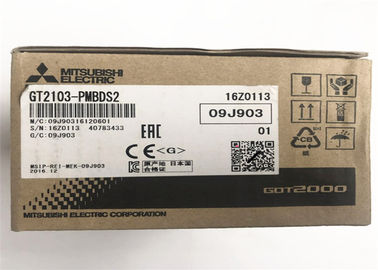

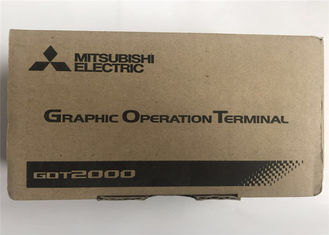

GT2103-PMBDS2 Human Machine Interface Touch Screen Mitsubishi Electric
Specifications HMI GT2103-PMBDS2 Mitsubishi
- Product name: HMI GT2103-PMBDS2 Mitsubishi screen
- Power supply: 24V DC (+ 10%, -15%)
- HMI GT2103-PMBDS2 display type: TFT monochrome display
- Screen size: 3.8 "
- Resolution: 320 x 128 dots
- GT2103-PMBDS2 Mitsubishi size: 89.0 (W) × 35.6 (H)
- ROM memory: 3Mb
- Mitsubishi HMI GT2103-PMBDS2 with integrated communication: RS232, RS-422/485, USB (Device), SD card
- Software installation: GT Works3 Ver. 1.130L
Specifications
| Manufacturer Series | GT21 |
| Product Range | GOT2000 |
| Display Type | LCD |
| Display Size | 3.8 in |
| Display Colour | Monochrome |
| Number of Ports | 4 |
| Port Type | RS232, RS485/RS422, SD Card Interface, USB |
| Onboard Memory | 3 MB |
| Backlighting | Yes |
| Supply Voltage | 24 V dc |
| Depth | 27mm |
| Dimensions | 113 x 74 x 27 mm |
| Maximum Operating Temperature | +55°C |
| IP Rating | IP2X, IP67F |
| Length | 113mm |
| Minimum Operating Temperature | 0°C |
| Width | 74mm |
GT21 Wide model
|
Model |
Screen size |
Display section |
Panel color |
Power |
Remarks |
|
|---|---|---|---|---|---|---|
|
GT2107 |
GT2107-WTBD |
7" WVGA |
TFT color |
Black |
24 V DC |
Wide model |
|
GT2107-WTSD |
Silver |
|||||
GT21 model
|
Model |
Screen size |
Display section |
Panel color |
Power |
Remarks |
|
|---|---|---|---|---|---|---|
|
GT2104 |
GT2104-RTBD |
4.3" |
TFT color |
Black |
24 V DC |
Ethernet, RS-422/485, |
|
GT2103 |
GT2103-PMBD |
3.8" |
TFT Monochrome (black/white) |
Black |
24 V DC |
Ethernet, RS-422/485 |
|
GT2103-PMBDS |
24 V DC |
RS-232, RS-422/485 |
||||
|
GT2103-PMBDS2 |
24 V DC |
RS-232 × 2 channels |
||||
|
GT2103-PMBLS |
5 V DC |
RS-422 (FXCPU connection only) |
||||
