3Phase 1.5KW Mitsubishi Electric FR-A840-00052-2-60 Frequency Inverter

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

3Phase 1.5KW Mitsubishi Electric FR-A840-00052-2-60 Frequency Inverter

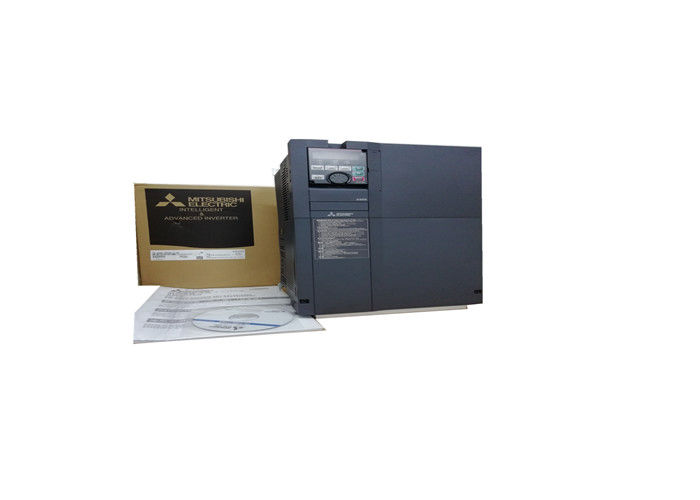

Large Image :  3Phase 1.5KW Mitsubishi Electric FR-A840-00052-2-60 Frequency Inverter

Product Details:

Place of Origin: China
Brand Name: Mitsubishi
Certification: CE
Model Number: FR-A840-00052-2-60

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 380 USD
Packaging Details: New Original Box
Delivery Time: In Stock
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Product Name: Frequency Inverter Model: FR-A840-00052-2-60
Manufacturer: Mitsubishi Electric Series: A800
Brand: Mitsubishi Electric Country Of Origin: Japan
Power: 1.5KW Voltage: 400/415V AC
High Light:

vfd frequency converter

,

variable frequency drive inverter

3Phase 1.5KW Mitsubishi Electric FR-A840-00052-2-60 Frequency Inverter





Detailed Product Description

  • Manufacturer: Mitsubishi Electric

  • FR-A840-00052-2-60

  • Series: A800

  • Power (kW): 1.5

  • Current (Amps) : 4

  • Duty: Constant Torque (moderate and heavy duty)

  • IP Rating: 20

  • Voltage: 400/415V AC

  • Phases: Three Phase

  • Height (mm): 260

  • Width (mm): 150

  • Depth (mm): 140

  • 0.4 - 280kW

  • Backwards compatible with FR-A700 range

  • Applicable to Winding, Crane, Machine Tool and Conveyor systems

  • Closed Loop Vector control up to 400 Hz

  • Real Sensorless Vector control up to 400 Hz

  • Improved Positioning functionality

  • Compatible with SSCNet

  • High Energy Efficiency - Optimum Excitation Control can save an extra 10-12%

  • Built-in temperature sensor for increased efficiency

  • Compliance to safety standards PLd and SIL2 as standard

  • Further safety standards achievable via plug-in options

  • Built in Mitsubishi L-Series PLC offering up to 6K steps program memory

  • Parameters and PLC program can be password locked from reading and/or writing

  • 24VDC can be supplied to the control circuit for access to parameters, communication

  • operation and safety maintenance

  • New programming tool FR-Configurator 2 with function to copy A700 & A500

  • parameters

  • New USB (A type) port added for parameter copying

  • Plug-and-play connection to GOT2000 HMI

  • 5 & 12 segment display (FR-DU08) and multiple-language LCD display (FR-LU08)

  • available

  • Built-in Brake Chopper on models up to 55kW

  • Shipping Weight: 4 Kg



Specifications



Condition New
Weight (kg) 2.8
Our Part Number FRA84000052260
Height (mm) 260
Width (mm) 150
Depth (mm) 140
Manufacturer Mitsubishi
Manufacturer Range FR
Manufacturer Series A800
Supply Voltage 400/415 VAC
Power Rating (kW) 1.5
Current (Amps) 4
IP Rating IP20
No. of Phases Three Phase
Duty Constant Torque





FR-HEL DC Link Chokes (sold separately)





Model Number SLD LD ND HD
FR-A840-01800-1-60 FR-HEL-H110K FR-HEL-H75K - -
FR-A840-02160-1-U6 FR-HEL-H110K FR-HEL-H90K FR-HEL-H75K FR-HEL-H75K
FR-A840-02600-1-U6 FR-HEL-H132K FR-HEL-H110K FR-HEL-H90K FR-HEL-H90K
FR-A840-03250-1-U6 FR-HEL-H160K FR-HEL-H132K FR-HEL-H110K FR-HEL-H110K
FR-A840-03610-1-U6 FR-HEL-H185K FR-HEL-H160K FR-HEL-H132K FR-HEL-H132K
FR-A840-04320-1-U6 FR-HEL-H220K FR-HEL-H185K FR-HEL-H160K FR-HEL-H160K
FR-A840-04810-1-U6 FR-HEL-H250K FR-HEL-H220K FR-HEL-H185K FR-HEL-H185K
FR-A840-05470-1-U6 FR-HEL-H280K FR-HEL-H250K FR-HEL-H220K FR-HEL-H220K
FR-A840-06100-1-U6 FR-HEL-H315K FR-HEL-H280K FR-HEL-H250K FR-HEL-H250K
FR-A840-06830-1-U6 FR-HEL-H355K FR-HEL-H315K FR-HEL-H280K FR-HEL-H280K







FR-A800 Ratings 600V Class





Model Number (*4) AMPS for Duty Horsepower for Duty (NEC) Frame Size Weight (lbs)
SLD LD ND HD SLD LD ND HD
FR-A860-00027-1-N6 2.7 2.5 1.7 1 2 1.5 1 0.5 C 11.7
FR-A860-00061-1-N6 6.1 5.6 4 2.7 5 3 3 2 C 12.8
FR-A860-00090-1-N6 9 8.2 6.1 4 7.5 5 5 3 C 12.8
FR-A860-00170-1-N6 17 16 12 9 15 10 10 7.5 D 15.4
FR-A860-00320-1-N6 32 27 22 16 30 25 20 10 E 19.8
FR-A860-00450-1-N6 45 41 33 24 40 40 30 20 F 37.4
FR-A860-00680-1-60 68 62 55 41 60 60 50 40 H 79.2
FR-A860-01080-1-60 (*1) 108 99 84 63 100 100 75 60 H 90.2
FR-A860-01440-1-60 (*1) 144 131 104 84 150 125 100 75 J 114
FR-A860-01670-1-60 (*1) 167 152 131 104 150 150 125 100 J 114
FR-A860-02430-1-60 (*1) 243 221 152 131 250 200 150 125 J 121
FR-A860-02890-1-60 (*1) 289 255 221 152 300 250 200 150 M 246
FR-A860-03360-1-60 (*1) 336 304 255 202 350 300 250 200 M 253
FR-A860-04420-1-60 (*1) 442 402 304 255 450 400 300 250 N 337
FR-A862-05450-1-60 +
FR-CC2-C355K-60 (*2)
545 496 402 304 550 500 400 300 P+R 810
FR-A862-06470-1-60 +
FR-CC2-C400K-60 (*2)
647 589 496 402 650 600 500 400 Q+S 920
FR-A862-08500-1-60 +
FR-CC2-C560K-60 (*2)
850 773 663 589 850 750 650 600 Q+S 1126

Notes:
1. These drives MUST be used with a DC Link Choke (sold separately).
2. FR-A862 Drives are inverter stage only; use together with FR-CC2-C rectifier stage. Maximum Input and Output Current of FR-CC2 modules is the value shown. COMBINED weight shown.
3. Remove the standard brake resistor (if fitted) for UL type 1. Rating is otherwise NEMA 1.
4. The FR-A860 does not include a built in parameter unit. The FR-DU08 or FR-LU08 is sold separately.







FR-HEL DC Link Chokes (sold separately)





Model Number SLD LD ND HD
FR-A860-01080-1-60 FR-HEL-C75K FR-HEL-C75K - -
FR-A860-01440-1-60 FR-HEL-C90K FR-HEL-C90K FR-HEL-C75K -
FR-A860-01670-1-60 FR-HEL-C110K FR-HEL-C110K FR-HEL-C90K FR-HEL-C75K
FR-A860-02430-1-60 FR-HEL-C132K FR-HEL-C132K FR-HEL-C110K FR-HEL-C90K
FR-A860-02890-1-60 FR-HEL-C185K FR-HEL-C185K FR-HEL-C132K FR-HEL-C110K
FR-A860-03360-1-60 FR-HEL-C220K FR-HEL-C220K FR-HEL-C185K FR-HEL-C185K
FR-A860-04420-1-60 FR-HEL-C280K FR-HEL-C280K FR-HEL-C220K FR-HEL-C185K







Dimensions of REQUIRED DC Link Chokes (sold separately)





Model Number Height - inches (mm) Width - inches (mm) Depth - inches (mm) Weight (lbs)
FR-HEL-75K 13.39 (340) 5.91 (150) 7.87 (200) 37
FR-HEL-90K 13.39 (340) 5.91 (150) 7.87 (200) 42
FR-HEL-110K 15.75 (400) 6.89 (175) 7.87 (200) 44
FR-HEL-H75K 12.60 (320) 5.51 (140) 7.28 (185) 35
FR-HEL-H90K 13.39 (340) 5.91 (150) 7.48 (190) 44
FR-HEL-H110K 13.39 (340) 5.91 (150) 7.68 (195) 48
FR-HEL-H132K 15.94 (405) 6.89 (175) 7.87 (200) 57
FR-HEL-H160K 15.94 (405) 6.89 (175) 8.07 (205) 62
FR-HEL-H185K 15.94 (405) 6.89 (175) 9.45 (240) 64
FR-HEL-H220K 15.94 (405) 6.89 (175) 9.45 (240) 66
FR-HEL-H250K 17.32 (440) 7.48 (190) 9.84 (250) 77
FR-HEL-H280K 17.32 (440) 7.48 (190) 10.04 (255) 84
FR-HEL-H315K 19.5 (495) 8.3 (210) 9.8 (250) 92
FR-HEL-H355K 19.5 (495) 8.3 (210) 9.8 (250) 101
FR-HEL-C75K 12.6 (320) 5.5 (140) 7.3 (185) 35
FR-HEL-C90K 13.3 (340) 5.9 (150) 9.4 (240) 44
FR-HEL-C110K 13.3 (340) 5.9 (150) 9.4 (240) 51
FR-HEL-C132K 15.9 (405) 6.9 (175) 7.7 (195) 53
FR-HEL-C185K 15.9 (405) 6.9 (175) 9.4 (240) 70
FR-HEL-C220K 15.9 (405) 6.9 (175) 9.4 (240) 73
FR-HEL-C280K 17.3 (440) 7.5 (190) 9.8 (250) 88
