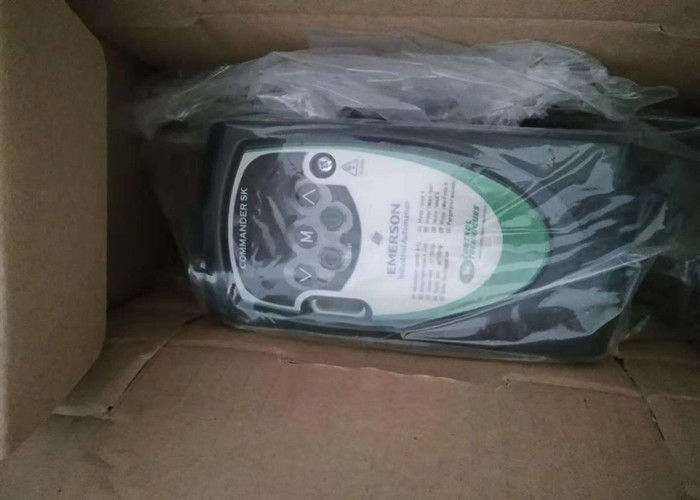

Nidec CONTROL TECHNIQUES Emerson SKA1100025 AC Drives Commander SK Series Inverter Drive
Detailed Product Description
| Model: |
SKA1100025 |
Type: |
AC Inverter DRIVE |
| Voltage: |
200/240 Vac |
Input Frequency Rating: |
48 To 62 Hz |
| Output Current: |
7A |
Horsepower Rating: |
2HP |
| Weight: |
6kg |
Brand: |
Control Techniques |
| High Light: |
electric servo drive, ac servo pack |
Nidec CONTROL TECHNIQUES Emerson SKA1100025 AC Drives Commander SK Series Inverter Drive
Description
Commander SK and Unidrive SP are transitioning to become legacy products in 2015, which means they can be subject to price and lead time changes as volume production reduces.The legacy period is expected to last for two years and will be followed by the maintenance period. When Commander SK and Unidrive SP enter the maintenance period of their lifecycle, volume production of these products will cease, but contractual obligations regarding warranty, service and repairs will continue. The maintenance period is expected to last ten years subject to raw material and component availability. Updates will be issued to customers throughout the lifecycle period. Local sales representatives are always available to answer any customer queries.
Specifications
| Drive Type |
Variable Frequency |
|---|
| Number of Input Phases |
3 |
|---|
| Enclosure Rating |
IP 20 |
|---|
| Supply Voltage |
200/240 V ac |
|---|
| Horsepower Rating |
2 hp |
|---|
| Output Current |
7 A |
|---|
| Operation Mode |
Frequency Control, Vector Control |
|---|
| Input Frequency Rating |
48 to 62 Hz |
|---|
| Mounting Type |
DIN Rail |
|---|
| Number of Output Phases |
3 |
|---|
| Number of Analog Inputs |
2 |
|---|
| Number of Digital Inputs |
4 |
|---|
| Number of Analog Outputs |
1 |
|---|
| Number of Digital Outputs |
1 |
|---|
| Overall Dimensions |
85 x 205 x 156 mm |
|---|
| Operating Temperature Range |
+14 to +104 °F |
|---|
| Standards Met |
CE, EN 60529, IEC 60146-1-1, IEC 61131-2 I/O, IEC 61800-5-1, ISO 14001, ISO 9001, UL, UL 508C & |
|---|
| Weight |
3.1 lb |
|---|
| Agency Listing |
CE, ISO 14001, ISO 9001:2000, N1652, UL, cUL |
|---|
| Dynamic Braking |
Standard - DC Injection Breaking and Dynamic Breaking Transistor Included |
|---|
| Encoder Connection |
Available With Sm-I/O Lite Module |
|---|
| Keypad / Display |
LED Keypad |
|---|
| Number of Digital Outputs / Relays |
2 |
|---|
| PI / PID Controller |
PID Controller |
|---|
| Pulse Train Input Capability |
Yes |
|---|
| Pulse Train Output Capability |
Yes |
|---|
| Remote Keypad |
Ip 65 LED Keypad or Text, Multi-Language LED |
|---|
| Serial Communication Device Net |
Optional With Sm-Devicenet Module |
|---|
| Serial Communication Interbus-S |
Optional With Sm-Interbus Module |
|---|
| Serial Communication Modbus |
Modbus Rtu Rs485 Via Rj106 |
|---|
| Serial Communication Profibus-Dp |
Optional With Sm-Profibus Module |
|---|
| Trade / Brand Name |
Control Techniques |
|---|
| Typical Application |
Fans, General Purpose Open Loop, Pumps |
|---|
| Additional Details |
9 Redefined Drive Configurations;Memory Transfer Stick;PLC Capability |
|---|

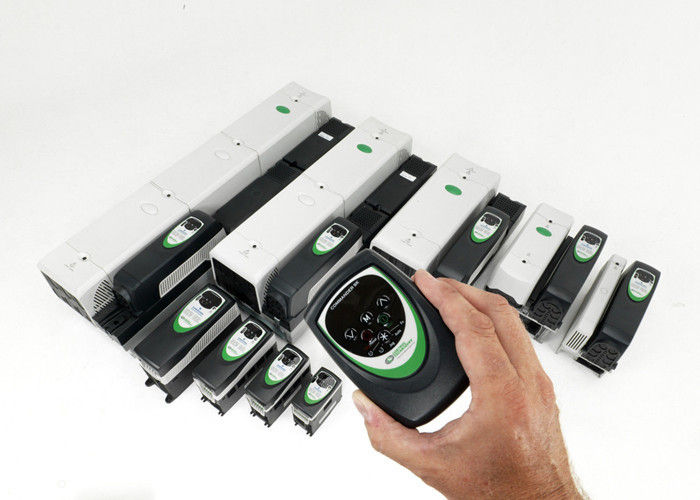

Unidrive M: compatibility with Commander SK and Unidrive SP
Mechanical
• Compatible physical dimensions, weights and surface mount footprint.
• When retrofitting surface mount drives, existing mounting holes can be reused-negating the need for additional drilling. Mounting holes are in the same place or retrofit kits are available.
Electrical
• Power and control wiring adopt the same philosophy as Commander SK and Unidrive SP.
Parameters
• The same menu and parameter structure is adopted by Unidrive M.
• Parameters can be transferred from Unidrive SP to Unidrive M using a Smartcard.
• Unidrive M Connect can be used to transfer parameters from Unidrive SP and Commander SK to Unidrive M.
Software programs
• The SI-Applications Plus option module can compile SyPTPro programs for Unidrive M.
